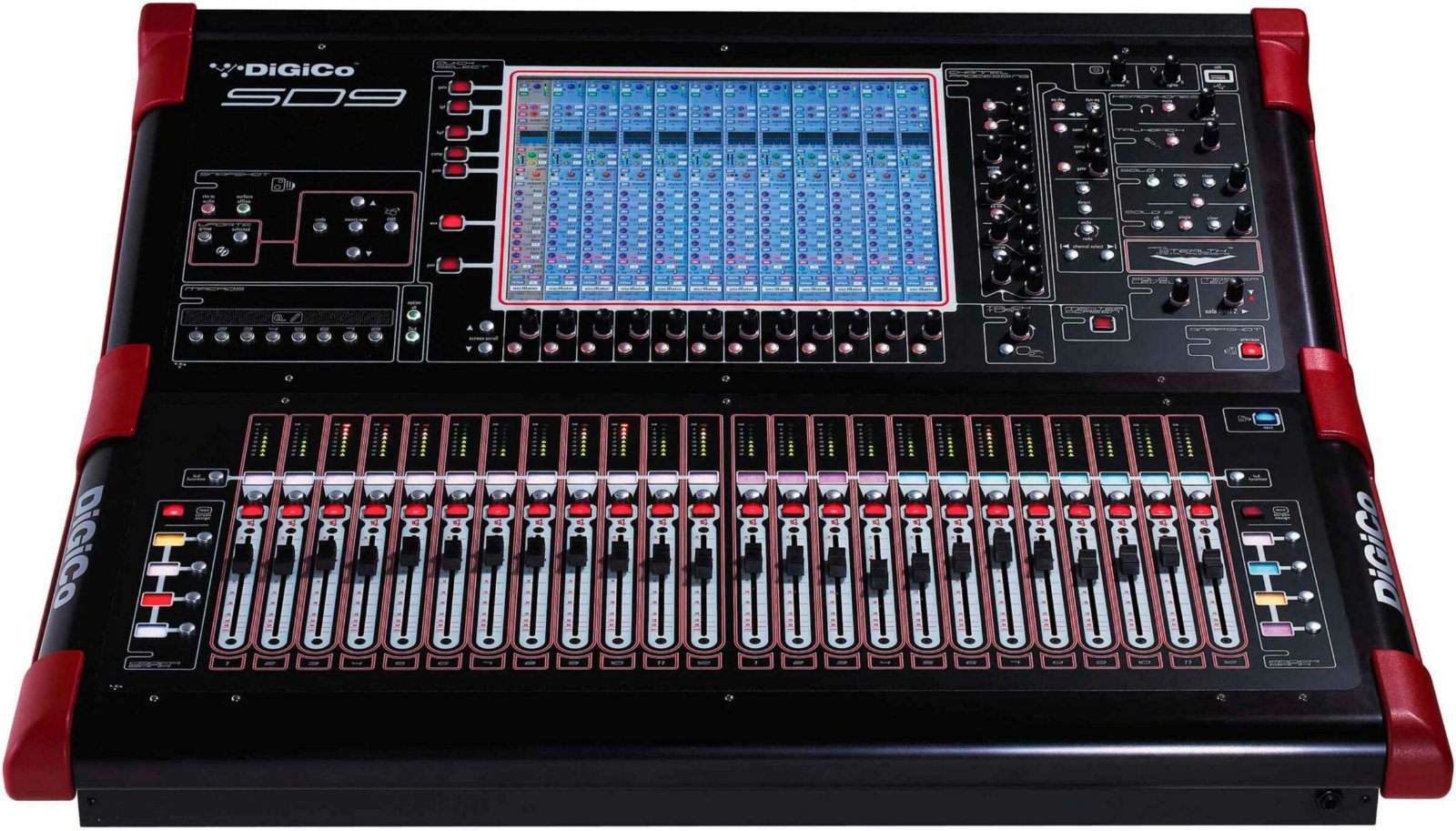

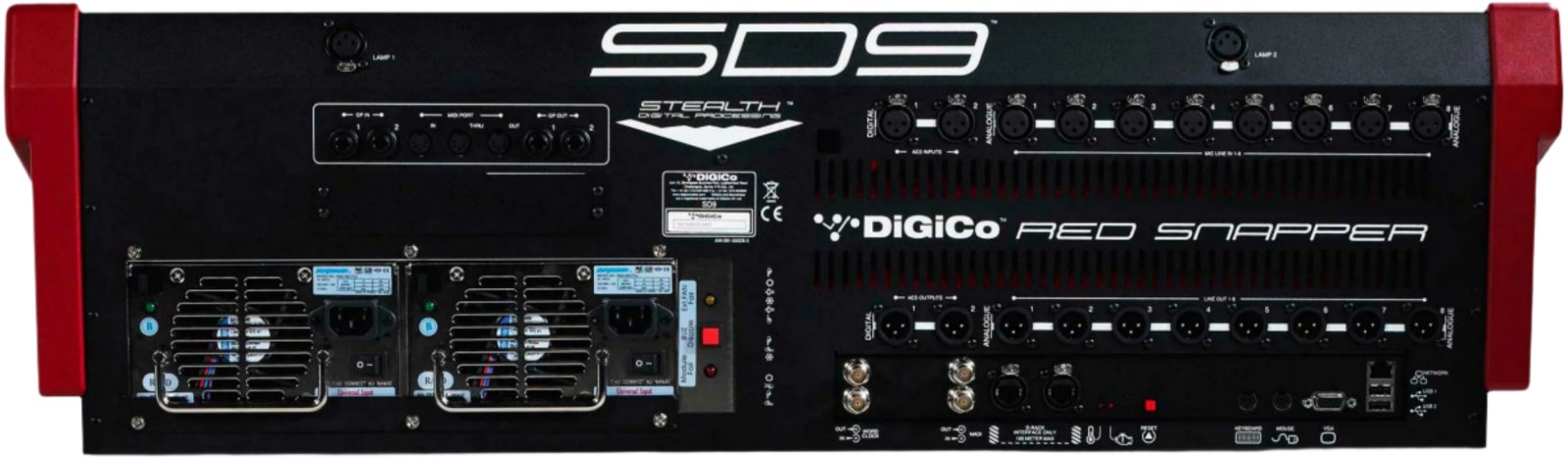

Name: DiGiCo SD9 Digital Mixing Console with HMA Optical Connection
Brand: DiGiCo
SKU: TZ-SD9HMA

Description

Boasting 96 channels at 48kHz/96kHz, the SD9 delivers a wealth of functionality. Standard channel processing (inputs and outputs) includes Channel Delay, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, Dual insert points, DiGiCo’s DYN 1 (Compressor, De-esser or Multi Band Compressor) and DYN 2 (Gate, Compressor or Ducker).

Also onboard are 155 Dynamic EQ processors which can be assigned to any of the input or output channels; 155 Multiband Compressors and 155 DiGiTuBes. All channels deliver the same pure signal path and feature set, so no matter how you set up your console, you never lose any resources. Within the master section are 16 gangable 32 band graphic EQs, 12 stereo effects (selectable from a palette of 33), and 12 control groups (VCAs). Using snapshots, engineers can switch between complete configurations at a touch.

The SD9’s 48 busses are all assignable as groups or auxiliary busses while further configurability comes courtesy of a 12×8 output matrix, dual solo busses, and a Master buss. Unlike all other digital console manufacturers, you don’t lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.

Features:

Input Channels: 96
Aux / Sub-Group Busses: 48
LR/LCR Master Buss
12 x 8 Full Processing Matrix
155 Dynamic Equalizers
48/96kHz Sample Rate

Specifications:

Faders: 24 x 100mm Touch-sensitive, motorised

Fader Range: ∞ to +10dB

Screens: 1 x 15” (38cm) LCD high-resolution touch screen

VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)

Meters: 24 x 8-Segment LED bargraph
Input Channels: 96 Input Channels
48 Aux / Sub-Group Busses
Solo Busses: 2 Stereo Busses
Matrix: 12 x 8 Matrix (additional to busses above)
Control Groups: 12, Selectable for VCA-style, Moving Fader, Mute Group
Graphic EQ: 16 x 32-band, Gain +/- 12dB
Internal FX: 12 Stereo FX Processors
Local I/O: 8 x Mic/Line I/O, 4 x AES/EBU: I/O (Mono)
MADI Interface: In / Out
Optional Optics
MIDI Interface: In / Out / Thru
USB Ports: 3 x USB2
Light Connection: 2 x XLR3 1.2 – 12V
Ext Sync: Word Clock, MADI
Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
GPI: 2 x 1/4” Jack
GPO: 2 x 1/4” Jack
Dimensions: 878mm (w) x 785mm (d) x 262mm (h)
Weight: 36Kg (105Kg with optional flightcase)
Flightcase Dimensions: 1063mm (w) x 1131mm (h) x 472mm (d) (Optional)
Power: 90-264 VAC, 47-63Hz Auto Sensing. 208 watts, 232VA Requirements
Redundancy: Internal PSU x 2 (Optional)
Audio Specifications:

Sample Rate: 48kHz or 96kHz
Processing Delay: 2ms Typical @ 48k (48 Stereo Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @ 96k
Internal Processing: Up to 40-bit, Floating Point
A>D & D>A: 24-bit Converter Bit Depth
Frequency Response: +/- 0.6dB (20Hz – 20kHz)
THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz
Channel Separation: Better Than 90dB (40Hz – 15kHz)
Residual Output: <90dBu Typical
Noise: (20Hz – 20kHz)
Microphone Input: Better Than -126dB Equivalent Noise
Maximum Output Level: +22dBu
Maximum Input Level: +22dBu
Processing Channel Specifications:

Input Channel:

Name: User-Defined / Presets
Channel Selection: Mono / Stereo / Multi
Input Routing: Main & Alternate Input
Analogue Gain: -20 to +60dB
Phase: Normal / Reverse
Digital Trim: -40 to +40dB
Delay: >1 Sec (Coarse & Fine Control)
DiGiTuBe: Drive 0.01 – 50.0
Bias: 0 – 6
LPF: 20 – 20kHz, 24dB/Oct
HPF: 20 – 20kHz, 24dB/Oct
Insert A: (Pre EQ/Dyn) On/Off
Equalisation: 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
Frequency: 20 – 20kHz
Gain: +/- 18dB
Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
Dynamic EQ: On/Off
Threshold: -60 – 0dB
Attack: 500us – 100ms
Release: 10ms – 10s
Ratio: 1:1 – 50:1
