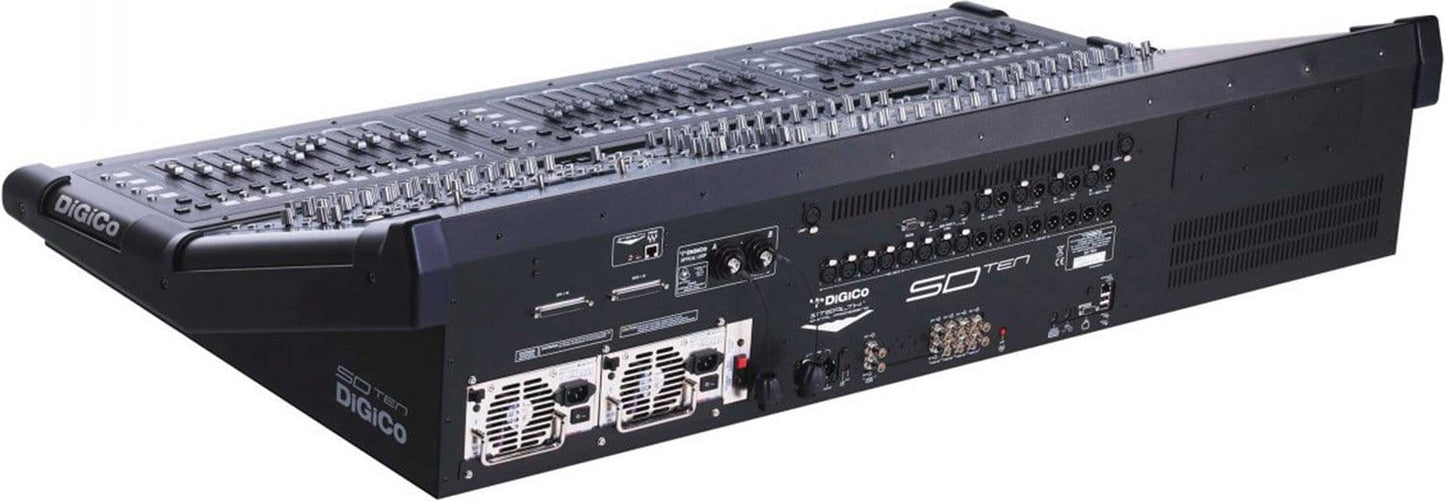

DiGiCo SD10 HMA Optical touring Digital Console
The DiGiCo SD10 is a 144 channel mixing console with 37 physical faders and 1 x 15” LCD high-resolution touchscreen. With Stealth Digital Processing and FPGA technology, the SD10 delivers a wealth of flagship features to meet even the most demanding requirements.
Features:
- 144 Input Channels with full processing
- 64 Aux/Sub-Group busses with full processing
- 24 x 24 Matrix with full processing
- Assignable channel layout
- User programmable macros
- Capable of redundantly mirroring with another SD10 console or an SD-RE
- Redundant PSUs as standard
- Snapshots for seamlessly changing many parameters at once
- Offline software
- iPad control
- Theatre software option
- Broadcast software option
- Compact 24 Input Fader version (SD10-24)
Specifications:
- Sample Rate: 48kHz or 96kHz
- Procesing Delay: 2ms Typical @ 48K (48 Stereo Channels, Stage input Through L-R Buss to Stage Output) 1.1ms @ 96k
- Internal Processing: Up to 40-bit, Floating Point
- A>D & D>A: 24-bit Converter Bit Depth
- Frequency Response: +/- 0.6dB (20Hz – 20kHz)
- THD: <0.05% @ Unity Gain,: 10dB Input @ 1kHz
- Channel Separation: Better Than 90dB: (40Hz-15kHz)
- Residual Output Noise: <90dBu Typical (20Hz-20kHz)
- Microphone Input: Better Than -126dB: Equivalent Noise
- Maximum Output Level: +22dBu
- Maximum Input Level: +22dBu
- Dimensions: 1398mm/*982mm (w) x 818mm (d) x 285mm (h)
- Weight: 60kg/*52kg (175kg/*140kg with optional flightcase)
- Flightcase: 1560mm/*1250mm (w) x 500mm (d) x 1170mm (h) (Optional)
- Power Requirements: 90-264 VAC, 47-63Hz Auto Sensing. 235 watts
- Redundancy: Internal PSU x 2 (Optional)
- Product Code: X-SD10-WS (Standard SD10)
- Product Code: X-SD10-WS-24 (SD10-24, 24 input fader version)
