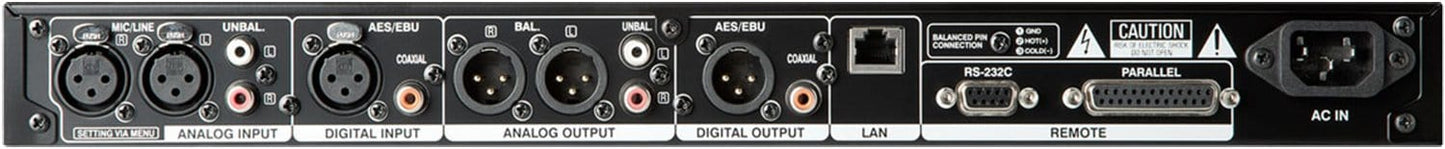

Denon DN-700R Network SD/USB Recorder
Taking its place as Denon Professional’s flagship recording product, the DN-700R Network SD/USB Recorder is designed to meet the needs of the most demanding installations, combining high quality audio recording with extensive network capabilities. With a powerful feature set and using the most reliable solid state recording media, the DN-700R allows AV installation professionals to replace traditional recording devices with superior solid state hardware in the widest range of applications.
Features:
- Records to SD/SDHC and USB media in MP3 and WAV (up to 24-bit/96kHz)
- Dual Record feature (records to two media options simultaneously for primary and backup recording)
- Relay Record feature (continues recording to backup media when primary media is full)
- File Archiving via FTP (Automatic or Timed) with 24/7 record feature
- Web Remote for setup and control with Password Protection
- Independent switchable XLR Mic/Line inputs with +48V Phantom Power
- Timer recording/playback (30 schedules available)
- IP, RS-232c, GPIO, USB keyboard remote control
- Front panel USB keyboard connection
- NTP supported (Network Time Protocol)
- EDL marking & file edit functions (Move, Copy, Combine, and Divide)
- Record monitor (listen the recorded signal while recording)
- Large, bright OLED display
- DMP Mark Editor software included (Windows only)
- Compatible with Denon Professional Product Manager software
- 100-230V switching power supply
- Removable rack kit
Specifications:
- File Format Specifications
- Compatible media: SD/USB memory/USB HDD
- Playable formats, file systems: SD, USB: FAT16/FAT32/HFS+
- Playable WAV Format
- Extension: WAV, AIFF, AIF
- Resolution: 16-bit, 24-bit
- Sampling frequency: 96, 48, 44.1 kHz
- Playable MP3 Format
- Extension: MP3
- Bit rate: 32 – 320 kbps and VBR
- Sampling frequency: 48, 44.1 kHz
- Playable AAC Format
- Extension: M4A
- Compression method: AAC-LC
- Bit rate: 64 – 320 kbps and VBR
- Sampling frequency: 48, 44.1 kHz
- Audio Specifications
- Number of channels: 2 (stereo), 1 (mono)
- Audio frequency characteristics: 20 Hz – 20 kHz (+0.5 dB / –1 dB)
- S/N ratio: More than 89 dB (A-Weighted)
- Total harmonic distortion: Less than 0.01%
- Dynamic range: More than 106 dB (for 24-bit WAV playback)
- Channel separation: Less than –90 dB
- Variable pitch width: –16% – +16%
- Variable trim adjustment width: ±2.0 dB
- INPUT - Balanced Analog IN L/R
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Input level: +4 dBu
- Maximum input level: +24 dBu/+20 dBu/+18 dBu
- Input impedance: 20 kΩ
- INPUT - Unbalanced Analog IN L/R
- Type: RCA terminal
- Input level: –10 dBV
- Maximum input level: +10 dBV/+6 dBV/4 dBV
- Input impedance: 10 kΩ
- INPUT - Unbalanced Digital IN
- Type: RCA terminal
- Input impedance: 75 Ω
- Standard input level: 0.5 Vp-p
- Format IEC-60958(COAXIAL)
- INPUT - Balanced Digital IN
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Input impedance: 110 Ω
- Standard input level: 3.5 Vp-p
- Format: IEC-60958(AES/EBU)
- OUTPUT - Balanced Analog L/R
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Load impedance: Over 600 Ω
- Output level: +4 dBu at 600 Ω load
- Maximum Output level: +24 dBu/+20 dBu/+18 dBu
- OUTPUT - Unbalanced Analog L/R
- Type: RCA terminal
- Load impedance: Over 10 kΩ
- Output level: –10 dBV
- Maximum output level: +10 dBV/+6 dBV/+4 dBV
- OUTPUT - Balanced Digital
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Output impedance: 110 Ω
- Standard output level: 3.0 Vp-p
- Format: IEC-60958(AES/EBU)
- OUTPUT - Unbalanced Digital
- Type: RCA terminal
- Output impedance: 75 Ω
- Standard output level: 0.5 Vp-p
- Format: IEC-60958(COAXIAL)
- OUTPUT - Headphone Out
- 20 mW/32 Ω
- Other
- Maximum storage capacity: Up to 2 TB
- Maximum file size: 2 GB
- Maximum number of files: 2000 files (for 1 folder)
- Maximum number of folders: 1000 folders
- Maximum number of folder hierarchies: 8 (under the root directory)
- Environmental
- Operating temperature: 5 – 35 °C
- Operating humidity: 25 – 85%, no condensation
- Storage temperature: –20 – 60 °C
- General
- Power supply (U.S.A and Canada models): AC 120 V, 60 Hz
- Power Supply (European, U.K and Asia/Pacific models): AC 230 V, 50/60 Hz
- Power consumption: 30W (typical), 0.4W (standby)
- Dimensions (L x W x H): 19" x 13" x 1.74" (483 x 330 x 44 mm)
- Weight: 7 lbs. 14.99 oz (3.6 kg)
