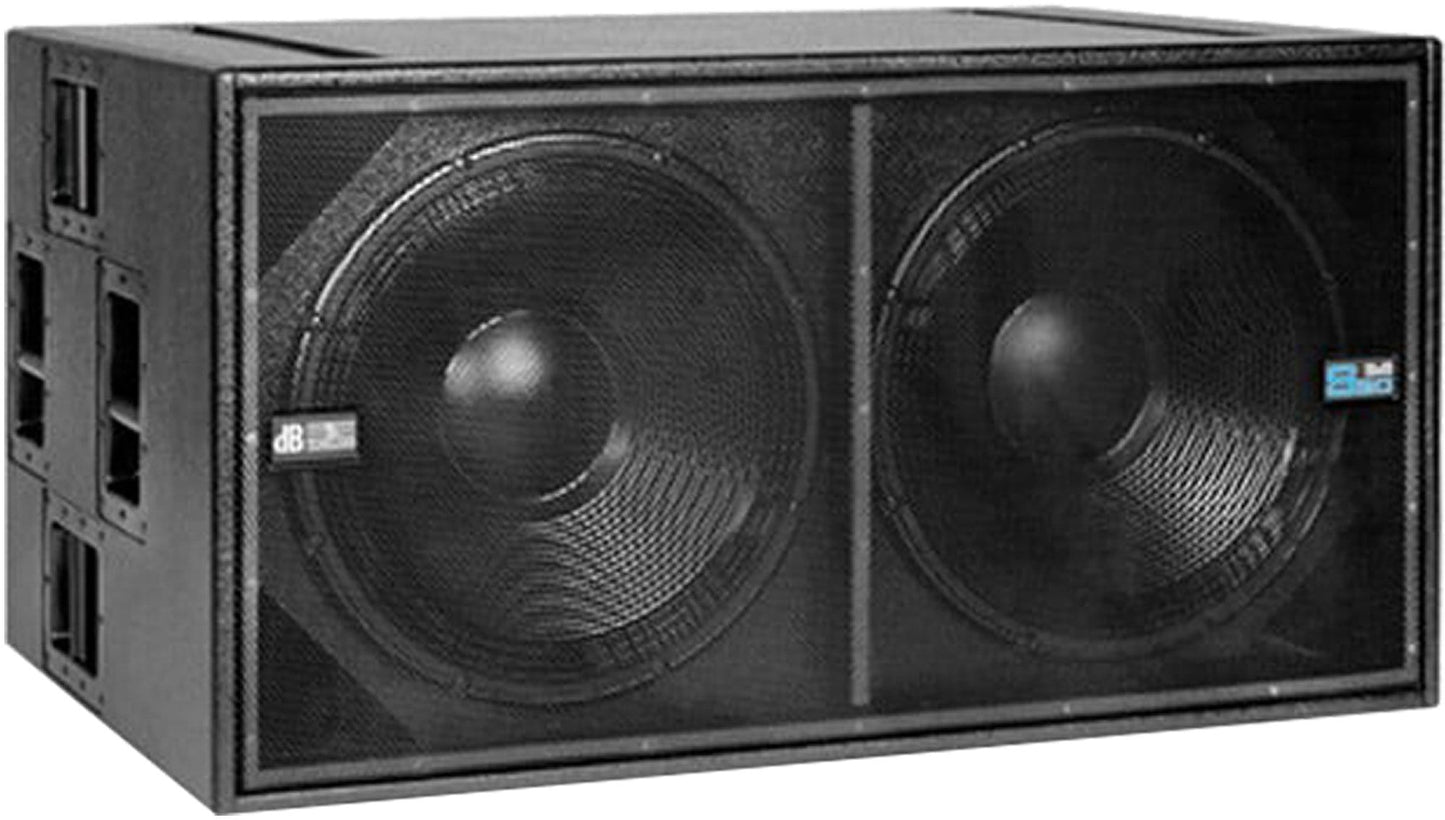

DB Technologies DVA S20DP 2x18-Inch Active Subwoofer

DB Technologies DVA S20DP 2x18-inch Active Subwoofer

Featuring a dual 18” subwoofer pairing in a bass reflex housing, the DVA S20 delivers powerful performance, rendering frequencies as low as 25 hertz assertively and with impressive authority. It is the perfect sub-bass provider for DVA S10/T4 systems and an excellent complement to DVA T4 mid-/high-range units in stacked arrays. Thanks to the integrated Quick-Release-Pins, both DRK-10 and DRK-20 frames can be easily mounted to set up a ground stacked system.

Specifications:

• Technical Data
  • Speaker Type: Active Bassreflex Subwoofer
• Acoustical data
  • Frequency Response (+/- 3dB
  ): 35 - 120 Hz
• Max SPL: 138 dB
• Directivity: Omnidirectional, Cardiod Option with SDD Module
• LF: 2x18"
• Voice Coil LF: 4"
• Amplifier
  • Amp Technology: Digipro®
  • Amp Class: Class D
  • LF Amp: 2000 W RMS
  • Cooling: Convection
• Processor
  • Controller: Analog
  • Limiter: RMS, Peak, Thermal
  • Delay Option: SDD Module
  • Crossover Frequency LF-MF: 90, 120 Hz
  • LF-Xover out slope: 24 dB/Octave
• Mechanics
  • Housing: Multiplex plywood
  • Housing Design: Rectangular
  • Handles: 4x Per Side
  • Accessory: Wheels 100mm, Dust Cover
  • Rigging Points:
    • 2xPick Points on top to fix
    • DRK10/20 rigging frames
  • Width: 1100 mm (44 in)
  • Height: 580 mm (23.2 in)
  • Depth: 720 mm (28.8 in)
  • Weight: 84 kg (185.19 lbs)
