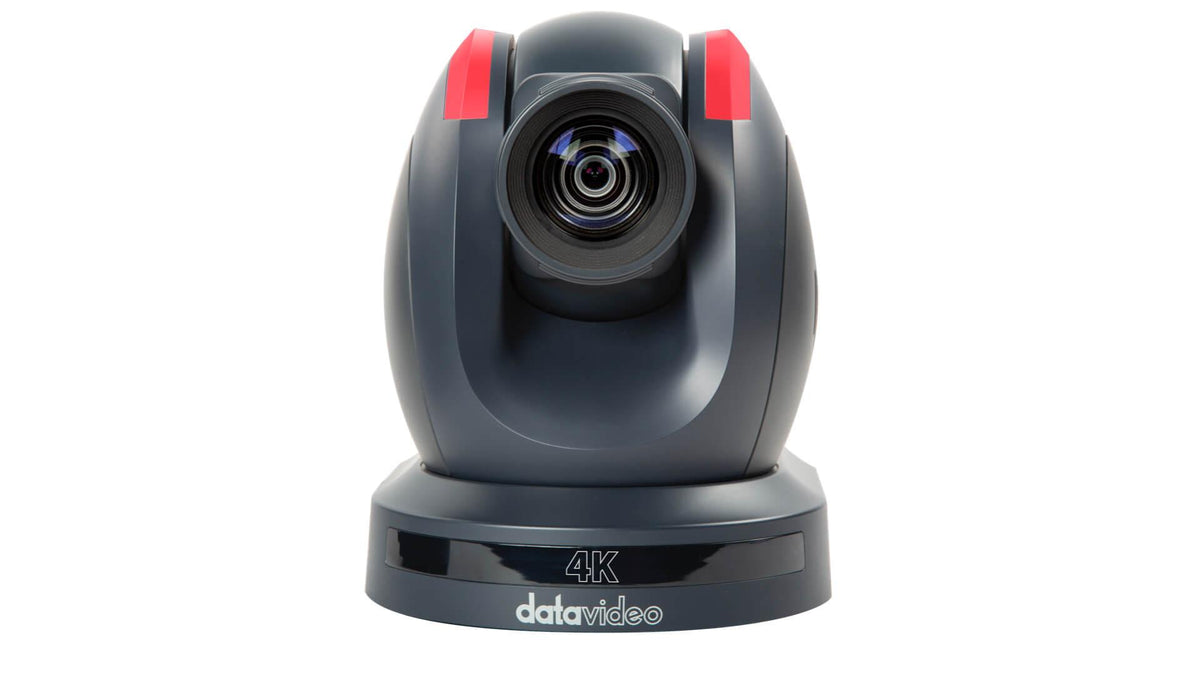

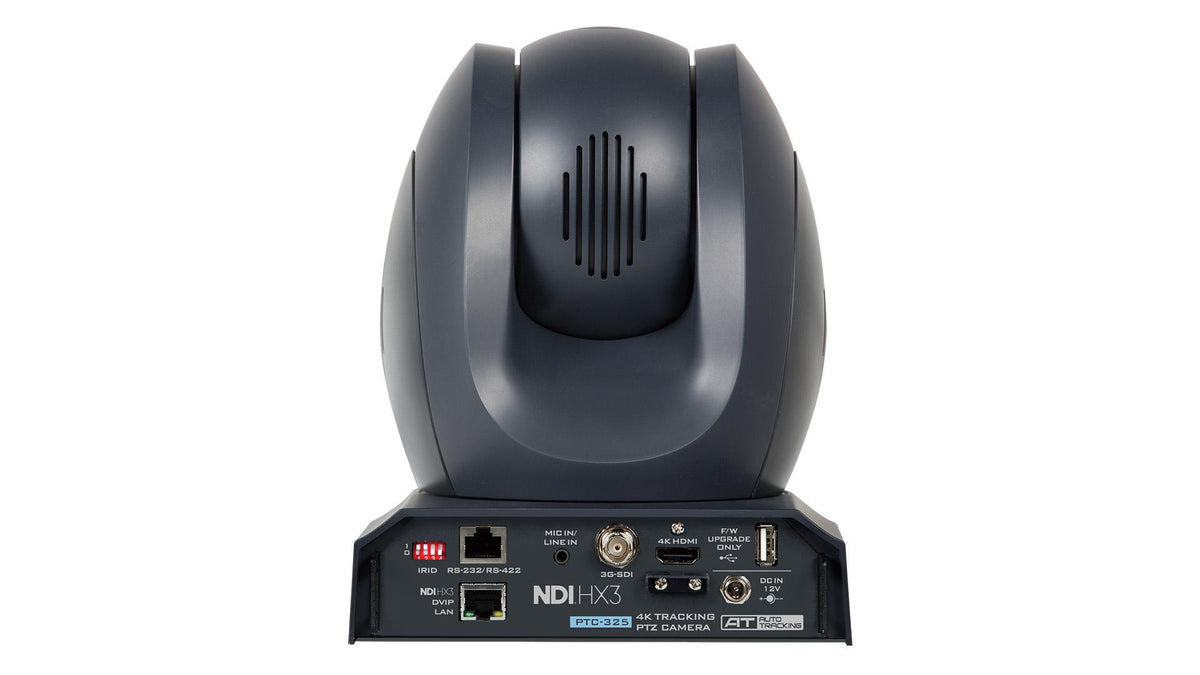

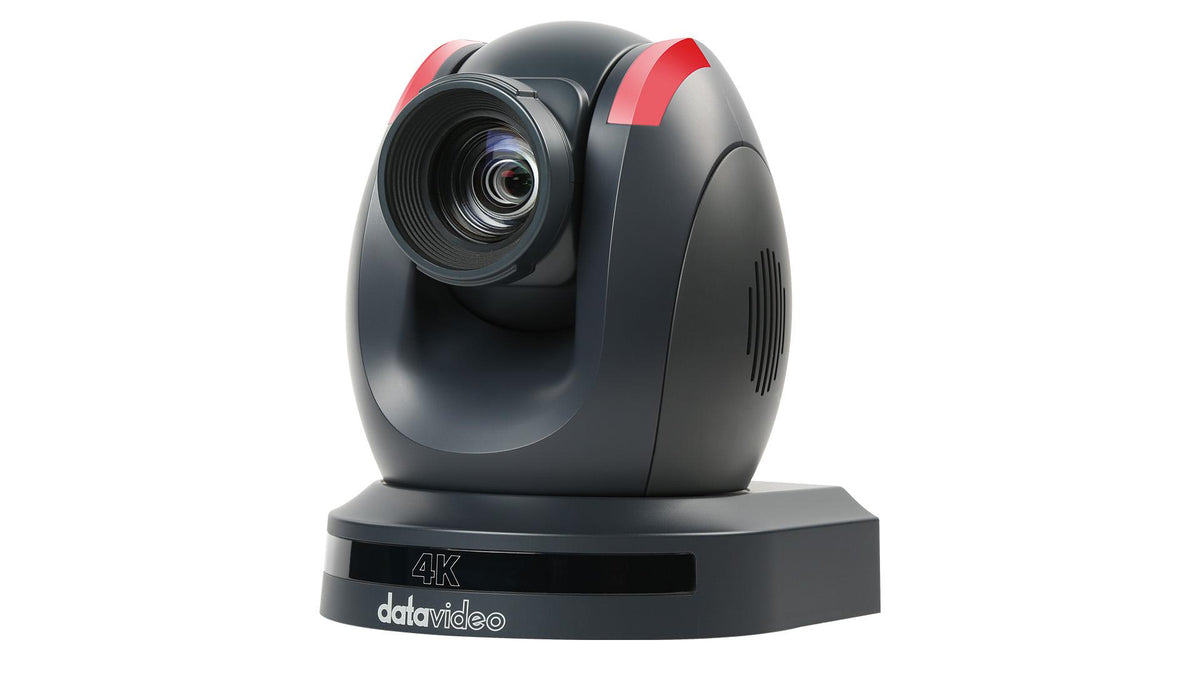

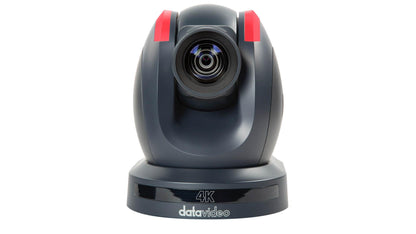

Datavideo PTC-325 4K 30x NDI® | HX, 3G-SDI, and HDMI PTZ Camera with Tracking.

Datavideo PTC-325 4K 30x NDI® | HX, 3G-SDI, and HDMI PTZ Camera with Tracking.

Advanced 4K PTZ Camera and Perfect for Large Venues
The Datavideo PTC-325 is equipped with a 1/2.8-inch CMOS sensor and a 30x optical zoom lens, offering 4K 50/60p output via HDMI with YUV 4:2:2 color sampling. This setup delivers sharp, detailed images with accurate color reproduction, even in larger venues. The camera's built-in Auto Tracking feature automatically locks onto and smoothly follows the subject, making it perfect for hands-free operation. The PTC-325 also supports NDI for low-latency video transmission over networks, making it an excellent choice for live streaming and remote production. It offers dual power options, including DC input and PoE, and features robust encoding capabilities for exceptional performance and versatility. Designed with the A/V market in mind, the PTC-325 series supports dual streaming output, enabling easy streaming to platforms like Facebook (RTMPS), YouTube, and dvCloud. Its compliance with the ONVIF Profile S standard ensures compatibility and interoperability across diverse network video environments.

Simultaneous Outputs
Connect your PTC-325 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.

Broadcast Quality 4K Resolution
With built-in 1/2.8" CMOS sensor, supports resolution up to 2160p 50/60.

Superior Optical Performance
The PTC-325 camera has 30x Optical Zoom and 16x Digital Zoom with the f1.8 wide open aperture.

Low Noise in Low Light
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Flexible 4K NDI|HX3 or HDMI Output
Choose 4K where your production needs it most. Output 4K over NDI|HX3 with Full HD HDMI, or switch to 4K HDMI with Full HD NDI|HX3, giving you the flexibility to optimize your workflow for IP or HDMI-based production.

Quick Access to Camera's Auto Tracking
You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.) In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include iCAST mini, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.

Custom Auto Object Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.

Quick Selection of Full Body / Half Body / Close-up
All of the PTC-325 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

Simply Enable Auto Tracking with Your IR Remote Control
RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.

The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.

Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480p compression. AAC, MP3 and PCM audio compression also supported.

Power over Ethernet
The PTC-325 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT-6 cable to power your PTC-325.

Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.

Compatible with Various Controller
Control real-time pan, tilt, and zoom camera movements with Datavideo ProTrack Control 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

RS-422, DVIP , NDI and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Compliant with the ONVIF Profile S Standard
The PTC-325 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.

The Benefits of Using NDI PTZ Cameras
NDI Pan Tilt Zoom cameras offer several advantages for various applications, particularly in the realm of video production, broadcasting, live streaming, and video conferencing. NDI, or Network Device Interface, is a technology developed by NewTek that allows video and audio to be transmitted over a network, making it easier to integrate and manage multiple devices. With NDI PTZ cameras, you can easily set up a multi-camera production environment, enabling you to capture different angles and perspectives for more dynamic and engaging content. Here are some reasons why using NDI PTZ cameras can be beneficial:

High-Quality Transmission
NDI PTZ cameras provide high-quality video and audio transmission over a network, enabling crisp and clear visuals for broadcasting, streaming, or video conferencing.

Integration & Scalability
NDI technology allows for easy setup and scalability, enabling you to add and manage multiple cameras seamlessly.

Reduced Cable Clutter
By utilizing a network for video and audio transmission, you reduce the need for multiple cables, simplifying the setup and reducing cable clutter in your workspace.

Remote Control
NDI PTZ cameras are designed for remote control of pan, tilt, and zoom functions, offering flexibility in camera positioning and framing without physical intervention.

Interoperability & Compatibility
NDI is a widely adopted standard in the industry, ensuring compatibility with various video production and streaming systems. This interoperability enhances flexibility and options for integrating the cameras into your existing workflow.

Cost-Effective
NDI PTZ cameras can be a cost-effective solution, especially when considering the reduced cabling and infrastructure requirements. They also offer a versatile alternative to stationary cameras.

One Ethernet Cable with NDI® | HX Technology
There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable. Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable. NDI® is a registered trademark of Newtek, Inc.

NDI® Virtual Input
PTC-325 as an video input source can be applied to various platforms: Skype, GoToMeeting, WebEx, Zoom, and more.

PTZ View Assist: Control up to four cameras
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-145, PTC-280, PTC-285, PTC-300 PTC-305 and PTC-325 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS. The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

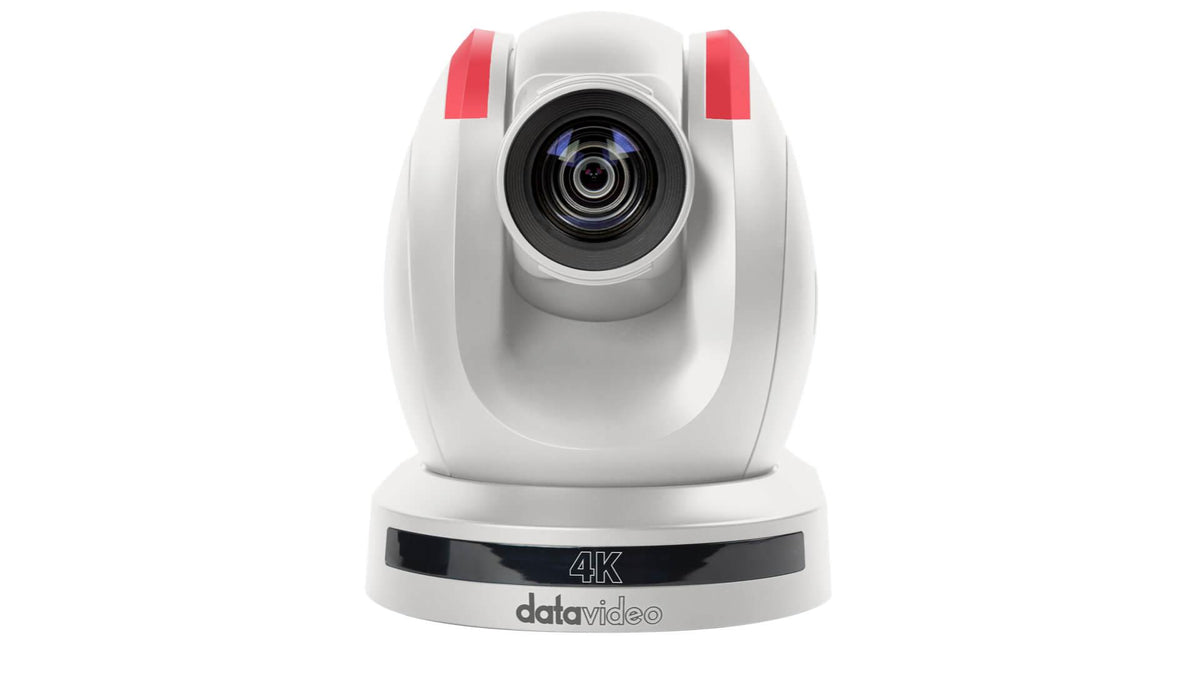

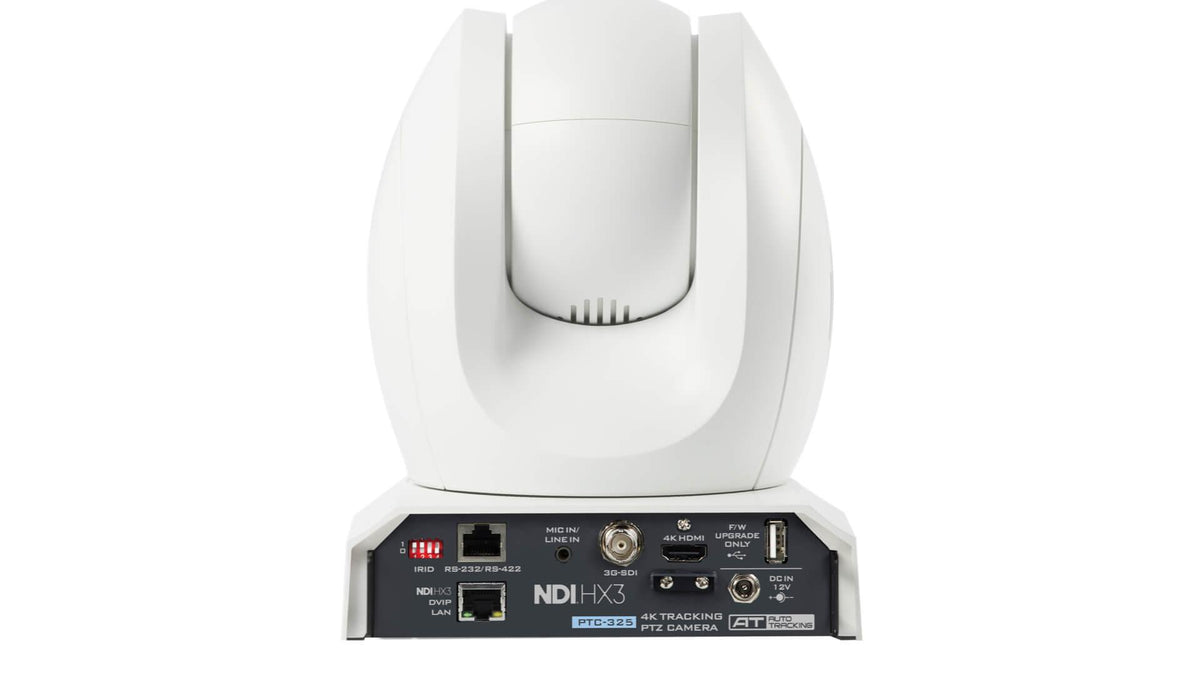

Dark or Light Body
The PTC-325 is available in black or white to remain inconspicuous in permanent setups.
Remote control from anywhere in the world
Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

Specifications

• Model Number: PTC-325
• Video format/Resolution: HDMI: 2160p60/59.94/50/30/29.97/25 1080p60/59.94/50/30/29.97/25 1080i60/59.94/50 720p60/59.94/50 *2160p60/59.94/50 YUV 4:2:2 SDI: 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
• Image Sensor: Sony 1/2.8" CMOS
• Effective Pixels (approx.): 8.46Mega Pixels
• S/N Ratio: ?55dB
• Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Electronic Shutter: 1/30s ~ 1/10000s
• Zoom Ratio: 30x Optical, 16x Digital Zoom
• Effective Zoom Ratio: 30x
• Gamma Control: N/A
• Iris Control: Auto / Manual
• Digital Noise Reductions: 3D
• On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
• White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
• AGC / Gain Control: Yes
• HDR/WDR: N/A
• Mirror / Flip Image: Yes
• Focus Mode: Auto/Manual
• Panning / Tilting Range: Pan: 300° Tilt: +90° to -15°
• Panning / Tilting Speed: Pan: 0.876°/s~43°/s Tilt: 0.693°/s ~21.32°/s
• Preset: 255
• Focal Length: 30x, f = 4.5mm ~135mm, F1.8 ~ F4.7
• Field of View (Horizontal, Wide): 62.3°
• Image Compensation: Back light compensation
• Video Output: HDMI 2.0 x1 3G-SDI x1 10/100/1000M RJ45 (PoE) x1
• Audio Input: 3.5 mm x1 (mic in/line in) switch from Web UI
• Tally LED: Yes
• Lens Filter: N/A
• Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
• Remote Control Interface: IR Web GUI RS-422/RS-232 DVIP NDI
• Video Compression Format: H.264/H.265/MJPEG
• Audio Compression Format: AAC, G711
• Audio Bitrate: 96Kbps, 128Kbps,256Kbps
• HD IP Interface: ----
• Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
• First Stream Supported Resolution: 3840x2160 1920x1080 1280x720 1024x576 960x540 640x480 640x360
• Second Stream Supported Resolution: 720x480 640x360 480x270 320x240
• Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
• Video Bitrate Mode: VBR, CBR
• Encoding Frame rate: 50Hz: 1-50fps 60Hz: 1-60fps
• POE: IEEE 802.3at PoE+
• F/W Update: Via Web UI or USB 2.0
• IR Control: Yes
• Camera Control Unit: RMC-2P RMC-180 series/ RMC-300 series/ PTZ View Assist APP
• Tripod Mount: 1/4-20 UNC
• Optional Accessories: WM-1/ WM-10/ WM-11
• Color: Black/White
• Dimension (LxWxH): 173 (W) x 219 (H) x 189.08 (D)
• Weight: 2.6 kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V 21W
• What's in the Box: 1 x PTC-325 product 1 x IR remote controller 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket -B 6 x Ceiling mount bracket screw M3*4mm 1 x DC 12V Power Adaptor 1 x Safety cable
