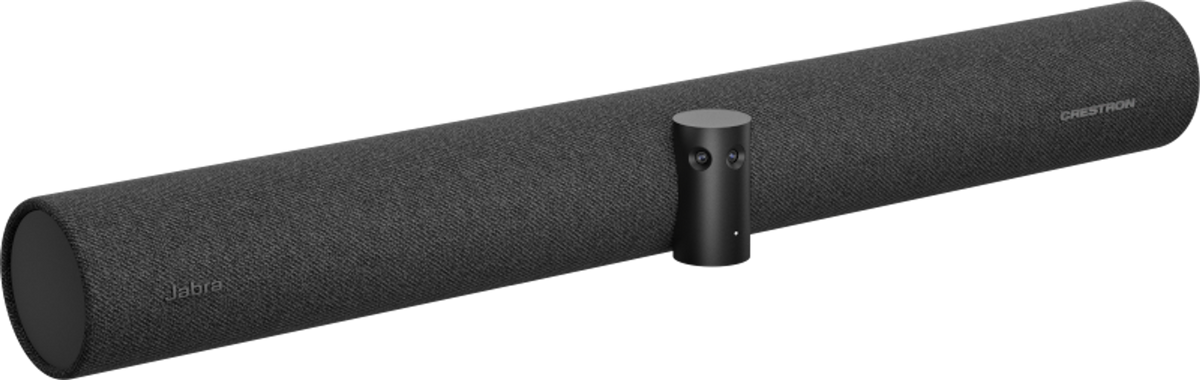

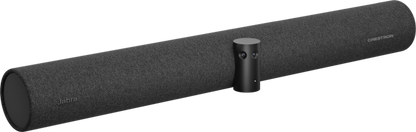

Crestron UC-SB-P50 Jabra PanaCast 50 Intelligent Video Bar for Crestron Flex Systems

Crestron UC-SB-P50 Jabra PanaCast 50 Intelligent Video Bar for Crestron Flex Systems

The Jabra® PanaCast® 50 intelligent video bar for Crestron Flex Systems combines microphones, speakers, and cameras in one front-of-room device. High-quality speakers and microphones deliver exceptional full-duplex performance. Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view. The Jabra PanaCast 50 video bar for Crestron Flex systems is optimized for all leading UC platforms, including both Microsoft Teams® Rooms and Zoom Rooms® software.

For more information on the Jabra PanaCast 50 video bar, refer to jabra.com/panacast50.

Key Features

• Complete conferencing solution with speakers, microphones, and cameras in one front-of-room device
• (8) microphone beamforming array
• High-powered 2-way stereo speakers produce high-quality sound
• Full-duplex audio performance with 2-way voice quality
• (3) built-in cameras capture the room in a seamless 180° horizontal field of view
• Panoramic 4K video resolution
• 6x lossless digital zoom
• Automatically adjusts the field of view to frame all participants
• Microsoft Teams® Rooms and Zoom Rooms® software certified

Specifications

Speakers

• Woofers: (2) 2 in. (50 mm) woofers
• Tweeters: (2) 2 x 3/4 in. (50 x 20 mm) tweeters
• Frequency Response: 80 Hz to 20 kHz

Microphones

• Microphone: (8) microphone beamforming array
• Pickup Range: Suitable for rooms up to 15 x 15 ft (4.5 x 4.5 m)

NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise.

• Sensitivity: -37 dBFS
• Frequency Response: 100 Hz to 8 kHz

Video

• Cameras: (3) cameras
• Resolution: 3840 x 1080 @ 30 fps; 13 megapixels
• Field of View: 180º horizontal, 54º vertical
• Zoom: 6x lossless digital zoom; Automatically adjusts the field of view to frame all participants

Indicators

• Status Bar: (1) multicolor LED indicates connection status, in-call mute/unmute, room capacity status, remote control pairing, and firmware update status

Connectors

• POWER: (1) AC power connector, female; For included AC power pack
• AUXIN: (1) 3.5 mm AUX port; For future use
• USB C: (1) USB-C connector, female; Connects to conferencing system, room controller, or laptop
• ETHERNET: (1) RJ-45 connector, female; Not used in Crestron Flex systems

Power

• Power: From external power pack; Input: 100-240VAC, 50/60 Hz; Output: 5A @ 12V

Environmental

• Temperature: 41° to 95°F (5° to 35°C)

Construction

• Enclosure: Black speaker and camera housing, rear air vents, integrated adjustable mounting bracket
• Mounting: Wall mount using integrated mounting bracket; Optional table mount or VESA® compliant screen mount (both sold separately)

Dimensions

• Height: 3.1 in. (90 mm)
• Width: 25.60 in. (650 mm)
• Depth: 4.90 in. (125 mm)

NOTE: Dimensions do not include the table stand or screen mount (both sold separately).

Weight

• 4.85 lb (2.2 kg)
