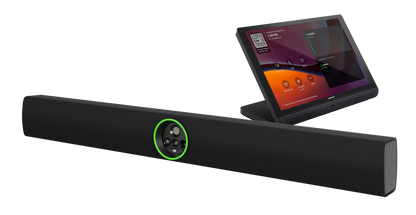

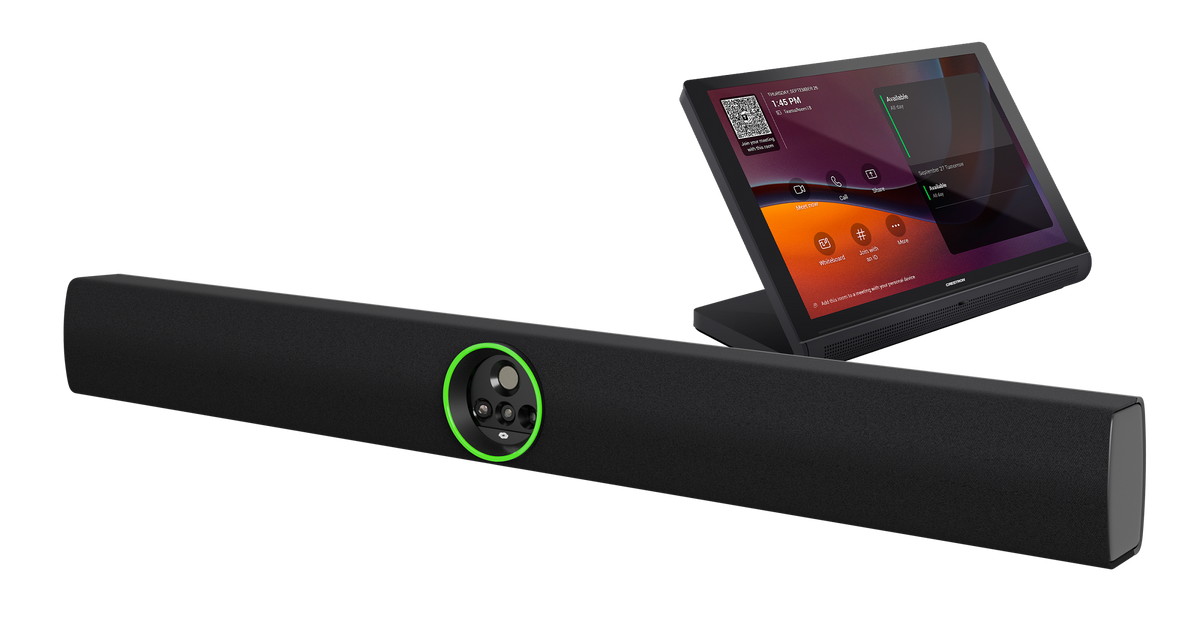

The UC-B70-A-T Crestron Flex tabletop conferencing system provides a medium to large-room video conference solution for use with Microsoft Teams® Rooms. It simplifies the communications and collaboration needs with fewer components and maximum efficiency. The UC-B70-A-T features a 10 in. tabletop touch screen, Crestron Videobar 70 with intelligent high-definition video and audio, a PoE injector, and cables. The UC-B70-A-T also supports up to two video displays¹ (not included).

The UC-B70-A-T conferencing solution delivers a hassle-free setup and installation, better space utilization, a cleaner and visually appealing environment, easy collaboration and content sharing, and scalable deployment.

High-Definition Video Conferencing

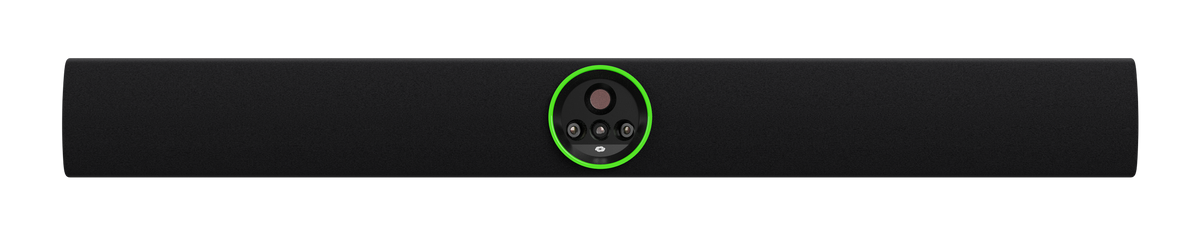

The powerful and elegant all-in-one (AIO) Crestron Videobar 70 provides a convenient and compact conferencing solution for medium to large-sized meeting rooms. It comprises:

• A quad-camera setup that captures the full room in 4K, automatically tracks and frames the presenter or everyone in the room based on its configuration and enhances video content using AI.
• 10-watt dual speakers produce full, rich, and natural-sounding audio. Additional digital signal processing with AEC and noise reduction assures optimal sound quality for an immersive experience.
• Integrated 24-microphone array to capture voices throughout the room using adaptive beamforming technology. AI noise cancellation is also provided to ensure crystal-clear communication with exceptional audio fidelity and pickup.
• Android™ OS running on the QCS8250 chipset that ensures a smooth and reliable conferencing experience every time.

Key Features

• Front-of-room video conferencing solution for Microsoft Teams® Rooms
• Intelligent high-definition video, immersive high-quality audio, built-in digital signal processor, and Microsoft Teams Rooms conferencing software, all in one Android™ OS-based Crestron Videobar 70 enclosure
• Native Microsoft Teams® Rooms Controller touch screen UI provides a consistent, simple user experience with one-touch meeting joins
• Complete kit contains a 10 in. tabletop touch screen, all-in-one Crestron Videobar 70 with tilting wall bracket, and a PoE injector.
• Easy to deploy and install - no custom design, programming, or software installation required
• Network management and provisioning and system alerts through the XiO Cloud® service
• Enterprise-grade security - connects and communicates securely over any enterprise or SMB (Server Message Block) network
• VB70 Supports video displays (not included)

Specifications

Included Components

• TS-1070-B-S-T-A: 10 in. (254 mm) tabletop touch screen, black
• UC-SB2-CAM-A-T: Crestron Videobar 70
• CBL-CAT5E-7: Ethernet LAN cable for UC Engine, RJ-45-to-RJ-45, black, 7 ft (2.1 m)
• CBL-8K-HD-6: (2) HDMI® 2.1 Cable, 6 ft (1.8 m)
• CBL-8K-HD-9: HDMI 2.1 Cable, 9 ft (2.7 m)
• DM-CBL-ULTRA-PC-20: Ethernet LAN cable, CAT6a, RJ-45-to-RJ-45, blue, 20 ft (6.1 m)
• PWE-4803RU: PoE Injector

Tabletop Touch Screen

• Touch Screen: 10 in. (254 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels
• Ethernet: 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
• Power over Ethernet: IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
• Construction: Plastic, smooth black finish, edge-to-edge glass with black surround
• Dimensions: Height: 5.29 in. (134 mm) Width: 9.63 in. (245 mm) Depth: 4.67 in. (119 mm)
• Weight: 2.44 lb (1.10 kg)

Crestron Videobar 70

• Speakers: Dual 10-watt speakers
• Microphone: 24 mic linear array

NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise.

• Audio DSP: Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed);
• Quad Camera Configuration: (1) Main camera; (1) Left, (1) center, and (1) right sub cameras with 14º overlap
• Main Camera Optics: Main camera 20 Megapixels 1 in. sensor
• Camera Field of View: Main Camera: 84.3º horizontal, 53.8º vertical; Left, center and right sub cameras: 41º horizontal, 23º vertical
• Camera Resolution: Main Camera: 5472 x 3078 pixels; Left, center and right sub camera: 3840 x 2160 pixels
• Autozoom: 7.5x digital zoom
• Camera Shutter: Mechanical, electronically controlled
• Operating System: Android OS running on the QCS8250 chipset
• Memory: LPDDR5 12GB; UFS 128GB
• Connectivity: 100/1000 Mbps Ethernet connectivity
• Wi-Fi® Connectivity: Dual Band Simultaneous Wi-Fi 6 2x2 80 MHz
• Bluetooth® Connectivity: Bluetooth 5.2 (for future use)
• UC Client: Microsoft Teams® Rooms
• Management Client: XiO Cloud Service
• Content Ingest: HDMI input on Crestron Videobar 70 or direct sharing
• Display Output: Up to two displays supported
• Display Output Resolution: (2) 4K
• Video Input Signal Types: HDMI, 1080p 30
• Video Output Signal Types: HDMI, 4K30
• Video Content Protection: HDCP 1.4 and HDCP 2.2
• Audio Input Signal Types: HDMI: Two-channel LPCM

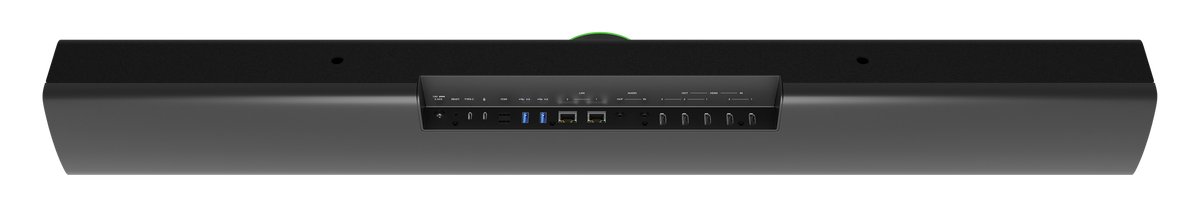

• Connectors: HDMI port: (2) HDMI In (Input 2 reserved for future use), (3) HDMI Out (Output 3 reserved for future use); 3.5 mm Line in / Line out: (1) Audio In, (reserved for future use) (1) Audio Out (reserved for future use); LAN: (2) 8-pin RJ-45 connector; USB A: (2) USB 3.0 Type A connector (reserved for future use); USB C: (2) USB 3.1 Type-C connector (USB-C is for BYOD, Mic is reserved for future use)
• Input Power: 19VDC via external 100-240VAC, 50/60 Hz power pack (included)
• Temperature: 32° to 104°F (0° to 40°C)
• Enclosure: Plastic, smooth black finish; Speaker and camera housing, rear air vents, integrated mounting bracket

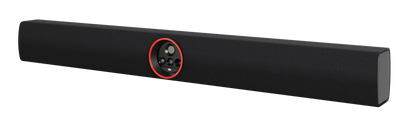

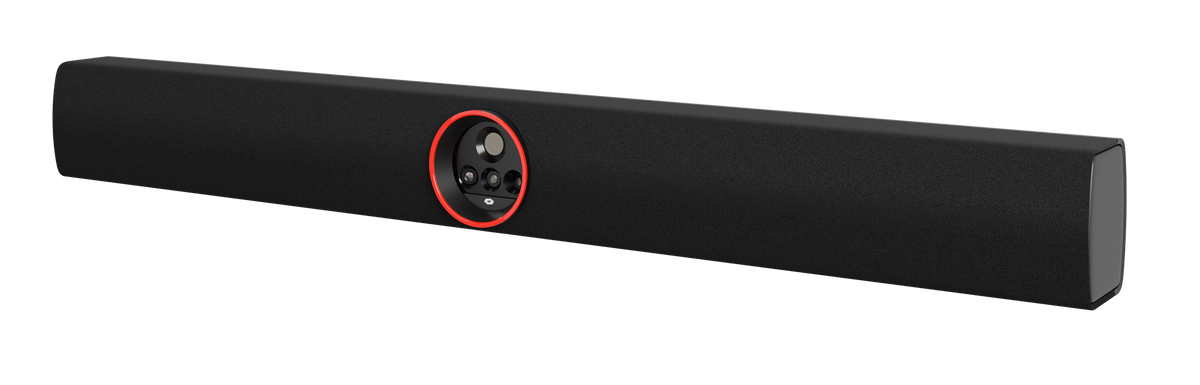

• LED Indicators: Green indicates microphones are unmuted; Red indicates microphones are muted
• Mounting: Wall mount using integrated mounting bracket, optional desktop stand and display bracket accessories
• Dimensions: Height: 4.33 in. (110 mm); 6.38 in. (162 mm) with bracket; Length: 38.58 in. (980 mm) Depth: 3.77 in. (96 mm); 4 in. (101 mm) with bracket
• Weight: 13.2 lb (6 kg)
