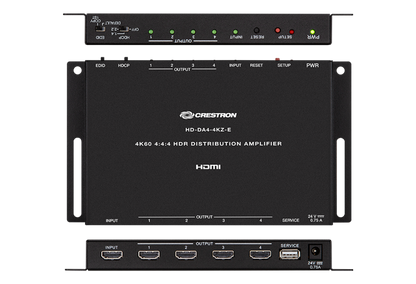

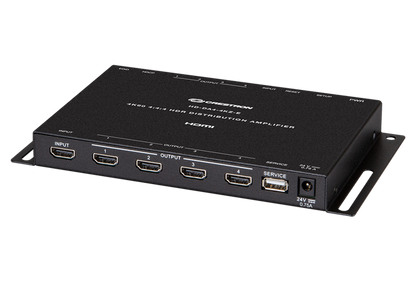

Crestron HD-DA4-4KZ-E 1:4 HDMI Distribution Amplifier w/4K60 4:4:4 & HDR Support

Crestron HD-DA4-4KZ-E 1:4 HDMI Distribution Amplifier w/4K60 4:4:4 & HDR Support

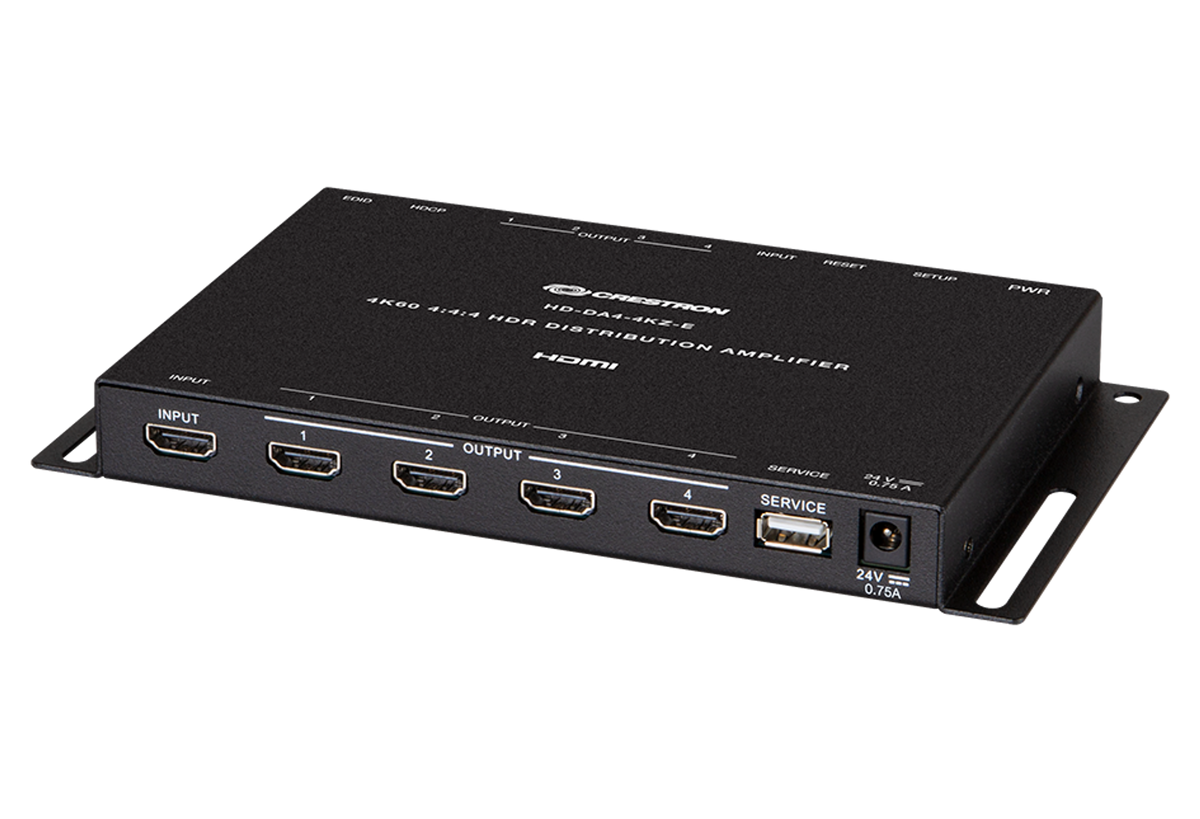

The Crestron® HD- DA4-4KZ-E is a simple to use, high-performance 4K AV distribution amplifier designed to split a single HDMI® signal to feed up to four separate displays, switchers, and/or other devices. It provides full support for UHD and DCI 4K60 4:4:4 and HDR video, HDCP 1.4 or 2.2 copy protection, and high-bitrate 7.1 audio, to ensure optimal performance and compatibility for any HD or 4K video application. No programming or control system is required for operation.^[1]

For smaller or larger applications, refer to models HD-DA2-4KZ-E and HD-DA8-4KZ-E.

Key Features

• Splits one HDMI® source to four outputs
• Handles 4K60 4:4:4 and HDR video signals ^[1]
• Fully compatible with HD 1080p, UHD 4K, and DCI 4K sources and displays
• Handles 3D video and Deep Color
• Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
• Selectable handling of HDCP 2.2 or HDCP 1.4
• EDID management options
• Input and output video presence indication
• No programming or control system required
• Thin profile - less than one inch deep
• Surface, shelf, or single rack rail mountable
• External 100-240V universal power pack included

Specifications

Video

• Input Signal Type: HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support[1] (DVI & Dual-Mode DisplayPort compatible[2])
• Output Signal Type: HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support[1] (DVI compatible[2])
• Copy Protection: Selectable for HDCP 2.2, HDCP 1.4, or HDCP disabled

Audio

• Input Signal Type: HDMI (Dual-Mode DisplayPort compatible[2])
• Output Signal Type: HDMI
• Formats: Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels

Communications

• USB: USB 2.0 host; supports firmware update and custom EDID upload via a USB flash drive
• HDMI: HDCP & EDID (does not pass CEC)
• HDCP Version: Selectable for HDCP 2.2, 1.4, or OFF; HDCP encrypted content is blanked in OFF mode
• EDID Mode: Selectable for DEFAULT or COPY 1ST; • The factory default EDID is 4K60 4:4:4 non-HDR video with 2-channel LPCM audio; • The factory default EDID can be replaced with a custom EDID via USB; • Sliding the switch from DEFAULT to COPY 1ST copies and stores the EDID from the device at OUTPUT 1 and passes it to the INPUT source device; • Sliding the switch from COPY 1ST to DEFAULT erases the stored EDID and uses the factory default or custom EDID; Note: Changing the device at OUTPUT 1 will not update the stored EDID until the switch is moved to DEFAULT and back to COPY 1ST

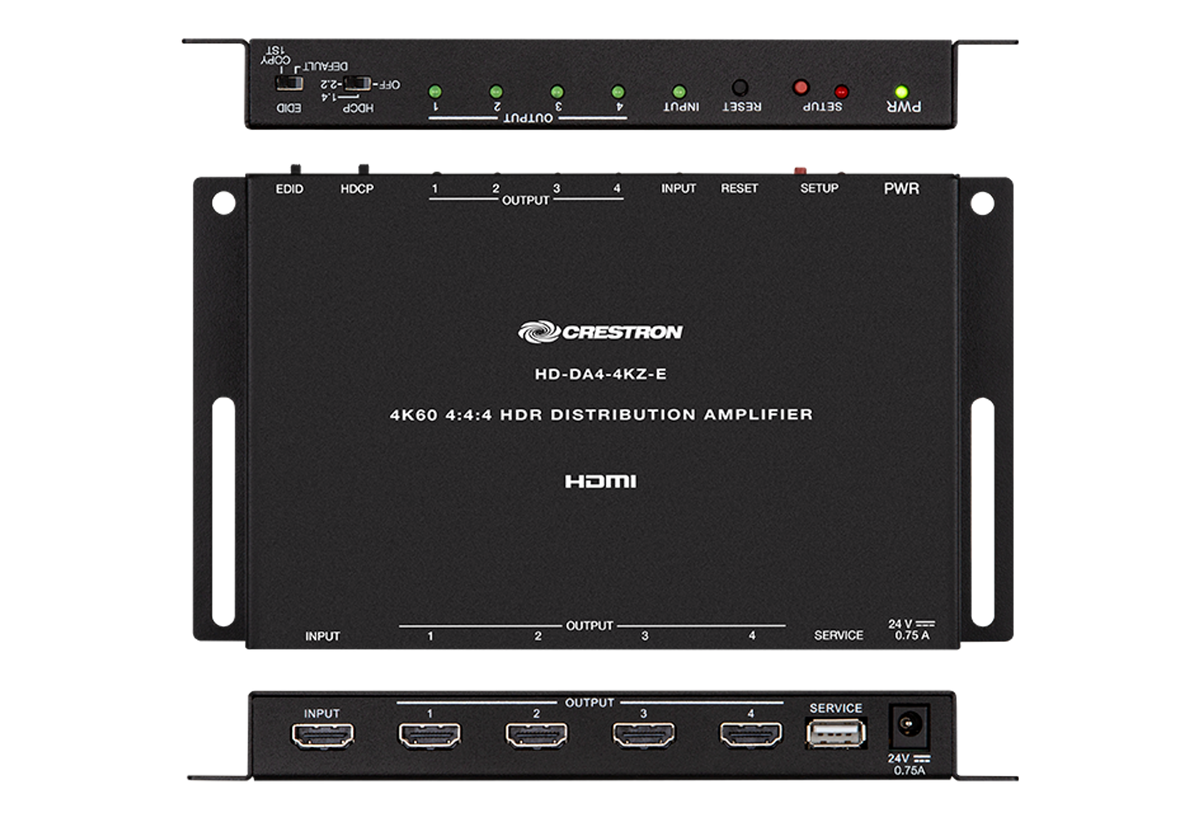

Connectors

• INPUT: (1) HDMI Type A connector, female; HDMI digital video/audio input[1]; (DVI & Dual-Mode DisplayPort compatible[2])
• OUTPUT 1 - 4: (4) HDMI Type A connectors, female; HDMI digital video/audio outputs[1]; (DVI compatible[2])
• SERVICE: (1) USB Type A connector, female; USB 2.0 host port; For firmware update and custom EDID upload via a USB flash drive
• 24VDC 0.75A: (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2407WU power pack included

Controls & Indicators

• PWR: (1) Bi-color LED, indicates operating power is supplied via the power pack; illuminates amber while booting, green when operating
• SETUP: (1) Pushbutton and (1) red LED, restores factory settings
• RESET: (1) Recessed pushbutton for hardware reset
• INPUT: (1) Green LED, indicates video signal presence at the HDMI input
• OUTPUT 1 - 4: (4) Green LEDs, each indicates video signal transmission at the corresponding HDMI output
• HDCP: (1) 3-position slide switch, selects the HDCP version (OFF, 1.4, or 2.2)
• EDID: (1) 2-position slide switch, selects the EDID mode (DEFAUT or COPY 1ST)

Power

• Power Pack (included): Input: 100-240 Volts AC, 50/60 Hz; Output: 0.75 Amps @ 24 Volts DC; Model: PW-2407WU
• Power Consumption: 5.5 W (typical)

Environmental

• Temperature: 32° to 104° F (0° to 40° C)
• Humidity: 10% to 90% RH (non-condensing)

Enclosure

• Chassis: Metal, black finish, with (2) integral mounting flanges
• Mounting: Freestanding, surface mount, or attach to a single rack rail

Dimensions

• Height: 0.87 in (22 mm)
• Width: 8.09 in (206 mm)
• Depth: 4.67 in (119 mm)
