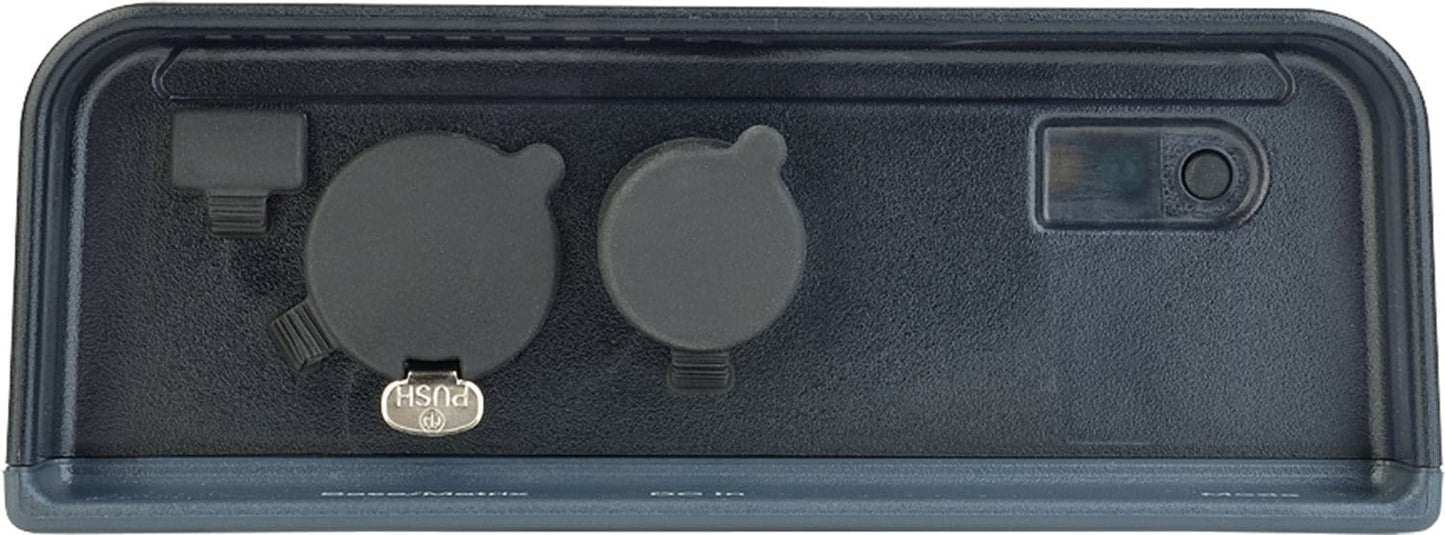

Clear-Com FSIITCVR Antenna Active Freespeak 1.9 Gigahertz

Clear-Com FSIITCVR Antenna Active Freespeak 1.9 Gigahertz

The FSII-TCVR-19 is an active transceiver antenna for the FSII-BP19 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-19 has a mount for wall or microphone stand. A green status light is visible from either mounting orientations. When mixed with FSII-TCVR-24 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.

Features:

• Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware
• Supports 5 FSII-BP19 beltpacks per FSII-TCVR-19 transceiver
• Supports systems with up to 65-90 beltpacks when mixed with FSII-24-TCVRs
• Green LED status indicator on top and bottom
• Mic stand or wall mount orientation (metric and imperial threads)
• IP53 rating for wet and dusty conditions

Specifications:

• Frequency Spectrum:
  • USA, Canada, Mexico: 1920-1930MHz - Transceiver Range Output Power: 100mW
  • EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1880-1900MHz - Transceiver Range Output Power: 250mW
  • Japan: 1893-1906MHz - Transceiver Range Output Power: 250mW
  • Argentina: 1910-1930MHz - Transceiver Range Output Power: 250mW
  • Brazil: 1910-1930MHz - Transceiver Range Output Power: 250mW
  • Chile: 1910-1930MHz - Transceiver Range Output Power: 70mW
  • Taiwan: 1880-1895MHz - Transceiver Range Output Power: 250mW
  • Modulation: GFSK, TDMA frame 10ms Full and Long slot
  • Output: (EU/Russia) 10dBm average, (US): 18-20dBm
• Environmental:
  • IP53 water and dust resistance
  • Operating: 32º-125ºF (0º-50ºC)
  • Storage: 32º-150ºF (0º-70ºC)
  • Humidity: Between 20% and 90%, Non-Condensing
• Dimensions:
  • 6.75 x 5.5 x 2in (HxWxD)
  • (173 x 134 x 52mm)
• Weight: 15.9oz (0.45kg)
