Clay Paky Show-Batten 100 RGBW Moving LED Bar

Clay Paky Show-Batten 100 RGBW Moving LED Bar

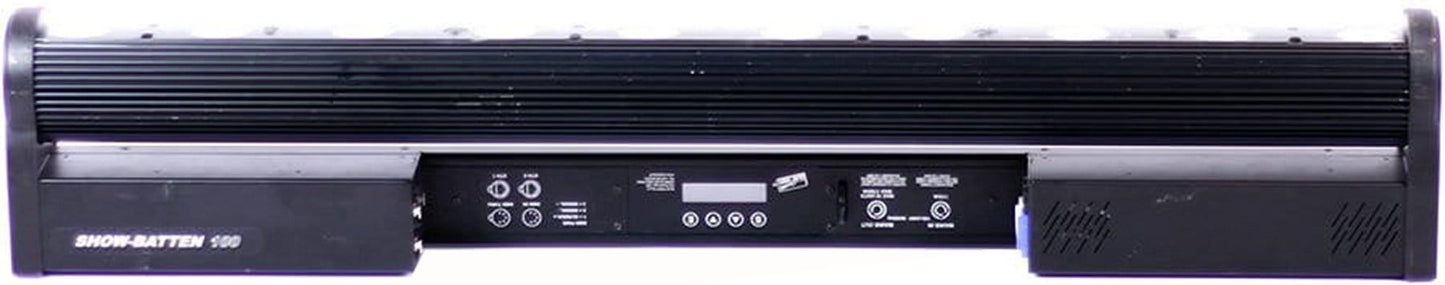

The Show Batten 100 is a LED moving bar designed for stage lighting professionals. Ten high-power Osram Ostar RGBW LEDs are housed inside a 100 cm long (39”) cylindrical aluminum bar. Each parameter of each LED may be controlled individually: color, 8 bit dimmer and 24 Hz strobe. The Show Batten lens is fitted with a wide electronic linear zoom. This is particularly suitable for wall washing. The zoom is very fast: 0.3 s from min. to max. The colors are generated through R, G, B and W channels, and may also be chosen from a wide palette consisting of over sixty macros. The color temperature can be linearly adjusted from 2500 K to 8000 K thanks to control through a dedicated CTO channel. The Show Batten has a 240° tilt and can rotate very smoothly and very fast (240° in as little as 0.2 s). It is compact, rugged and lightweight: only 9 kg (19.8 lbs). Several bars may be arranged in a line or a matrix, with a constant fixed distance between the LEDs. An internal Ethernet switch for IN/OUT daisy-chain connection makes it easy to connect the bars up for pixel control in a matrix arrangement.

Features:

• Light source: 10 X 15W Osram Ostar RGBW LEDs
• Distance between LEDs: 100 mm (4”)
• “STANDARD” VERSION: - Optical unit with motorized zoom: minimum 10° x 23°, maximum 43° x 48° (at 50%); minimum 23° x 35°, maximum 66° x 76° (at 10%); - High brightness: 3340 lumens
• “AS” VERSION: - Asymmetrical optical unit with special motorized zoom for illuminating backdrops: minimum 8° x 25°, maximum 9° x 45° (at 50%); minimum 18° x 37°, maximum 21° x 74° (at 10%); - High brightness: 5210 lumens
• Independent RGBW color control for each individual LED
• Effects: dimmer (8 bit), 20 Hz strobe, color macros and effect macros
• High speed motorized tilt: 240°
• Art-Net / RDM
• Internal Ethernet switch for IN/OUT daisy-chain connection to make it easy to connect bars up for pixel control in a matrix arrangement
• The length and width of the bar allow it to be assembled in horizontal and vertical matrices with a fixed distance between LEDs (100mm/4”)
• Sockets within the dimensions of the bar to prevent accidental contact with adjacent trusses or bars in matrix arrangements

Specifications:

• POWER SUPPLIES
  • 100/240V 50/60 Hz
  • Automatic power supply
• INPUT POWER
  • 170 VA
  • Max 1700VA connecting max 10 units
  • Total lumen output:
    • Show-Batten 100: Max 2,840 lm
    • Show-Batten 100 AS: Max 2,590 lm
• LIGHT SOURCE
  • Discharge lamp with a short arc burner in a reflector system
    • 10x15W RGBW LEDs
      • Type: OSRAM OSTAR - SMT LE RTDUW S2W
      • Color Temperature: 6,000 K
      • Average Life: 50,000 h
      • Luminous flux: 6,800 lm
• OPTICS
  • 45mm diameter lens
    • Show-Batten 100: Zoom: min. 10°x23°, max. 43°x48° (at 50%); min. 23°x35°, max. 66°x76° (at 10%)
    • Show-Batten 100 AS: Zoom: min. 8°x25°, max. 9°x45° (at 50%); min. 18°x37°, max. 21°x74° (at 10%)
  • Fast Speed: 0.3 sec
• COLOR SYSTEM
  • RGBW System
  • Individual color RGBW control for each LED
  • 8000K- 2500 K Color temperature correction
  • Macro Colors
• EFFECTS SECTION
  • Global dimmer
  • Strobe from 1 to 20 flashes/sec
  • Random and macro strobe
• CONTROL AND PROGRAMMING
  • 10 DMX 512 channels in standard mode
  • 50 DMX 512 channels in extended mode
  • DMX protocol signal: USITT DMX 512
  • Art-Net / RDM
  • Display: LCD 2 lines with 16 characters each,backlit LED, white on black
  • Tilt Resolution: 16 bit
  • Dimmer Resolution: 16 bit
  • Strobe 20Hz
  • DMX signal connection: 5 pole XLR input and output
  • Software upload through DMX input
• BODY
  • Body extruded in black anodized aluminum
  • Aluminum and steel structure with plastic covers
• MOVING BODY
  • Automatic repositioning of TILT after accidental movement not controlled by control unit.
  • PAN: No Rotation
  • TILT: Angle rotation: 240°; Fast speed: 0,2 sec; Resolution tilt: 0,94
• ELECTRONICS
  • Long life self-charging buffer battery
  • Electronic monitoring with status error
  • Cooling system monitoring
  • DMX level monitoring on all channels
  • Internal data transmission diagnostics
  • Firmware upgrade with no power
  • Firmware upload from another fixture
• SAFETY DEVICES
  • Automatic shut-down in case of power supply over current or overheating
  • Automatic derating, in case of LED overheating
  • Forced ventilation with fans and heat sink
• WORKING POSITION
  • Any Working Position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• CE MARKING
  • In conformity with the European Directives:
    • 2014/35/EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic Compatibility (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy-related Products (ErP)
• ETL
  • This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.
• WEIGHT
  • 10 kg (22 lbs)
