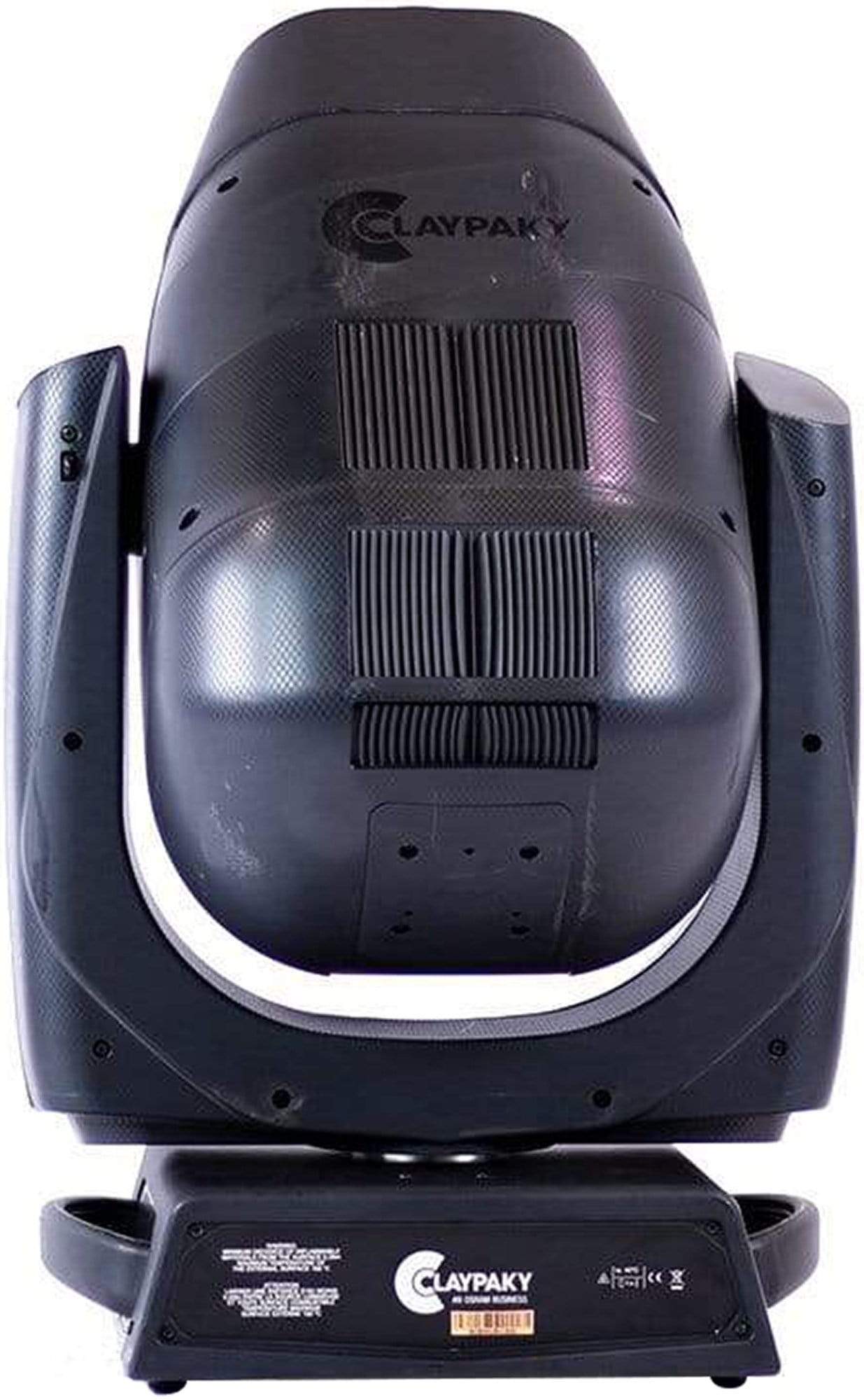

Clay Paky Scenius Unico Profile Arc Moving Light
Used Units sold in sets of 6
The Scenius Unico is the latest addition to the Scenius family, therefore its first highly appealing feature is the quality of its light (1400W Osram lamp, 6500K, very high CRI). It is a magnificent spot light for projecting effects, with six rotating gobos, a rotating prism a beautiful animation wheel, and it is equipped with the most sophisticated and most precise framing system on the market today. The Scenius Unico is also an excellent wash light, since it features a system with different diffusion filters, which may be inserted gradually. However the most amazing feature is that the Scenius Unico can also generate a powerful narrow beam of super concentrated light, with a minimum beam angle of only 5 degrees.
Features:
- Multifunctional light
- 1400W Osram discharge lamp
- 6500 K output color temperature
- Very high CRI
- 180 mm Ø front lens
- 5°- 55° linear zoom
- Focus tracking system
- CMY System + Linear CTO
- 7-color wheel
- Framing System operating on 4 focal planes
- Framing System rotation on 90°
- 6 rotating gobos
- Rotating Prism
- Graphic animation wheel
- 16 blades fast Iris
- Variable “soft edge” frost
- Variable flood frost
- Very precise 0-100% dimmer
- Fast stop/strobe effect
- Light can be run at 1400W or1200W
- Art-Net / RDM
Specifications:
-
POWER SUPPLIES
- AC power input Neutrik PowerCON TRUE1 (IP65)
- 200-240V 50/60 Hz
-
LIGHT SOURCE
- OSRAM Lok-it! HTI 1400/PS Lamp
- Color Temperature: 6.000 K
- Life: 750 hrs
- Very high CRI (≥ 90)
- Luminoux flux: 120000 lm
- Base PGJ28 Lok-it!
- Light can be run at 1400W or 1200W in Energy Saving mode
-
OPTICS
- 5°-55° Linear Zoom°
- ø180 mm front lens
- Electronic Focusing
-
FRAMING SYSTEM
- 4 Blades that move separately
- Smooth, flexible blade movements at variable speed
- A "total curtain" effect made separately by each of the 4 blades, in many - shapes and colors
- Small and large dynamic profiles
- 90° rotation of the entire system, at variable speed
-
COLOR SYSTEM
- CMY System
- Linear CTO
- Color Wheel with 7 color filters
-
EFFECTS SECTION
- One wheel with 6 rotating gobos
- Animation Wheel
- Rotating Prism with 4 faces
- 16 blades fast Iris
- Variable "soft edge" frost
- Variable flood frost
- Very precise 0-100% dimmer
- Fast stop/strobe effect
-
CONTROL AND PROGRAMMING
- 40 or 44 DMX 512 control channels
- DMX protocol signal: USITT DMX 512
- Art-Net / RDM
- Display: LCD 128 x 64 dots, backlit LED, white on black
- Pan and Tilt Resolution: 16 bit
- Focus Indexing Resolution: 16 bit
- Dimmer Resolution: 16 bit
- Rotation gobo Resolution: 16 bit
- Movement control: vectorial
- DMX signal connection: 5 pole XLR input and output
- Software upload through DMX input / Ethernet input
-
BODY
- Aluminium structure with die-cast plastic cover
- Two side handles for transportation
- Device locking PAN and TILT mechanisms for transportation and maintenance
-
MOVING BODY
- PAN
- Angle Rotation: 540°
- Fast speed: 4.210” sec
- Normal Speed: 4.958” sec
- Resolution TILT: 2.10938°
- Resolution TILT FINE: 0.00824°
- Accuracy:
- Resolution ± 0.2 (Range 0.4°)
- TILT
- Angle Rotation: 268°
- Fast speed: 2.536” sec
- Normal Speed: 3.246” sec
- Resolution TILT: 1.04688°
- Resolution TILT FINE: 0.00409°
- Accuracy:
- Resolution ± 0.2° (Range 0.4°)
-
ELECTRONICS
- Long life self-charging buffer battery.
- ON/OFF lamp control from the lighting desk.
- Function reset from the lighting desk.
- "AUTOTEST" function from menù
- Electronic monitoring with status error
- Cooling system monitoring
- DMX level monitoring on all channels
- Internal data transmission diagnostics
- Firmware Upgrade with no power
- Firmware upload from another fixture
-
SAFETY DEVICES
- Bipolar circuit breaker with thermal protection.
- Automatic break in power supply in case of overheating
- Forced ventilation with axial fans.
-
WORKING POSITION
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
-
WEIGHT
- 45,6 Kg (100.5 lbs)
-
