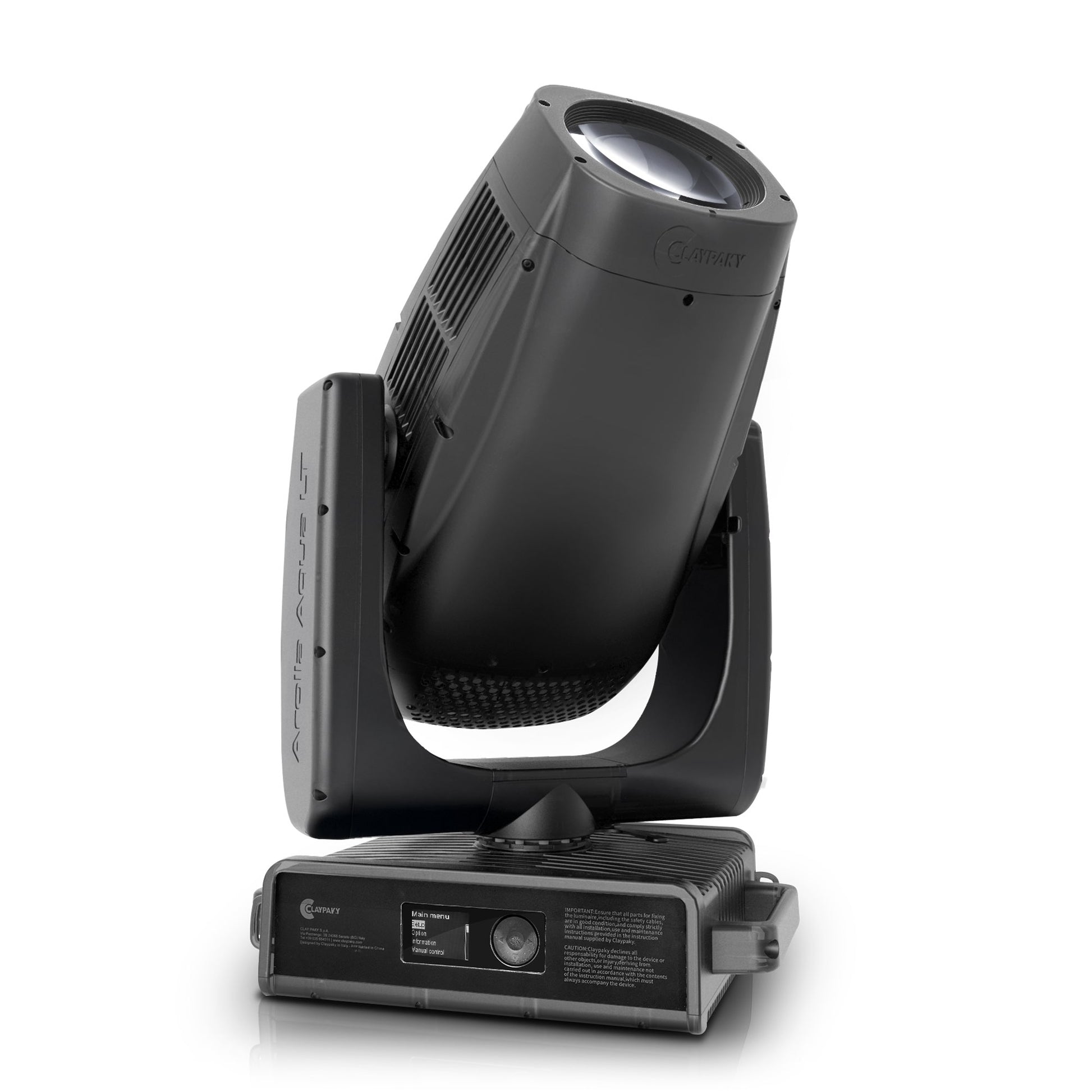

Clay Paky CL3041E41100F Arolla Aqua LT/FS (Foam Shell): 900w 6500k White LED Camera Ready 100-240V 50/60HZ ETL IP66

Clay Paky CL3041E41100F Arolla Aqua LT/FS (Foam Shell): 900w 6500k White LED Camera Ready 100-240V 50/60HZ ETL IP66

Arolla Aqua LT FS is an external digital camera version, ready for follow-spot applications, allowing operators to control the fixture remotely while viewing a live feed from the onboard camera (digital camera is not included). This version seamlessly integrates with multiple remote tracking systems.

When reliability, innovation, and power gather, you get a moving head that turns lighting into unforgettable experiences. Elevate your designs with Arolla Aqua LT – the ideal blend of long-throw power and pinpoint precision.

Specifications

LIGHT SOURCE

• Source type: White LED
• Power: 900W
• Colour Temperature: 6500K
• CRI: Up to 70 with selectable filter for cri 88+
• LED life expectancy: 40.000 Hrs L70*
  *It may vary depending on various factors, such as the type of use and environment

PHOTOMETRIC DATA

• Aperture: 4° to 52°
• Lumen Output: 44.000 lm (integrating sphere)
• Front lens: Ø 170 mm
• Optical system: High efficiency

NOISE LEVEL

• Fixed preset:
  • Silent mode: 37.5 dB
  • Auto mode: 46.3 dB
  • Theatre mode: 37.4 dB
  • Constant mode: 47.1 dB

CONTROL and CONNECTIONS

• Personalities: 2 modes with 38 / 41 control channels
• Protocols: DMX, Art-Net, sACN, CRMX (Lumen Radio)
• Connectors: Locking five-pin XLR IN/OUT, RJ45 IN/OUT
• In addition with FS version: USB 12V + RJ45 for camera version
• Power connector: PowerCon True1 IN/OUT
• Web Server: Built-In
• CloudIO: Fully compatible

DYNAMIC EFFECTS

• Colours:
  • linear CMY colour mixing
  • linear CTO filter from 3400K to 6500K
  • Color wheel with 6 dichroic colors
• Gobos:
  • 1 rotating gobo wheel with 7 interchangeable glass gobos
  • 1 static gobo wheel with 8 gobos
• Framing system:
  • 4 blades with ± 60° rotation of the full system
  • “Total Curtain" effect allowing full blackout with each single blade
• Frost:
  • 2 linear heavy frosts 5° and 1°
• Rotating effects:
  • 1 aluminum animation wheel with continuous rotation in both direction at variable speed
  • 1 four-facet prism with rotation in both directions at variable speed
• Iris:
  • motorized with variable pulse and random effects
• Movement:
  • tilt: 270° - 16bit
  • pan: 540° - 16bit
  • absolute positioning, Mechanical pan/tilt lock for safe transportation and maintenance
• Dimmer/Shutter:
  • high resolution dimmer; shutter and strobe effect

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display graphic LCD blacklit B/W display;
• Firmware upload from another fixture,
• Firmware upgrade via Web Server;
• Diagnostic;
• DMX monitoring;
• Remote access through RDM

HOUSING

• Magnesium and steel structure with plastic covers
• Two-side handles for transportation
• IP66 protection rate
• Working in any position
• Hanging system with fast-lock Omega clamps (1/4) on the base
• Optional safety chain
• Special feature: sun safe protection

ELECTRICAL

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 1400W

THERMAL SPECIFICATION

• Max ambient temperature: 45°C (113°F)
• Min ambient temperature: -20°C (-4°F)
• Max temperature of the external surface: 90°C (194°F)
• Total heat dissipation: 3074 BTU/hr ±10% / 3240 kJ/hr ±10%

SAFETY SPECIFICATIONS

• Minimum distance of illuminated objects:  0.2 m (8 In)
• Minimum distance from flammable materials: 0.2 m (8 In)
• Protections:
  • External Mains Fuse T 16A 250V - 5x20mm
  • External Fuse (to disconnect battery during flights transportation) T 6,3A 250V - 5x20mm
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE:

• CE Marking (in conformity to the following):
  • 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
  • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
• UKCA: conforms to UK Regulations:
  • S.I. 2017 N. 1206
  • S.I. 2012 N. 3032
  • S.I. 2021 N. 745
• cMETus Listed:
  • UL 1573:2003
  • CSA C22.2 N. 166: 2015

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (1 position)
