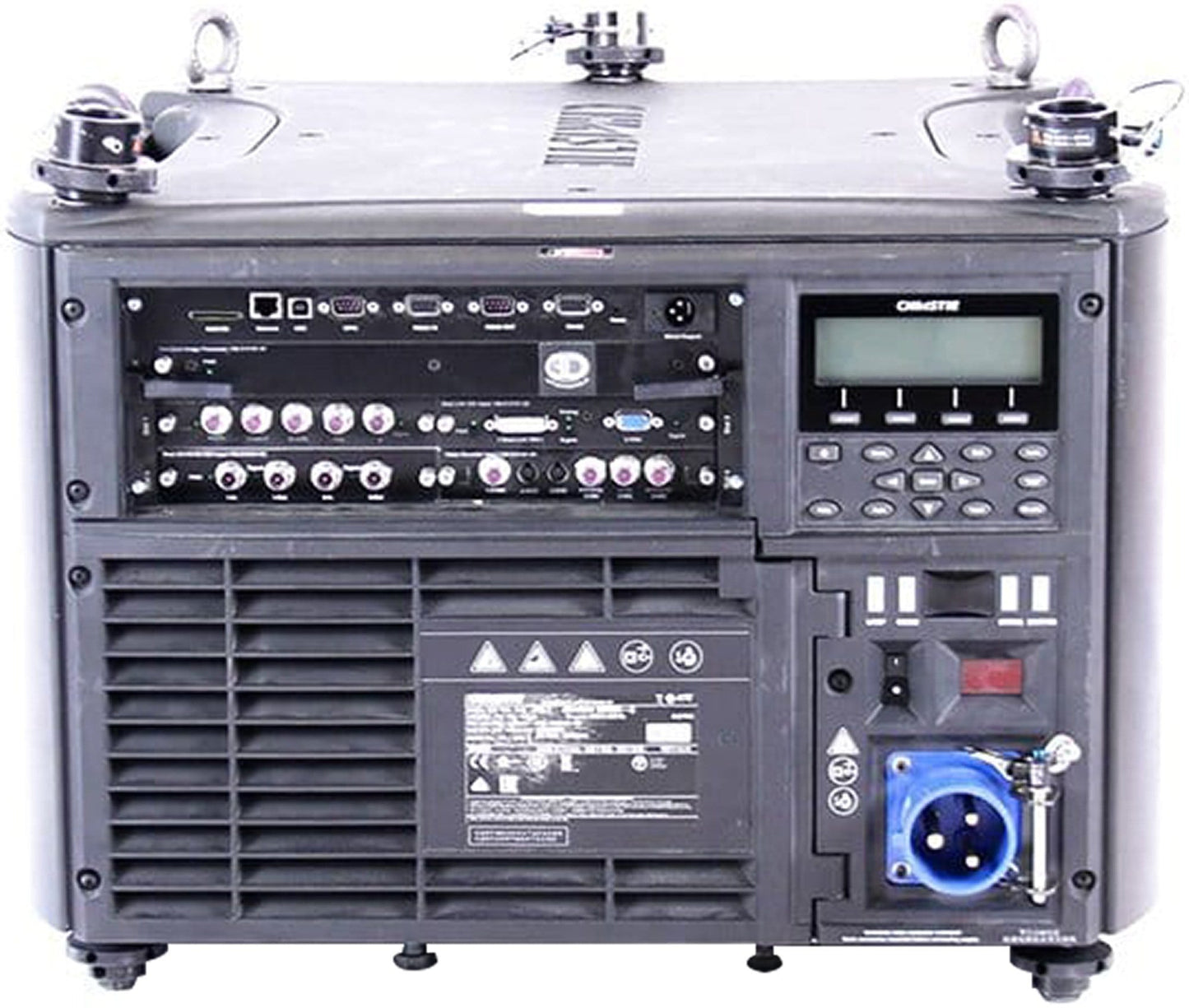

Christie Digital Roadster WU20K-J Video Projector

Christie Digital Roadster WU20K-J Video Projector

Includes Road Case, Must be purchased with compatible lens (sold separately)

Creating visually compelling displays is paramount to your success. That’s our business too, so we’ve made higher brightness, Christie® Twist™, 3D upgradability and flexibility standard in the Christie Roadster WU20K-J. You’ll see we’ve upgraded our existing Xenon 3DLP® platform with the features and functionality that you rely on to share, collaborate and create. Ideal for large venues - building displays, churches, classrooms, concerts, conference rooms, live events, tradeshows and more, the Roadster WU20K-J is fitted with the broadest range of high-quality lenses – all with Intelligent Lens System (ILS™) capabilities. You can use existing stacking hardware, lenses, lamps, input cards and other Christie accessories with this new line of projectors. This projector couples the benefits of Xenon illumination – for the most natural color accuracy and stability - with the next level of technology, performance and flexibility.

Features:

• WUXGA resolution (1920 x 1200)
• 20,000 center lumens
• Embedded Christie Twist™ for image warping and edge​ blending
• Variable contrast ratio of 1600-2000:1 full field | 650:1 ANSI for crisp, detailed images
• 3.0kW Xenon bubble lamp module
• Comprehensive Color Adjustment (CCA™)
• Dust-sealed engine
• Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
• Multiwindowing and screen processing (up to a 3x3 array)
• CT lens mount (optional)
• Yellow notch filter (optional)
• Set-up lights help users see menu displays in low-light environments
• Hybrid stacking
• User-replaceable lamps
• Built-in portrait capabilities
• Liquid cooling allows for operating temperatures up to 104°F (40°C)
• 3D capable model available in the Mirage Series
• 3D upgradable

Specifications:

• Image
  • Brightness: 20,000 center (18,000 ANSI) lumens
  • Contrast: 1600-2000:1 full field | 650:1 ANSI
  • Uniformity: 80% brightness uniformity
• Display
  • Type: 3DLP 0.96” DMD
  • Native resolution: WUXGA (1920 x 1200)
• Lamp
  • Type: 3.0kW Xenon bubble lamp module
  • Life: 750 hours typical lamp life
• Input
  • Standard
    • Analog
    • Dual link DVI
    • SD/HD-SDI
    • Video Decoder
  • Optional
    • Analog
    • Dual link DVI
    • SD/HD-SDI
    • Video Decoder
    • Twin HDMI
  • Signals
    • HDTV formats VGA through to QXGA (2048 x 1536)
    • Accepts all current HDTV/DTV formats
    • Multi-standard video decoder
    • Horizontal and vertical scaling, all inputs
  • Pixel clock
    • 165 MHz
  • Scan rates
    • 15 kHz to 120 kHz Horizontal
    • 23.97 Hz to 150 Hz Vertical
• Control and networking
  • RS232 In/Out
  • RS422 In
  • Ethernet (10/100)
  • USB Device
  • GPIO (RS232 9 Pin male connector)
  • Built-in, backlit LCD keypad
  • Remote control (with optional wired XLR connection)
• Lens options
  • Fixed
    • ILS Lens 0.73:1 SX+ / 0.67:1 HD*
    • ILS Lens 1.2:1 SX+ / 1.1:1 HD
  • Zoom
    • ILS Lens 1.25-1.6:1 SX+ / 1.16-1.49:1 HD**
    • ILS Lens 1.5-2.0:1 SX+ / 1.4-1.8:1 HD
    • ILS Lens 2.0-2.8:1 SX+ / 1.8-2.6:1 HD
    • ILS Lens 2.8-4.5:1 SX+ / 2.6-4.1:1 HD
    • ILS Lens 4.5-7.5:1 SX+ / 4.1-6.9:1 HD
    • ILS Lens 7.5-11.2:1 SX+ / 6.9-10.4:1 HD
  • Offsets
    • +/112% Vertical
    • +/54% Horizontal
    • (* +/-22%V +/6%H)
    • (** +/-82%V +/38%H)
• Enhanced feature sets
  • 3D upgradable
  • Embedded Christie Twist™
  • Embedded image tiling
  • Intelligent Lens System (ILS)
  • Liquid cooling
  • Advanced block artifact reduction
  • ChristieNET ™ Web interface
  • User-friendly, intuitive LCD keypad
  • Advanced Loop-Thru twin HDMI card
  • Set-up lights
  • Lamp memory module
  • User replaceable lamps
  • Advanced, 10-bit processing
  • Automatic shut off and ECO mode
  • Dust-sealed light engine
  • SNMP (simple network management protocol)
  • DHCP (dynamic host configuration protocol)
  • Hybrid stack
  • Compatibility with legacy accessories
• Power requirements
  • Operating voltage: 200 VAC to 240 VAC @ 50/60 Hz
  • Max current: 20 A @200V
  • Max power: 4000 W
  • Dissipation: 13,650 BTU/hr
• Dimensions
  • Dimensions: (L x W x H): 32.0 x 24.5 x 16.5" (815 x 621 x 419mm)
  • Shipping dimensions: (L x W x H): 41.0 x 32.5 x 29.5" (1041 x 825 x 749mm)
  • Weight: 160 lb (72.5 kg) (without lens)
  • Shipping weight: 200 lb (91 kg)
• Operating environment
  • Temp: 40 to 104° (5 to 40° C)
  • Humidity: 20 80% noncondensing
• Regulatory
  • Directives (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE)
  • Regulation (EC) No. 1907/2006 (REACH); CAN/CSA C22.2 No. 60950-1; UL 60950-1; IEC 60950-1; FCC, Part 15, Subpart B, Class A; EN55022/CISPR22 Class A; EN55024 / CISPR24
  • Certifications marks:
  • cULus (Canada and US)
  • CE (EU)
  • CCC (China)
  • GoST-R (Russia)
  • KC (Korea)
  • PSE (Japan)
  • C-Tick (Australia & New Zealand)
  • South Africa
