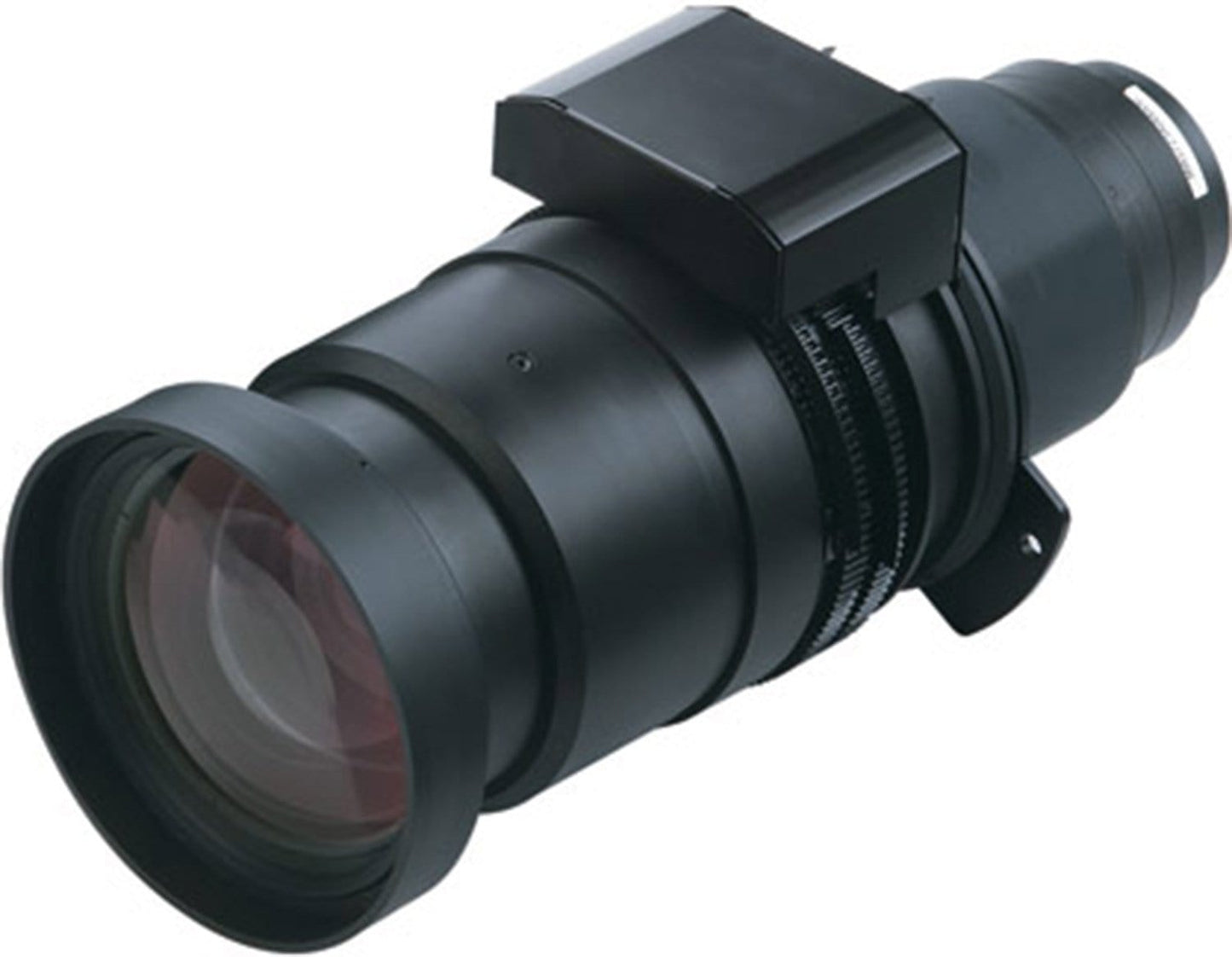

Christie Digital CMLENS4169 Projector Lens 4.1-6.9

The HD Projection ILS Zoom Lens from Christie is a lens incorporating the Intelligent Lens System (ILS). The ILS automatically recognizes and calibrates a lens when it is installed. Stepper-motor-based encoding ensures that motor drift does not occur, thus providing accurate and repeatable recall of all lens offset, zoom, and focus positions. When used with Christie M Series HD/WU products, this ILS zoom lens has a 4.1-6.9:1 throw ratio. If used with any Christie M Series SXGA+ products, the ILS zoom lens will provide a 4.5-7.3:1 throw ratio.

Specifications:

• Throw Ratio:
  • 4.1 to 6.9:1 (HD)
  • 4.5 to 7.3:1 (SXGA+)
• Projection Size: 61 to 764" / 154 to 1941 cm
• Lens Shift Percentage:
  • Vertical: ±120% (HD)
  • Vertical: ±100% (SXGA+)
  • Horizontal: ±42% (HD)
  • Horizontal: ±50% (SXGA+)
