Chauvet Professional EPIXLINE10IPX10 EPIX Line 10 IP 10-pack Road Case
Chauvet Professional EPIXLINE10IPX10 EPIX Line 10 IP 10-pack Road Case
SKU: EPIXLINE10IPX10
Available options
Description
Chauvet Professional EPIXLINE10IPX10 EPIX Line 10 IP 10-pack Road Case

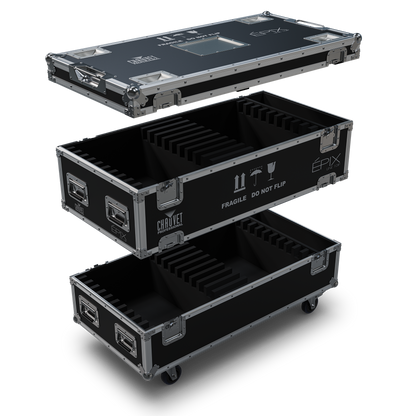

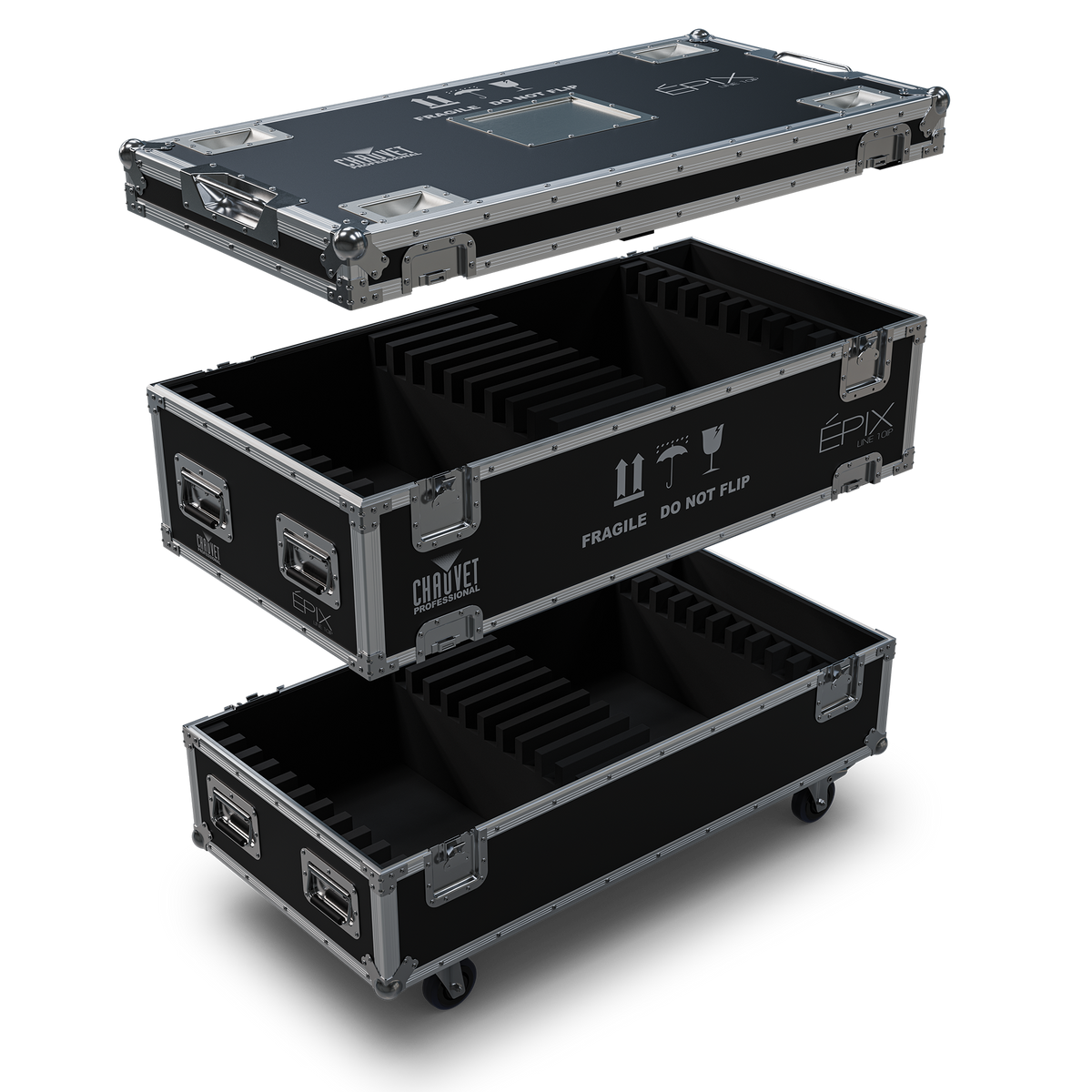

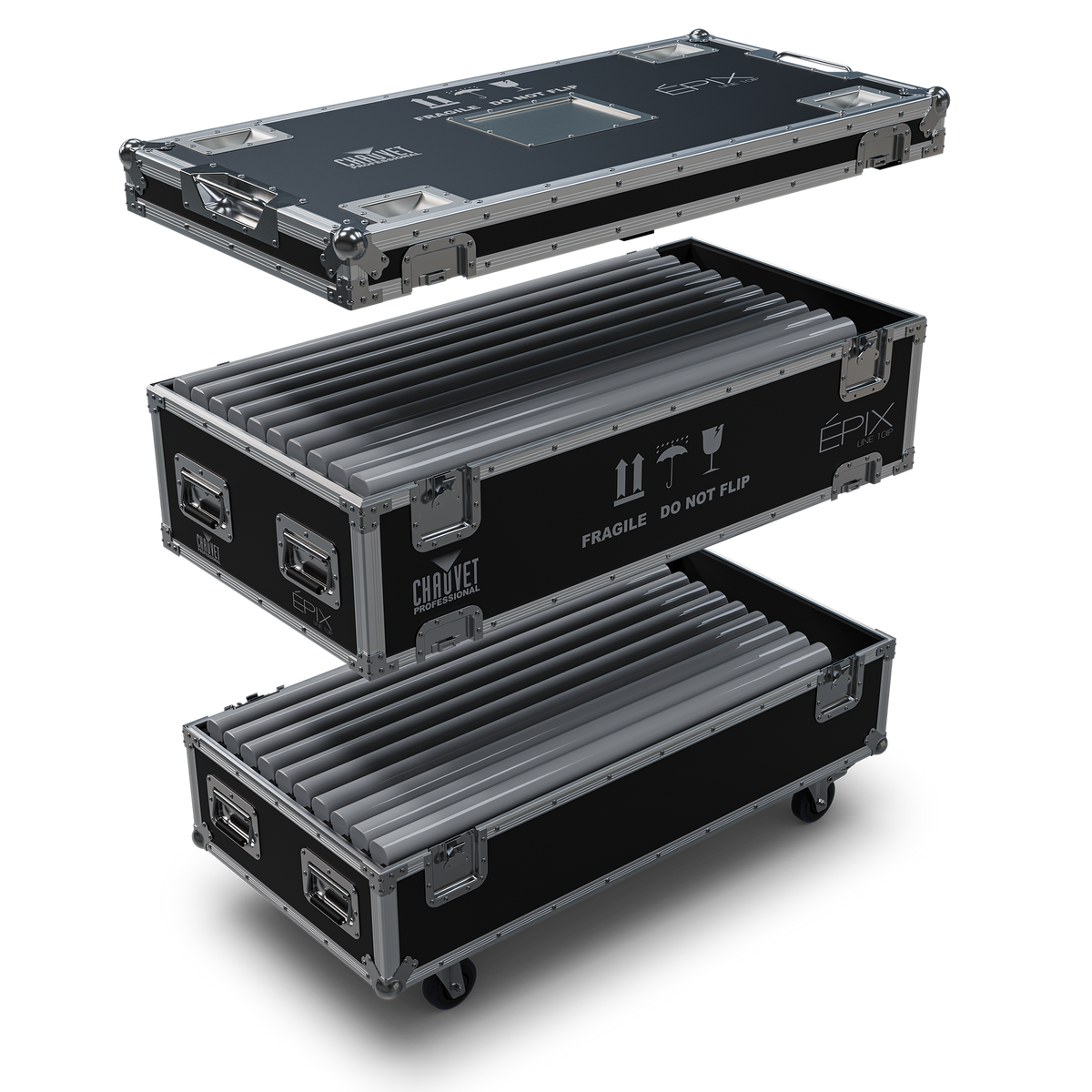

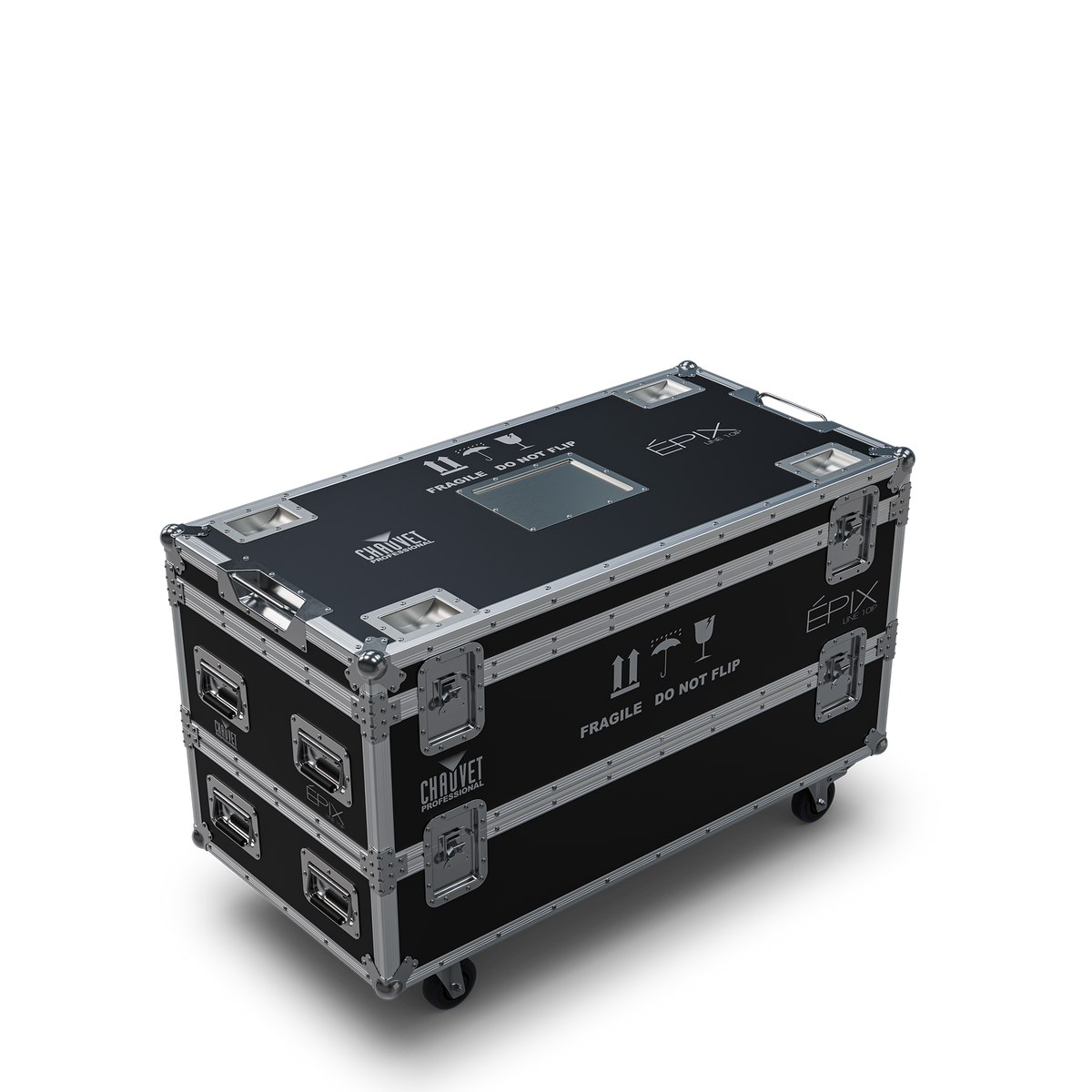

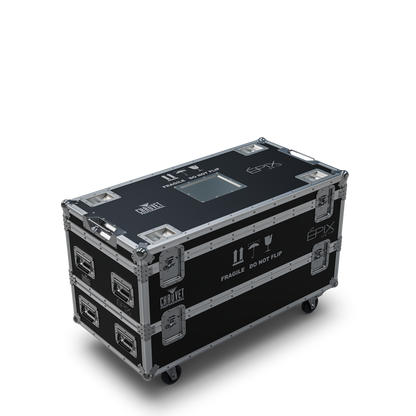

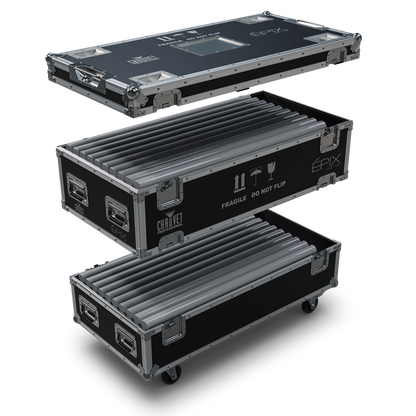

This custom road case is designed to transport and store the ÉPIX Line 10 IP fixture; it ships with 10 fixtures including two pre-mounted clamps for speedier setup. The stackable case features four heavy-duty casters and includes 20 dedicated compartments: 10 for fixtures and 10 for light filters, ensuring secure, organized transport. For added flexibility, it can also be configured to ship with 20 fixtures with filters preloaded on each fixture. Built for the demands of touring and rental applications, this road case provides a durable, efficient solution for protecting and deploying your lighting system.
Features
Complete Tour-Ready System
Includes ten fixtures, clamps, filters, and accessories in a single rugged case, providing a complete system ready for immediate deployment.
Built For The Road
The rugged, rolling road case design protects your fixtures and accessories from the rigors of transport, ensuring your gear arrives safely.
Configurable And Scalable
Ingeniously designed to be reconfigured, the case can expand to securely hold up to twenty fixtures, accommodating your growing production needs.
Efficient Production Workflow
Simplify logistics and accelerate load-in times by keeping all essential components for your linear pixel-mapping display organized and accessible in one place.
Specifications
Optical
-
Light Source
100 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
-
Beam Angle (open optics)
115.2°
-
Field Angle (open optics)
163°
-
Viewing Angle (open optics)
171.6°
-
Pixel Pitch
10 mm
-
Display Refresh Rate
4,900 Hz
Dynamic Effects
-
Strobe Rate
0 to 30 Hz
Construction/Physical
-
Weight
176 lb (79.8 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel
Connections
-
Power Supply (remote driver): Epix D4 IP
-
Physical Linking (Standard Mode): 10 inline EPIX Line 10 IP
-
Physical Linking (Hi Power Mode): 6 inline EPIX Line 10 IP
-
Data Connectors: 4-pin IP65 XLR
-
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
-
Cable Shielding: compatible with both shielded and unshielded cables
Control
-
DMX Channels: 2, 18, Groups of 5/10/25/50, or 300
Electrical
-
Input Voltage: 48 VDC
-
Power and Current (Standard): 21 W, .44 A @ 48 VDC
-
Power and Current (Hi Power): 32 W, .671 A @ 48 VDC
Required Accessories
- KLSTR Software
- Epix D4 IP Controller
Compatible Accessories
- EPIXMNTSPIGOT (Epix Mounting Bracket: Spigot Adapter 28mm)
- EPIXMNTANGLE (Epix Mounting Bracket: +/- 120° Angling Adapter)
- M12/1/2” BOLT
- Clamps
- RIGLINK 4-PIN XLR Cables
What's Included
- 10 EPIX LINE 10 IP
- 10 INTERLOCKING BRACKET
- 10 BLACK STEALTH SQUARE FILTER (INCLUDED)
- 10 MILKY WHITE ROUND FILTER (INCLUDED)
- 20 CTC-SLC CLAMPS (INSTALLED)
