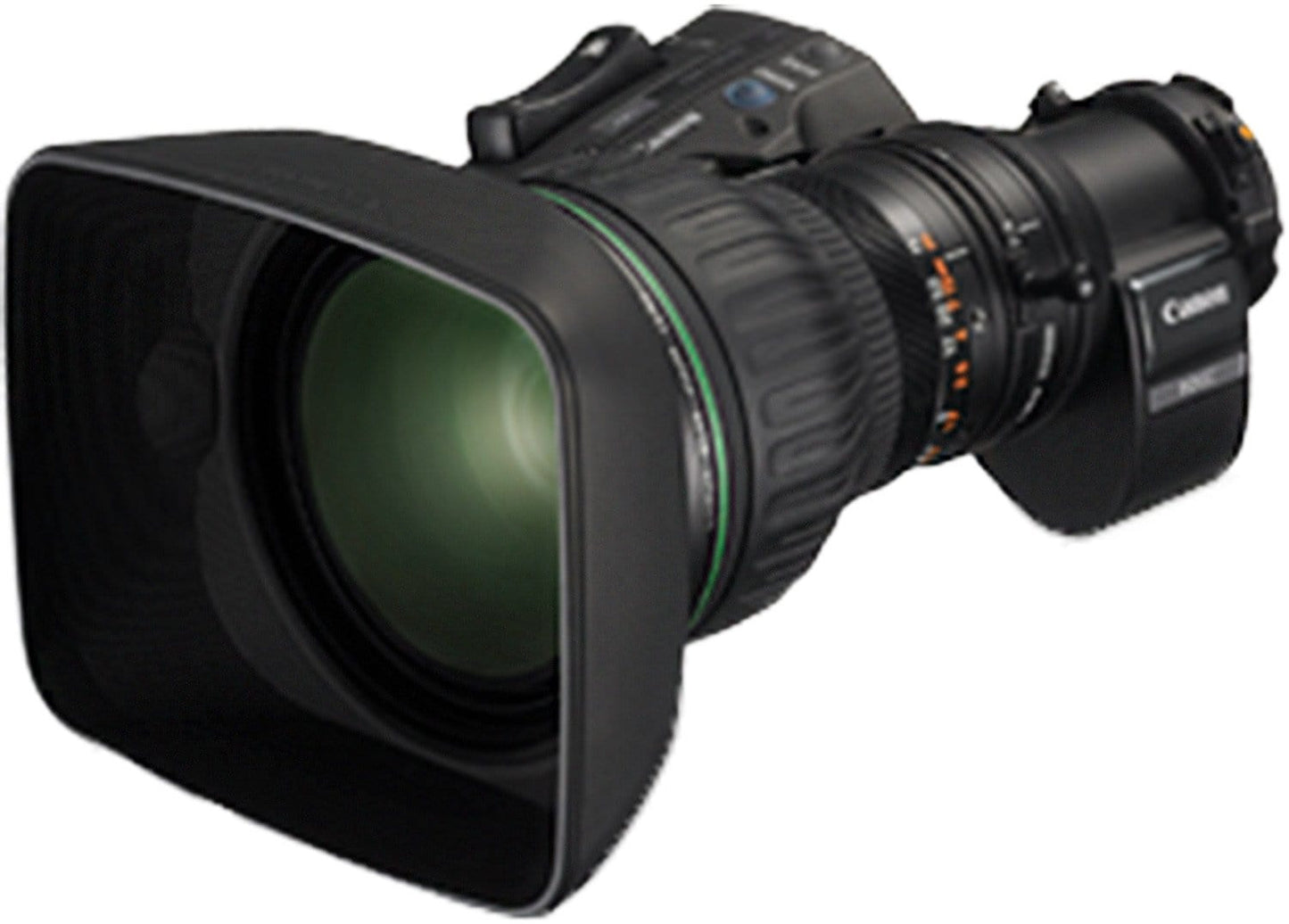

Canon LENS22XHDGC 2/3 22x 7.6-168 Millimeter F1.8 Doubler

The Lens offers 22x zoom ratio, 65° wide angle view, and delivers images in the 16:9 HD and 4:3 formats. It has a focal length of 7.6-168mm, and with the built-in 2.0x extender provides a focal length of 15.2-336mm, providing improved image framing for outdoor applications. The focus can be manually adjusted.

Features:

• 22x zoom ratio
• 65° wide angle view
• Delivers images in the 16:9 HD and 4:3 formats
• Features a focal length of 7.6-168 mm
• Focus adjustment - Manual
• Built-in 2.0x extender - provides a focal length of 15.2-336 mm and an improved image framing for outdoor applications
• Equipped with an enhanced digital drive featuring miniature 16-bit high resolution Rotary Encoder Devices that offers dynamic zoom speed range of 0.5 sec. to over a 5 min. super slow zoom, precise lens control, zoom, focus and iris control repeatability, and easy integration into virtual digital studio systems without any options
• Canon's Information Display provides precise customization of the enhanced digital functions
• Shuttle Shot - the Digital Drive, on memorizing any 2 focal lengths, can automatically "shuttle" between them, moving in either direction
• Frame Preset - an angle of view can be preset in either of 2 memories, and at the push of a button, the lens will zoom at the highest speed or in a preset zoom speed to the preset position
• Speed Preset - a specific zoom speed can be preset in memory, and at the push of a button, the zoom speed can be repeated as often as you wish
• Uses new optical designs - help provide enhanced quality images and maintain a fine balance between size, weight, and HD optical performance
• Incorporates special optical materials including Fluorite and Hi-UD glasses that help reduce curvature of field and chromatic aberrations
• Uses Large Diameter Aspherical lens for enhanced control of chromatic aberration, geometric distortion, and corner resolution

Specifications:

• Zoom Ratio: 22x
• Focus Adjusting: Manual
• Focal Length:
  • 1.0x extender: 7.6-168mm
  • 2.0x extender: 15.2-336mm
• Maximum Relative Aperture:
  • 1.0x extender: 1:1.8 at 7.6-116.3mm, 1:2.6 at 168mm
  • 2.0x extender: 1:3.6 at 15.2-232.6mm, 1:5.1 at 336mm
• Angular Field of View:
  • 1.0x extender (16:9) - 64.6° x 39.1° at 7.6mm, 3.3° x 1.8° at 168mm
  • 1.0x extender (4:3) - 60.1° x 46.9° at 7.6mm, 3.0° x 2.3° at 168mm
  • 2.0x extender (16:9) - 35.1° x 20.1° at 15.2mmm, 1.6° x 0.9° at 336mm
  • 2.0x extender (4:3) - 32.3° x 24.5° at 15.2mm, 1.5° x 1.1° at 336mm
• Minimum Object Distance (M.O.D.): 0.80m (10mm with Macro)
• Object Dimensions at M.O.D.:
  • 1.0x extender (16:9) - 95.0 x 53.4cm at 7.6mm, 4.4 x 2.5cm at 168mm
  • 1.0x extender (4:3) - 87.4 x 65.6cm at 7.6mm, 4.0 x 3.0cm at 168mm
  • 2.0x extender (16:9) - 47.5 x 26.7cm at 15.2mm, 2.2 x 1.3cm at 336mm
  • 2.0x extender (4:3) - 43.7 x 32.8cm at 15.2mm, 2.0 x 1.5cm at 336mm
• Weight: Approx. Mass: 4.0 lb (1.82 kg)
• Dimensions: 6.48 x 4.41 x 8.6" (164.7 x 112.1 x 218.6 mm)
• Packaging Info:
  • Package Weight: 9.85 lb
  • Box Dimensions (LxWxH): 19 x 12.9 x 12.6"
