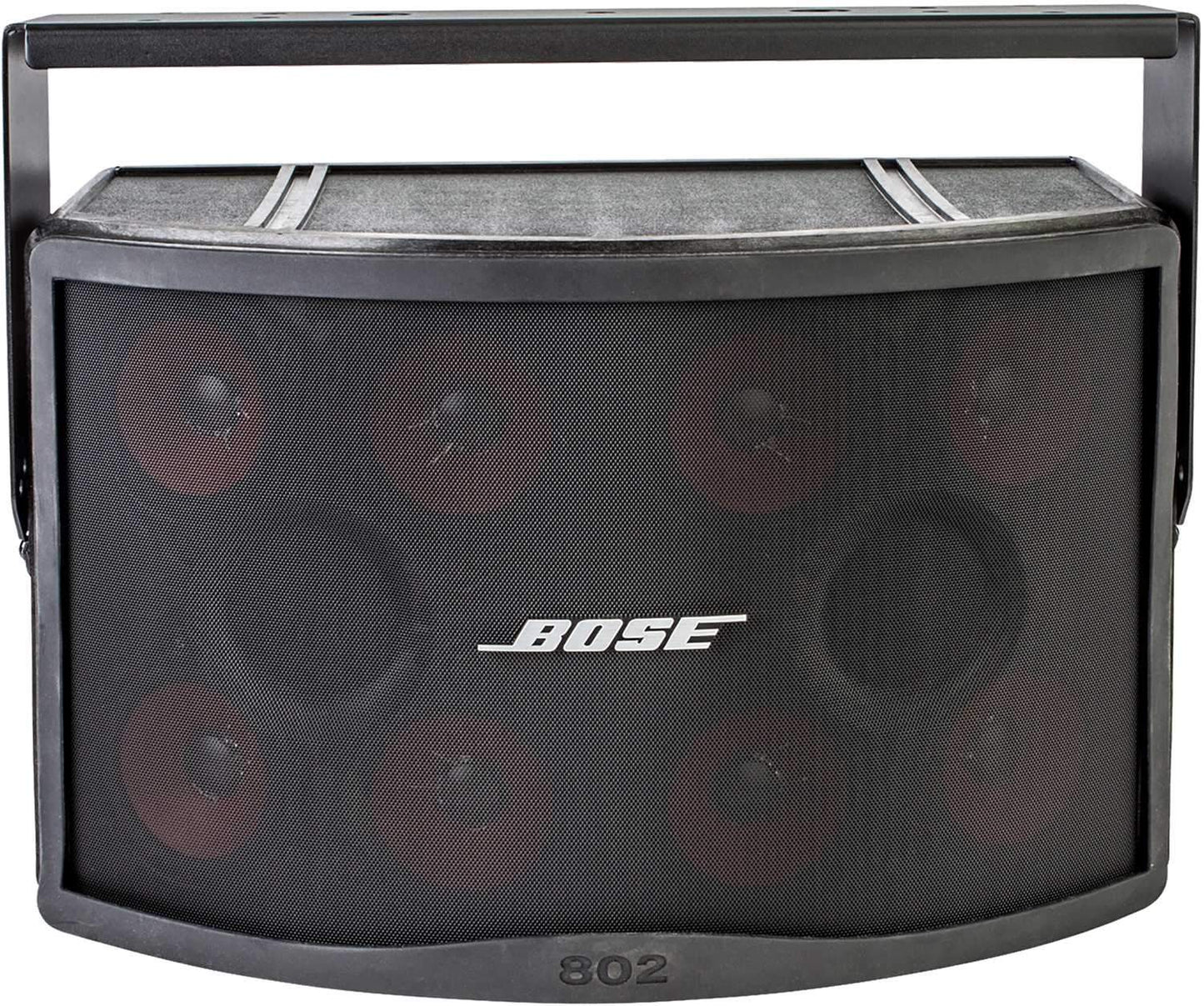

Bose Panaray 802IV Installation Speaker

Bose Panaray 802 Series IV Install Loudspeaker

The Panaray® 802® installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity. The Articulated Array® design, with wide 120° x 100° coverage, can reduce the number of required loudspeakers, while the 52-Hz low- frequency range can reduce the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.

Applications:

• Auditoriums
• Gymnasiums
• Restaurants and bars
• Fitness clubs
• Theme parks
• Outdoor event venues

Features:

• Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity.
• 8x Bose 4.5-inch full-range drivers for legendary reliability
• 120° x 100° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required
• 52 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels
• 123 dB Peak SPL for sound-reinforcement and foreground music
• Rugged, lightweight enclosure with threaded inserts for easy installations
• Weather-Rated Design for indoor or outdoor installations
• Requires Active Equalization

Specifications:

• Frequency Range (-10 dB): 52 Hz - 15 kHz
• Nominal Coverage Pattern (H x V) : 120° H x 100° V
• Long-Term Power Handling:
  • Bose extended-lifecycle test?: 240 W
  • AES transducer test?: 300 W
• Power Handling, Peak :
  • Bose extended-lifecycle test?: 960 W
  • AES transducer test?: 1200 W
• Sensitivity (SPL / 1 W @ 1 m): 92 dB SPL
• Calculated Maximum SPL @ 1 m:
  • Bose extended-lifecycle test?: 116 dB SPL
  • AES transducer test?: 117 dB
• Calculated Maximum SPL @ 1 m, peak
  • Bose extended-lifecycle test?: 122 dB
  • AES transducer test?: 123 dB
• Nominal Impedance: 8 ?
