Blackmagic Design MSC4K Micro Studio 4K Camera

The Blackmagic Micro Studio Camera 4K is a compact Ultra HD camera designed for live productions. It features the same image sensor found in Blackmagic's Studio Camera 4K, which supports 3840 x 2160p video up to 30 fps and 1080p video up to 60 fps. The camera is equipped with an active MFT mount that can accept native MFT lens or be adapted to a wide range of other modern and vintage lenses, including B4 lenses. It outputs 10-bit 4:2:2 video via 6G-SDI and can be remotely controlled from an ATEM switcher using SDI control protocol. The camera packs many professional studio features into a compact form factor, including a built-in color corrector, talkback, tally indicator, PTZ control output, and B4 lens control output.

Features:

• Compact Size for Live Productions
• Ultra HD Image Sensor
• Active Micro Four Thirds Lens Mount
• Expansion Port
• Remote Camera Control
• Broadcast Connections
• Audio
• Built-In Talkback
• Canon LP-E6 Battery Compatible
• Camera Setting Adjustment

Specifications:

• Camera
  • Sensor Size" 13.056 x 7.344 mm
  • Lens Mount" Active MFT
  • Resolutions & Frame Rates: 3840 x 2160p 23.98/24/25/29.97/30
  • 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1920 x 1080i 50/59.94
• Connections
  • SDI Video Output: 1 x 6G-SDI (DIN 1.0/2.3 connector), 10-bit 4:2:2
  • SDI Video Input: 1 x 6G-SDI (DIN 1.0/2.3 connector), 10-bit 4:2:2
  • SDI Audio Output: 2-channel embedded audio support in SDI stream
  • HDMI Video Output: 1 x HDMT (Type A), output is always 1080p
  • HDMI Audio Output: 2 channels (48 kHz, 24-bit)
  • Analog Audio Input: 1 x 3.5 mm stereo mini jack (mic or line level)
  • Analog Audio Output: 1 x 3.5mm stereo connector (for stereo headphones, compatible with iPhone headsets for talkback)
  • Expansion Port:
    • 1 x DB-HD15 serial connector supports:
      • LANC input
      • 1 x S.Bus channel input
      • PTZ output
      • Genlock input
      • B4 lens control output
  • Remote Control: Over SDI via ATEM Switcher CCU protocols or via expansion port using LANC or S.Bus.
  • Computer Interface: USB 2.0 Mini-B port (for software updates and configuration)
• General
  • Built-In Microphone: Integrated stereo microphone
  • Mounting:
    • 1 x 1/4"-20 thread (top)

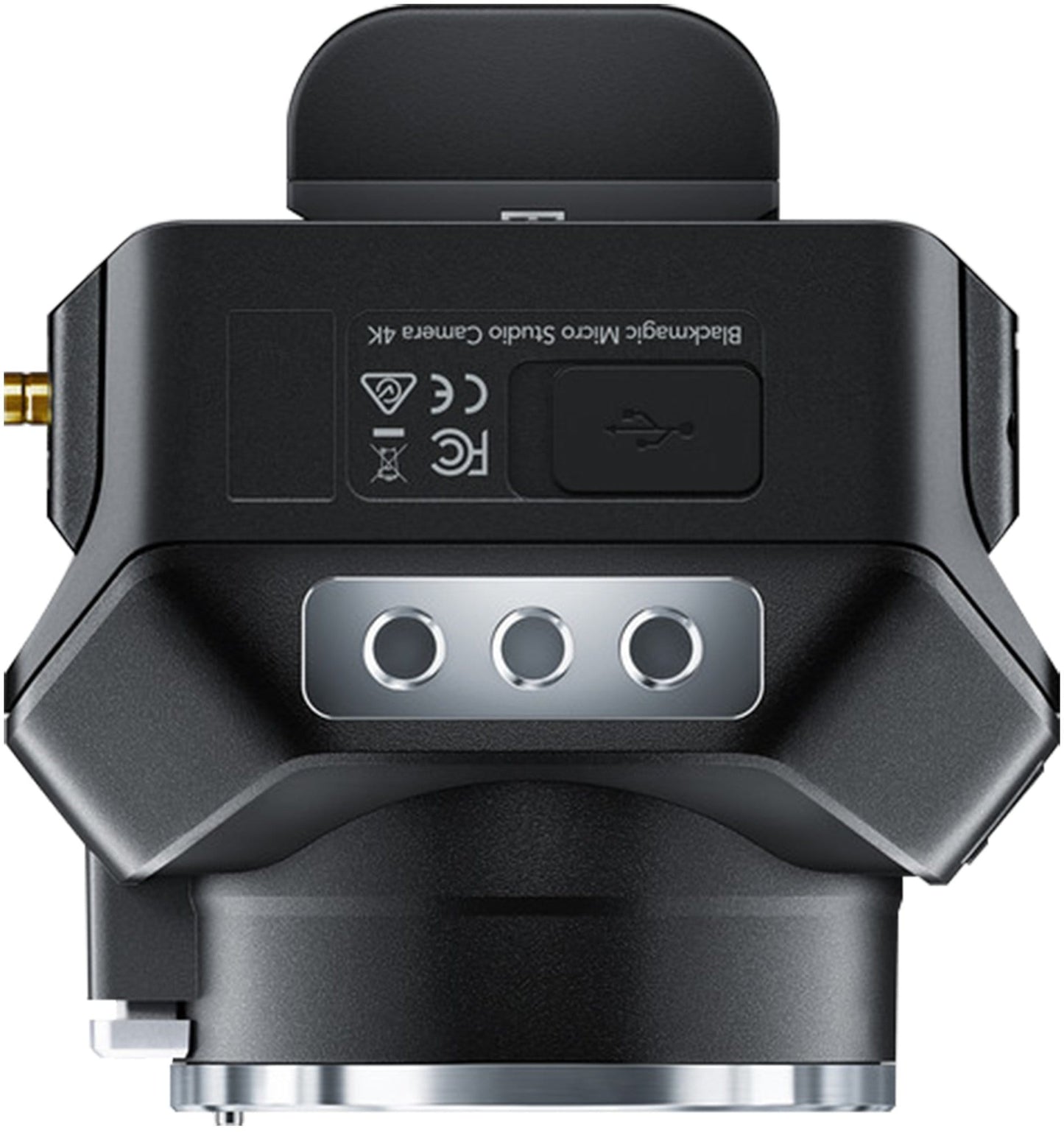

    • 3 x 1/4"-20 thread (bottom)
  • Power: 12 to 20 VDC
  • Battery Type: Canon LP-E6
  • Battery Life: Approx. 1 hour 10 minutes
  • Operating Temperature: 32 to 104° F (0 to 40° C)
  • Storage Temperature: -4 to 113° F (-20 to 45° C)
  • Relative Humidity: 0 to 90% non-condensing
  • Dimensions: 3.25 x 2.74 x 2.57 (8.26 x 6.96 x 6.53 cm)
  • Weight: 10.7 oz. (303.34 g)
• Packaging Info
  • Package Weight: 2.15 lbs.
  • Box Dimensions (LxWxH): 8.2 x 7.35 x 3.25"
