Ashly XR-4001 Stereo 4-Way Crossover 2U

Write a review Q&A SKU: XR-4001 Solotech ID#:
Unfortunately the Ashly XR-4001 Stereo 4-Way Crossover 2U is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.
 View full details
Unfortunately the Ashly XR-4001 Stereo 4-Way Crossover 2U is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Description

The XR-4001 is a stereo four-way 24dB per octave electronic crossover in a two rack space metal chassis. Has separate front panel input level controls on all channels for interfacing with broad range of nominal system levels.

Each channel has independent, infinitely variable adjustment of crossover frequency with controls located on the front panel. Provides a total range of 200:1 when used in conjunction with the unit's adjacent RANGE switch. Each RESPONSE control calibrated in decibels on each channel to adjust the damping of that filter at the crossover point, thus allowing variable system response adjustment to specific site requirements. Includes separate clip indicators to monitor all internal amplifiers for any possible overload conditions.

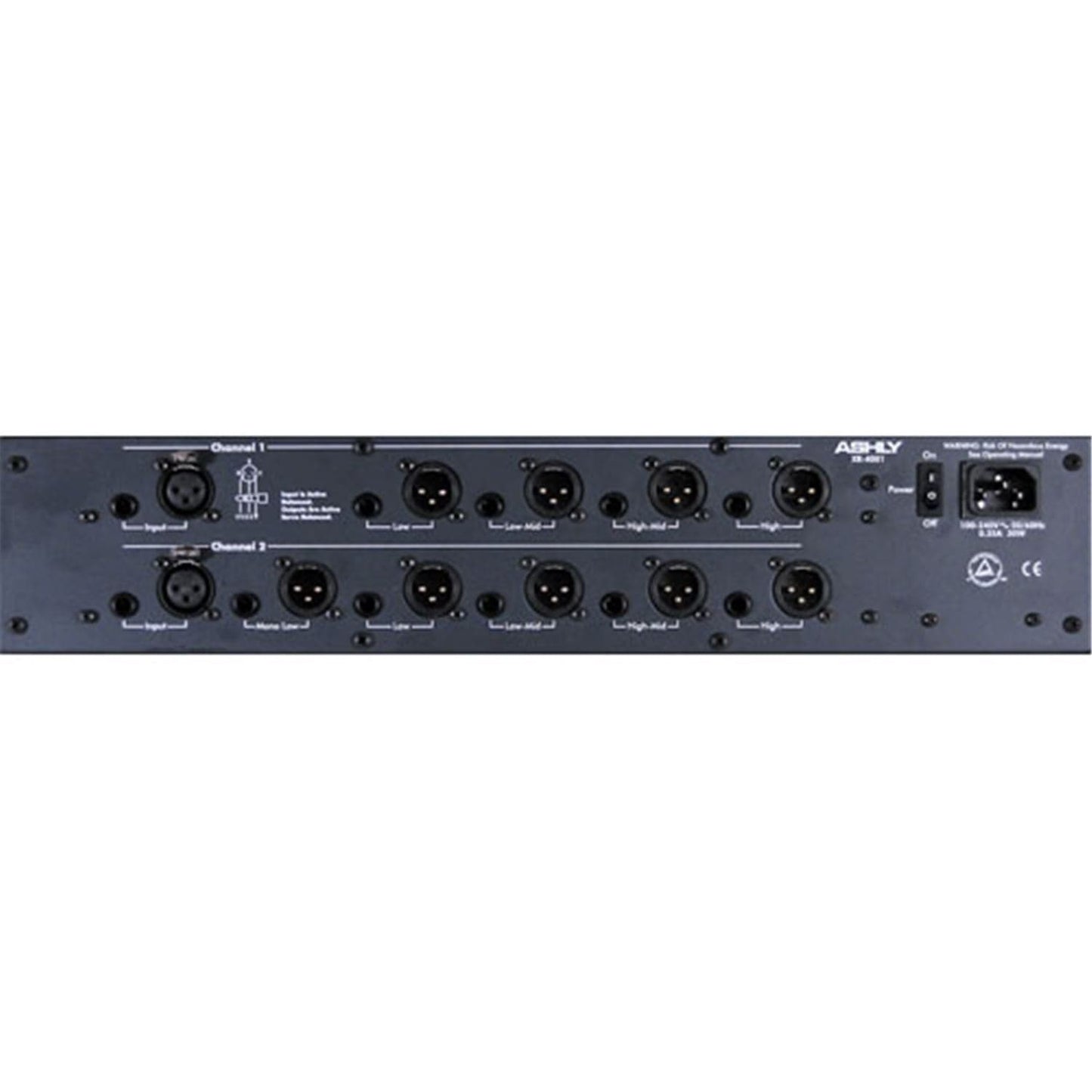

Each channel of the crossover unit has a separate output level control and mute switch located on the front panel. Separate inputs and outputs for each channel on 1/4" TRS phone jacks and XLR connectors, any of which may be used balanced or unbalanced. In addition, there are independent mono summed output labeled MONO LOW OUT (on a separate 1/4. TRS jack and an XLR jack).
