Arri SkyPanel S120-C

Write a review Q&A SKU: TZ-ARRIS120C Solotech ID#: 100888191
Sale
Sale price $1,695.00 USD
View full details

Description

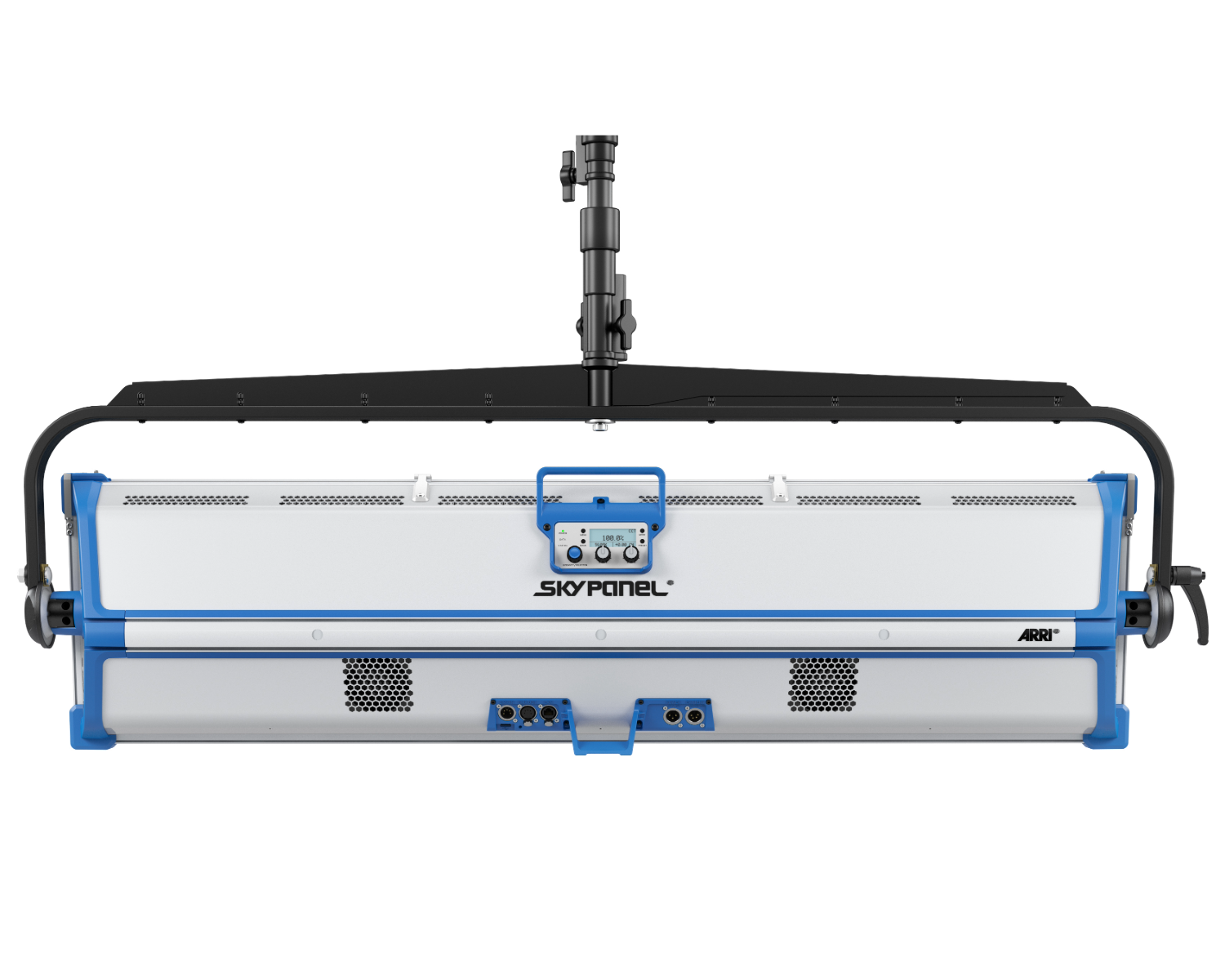

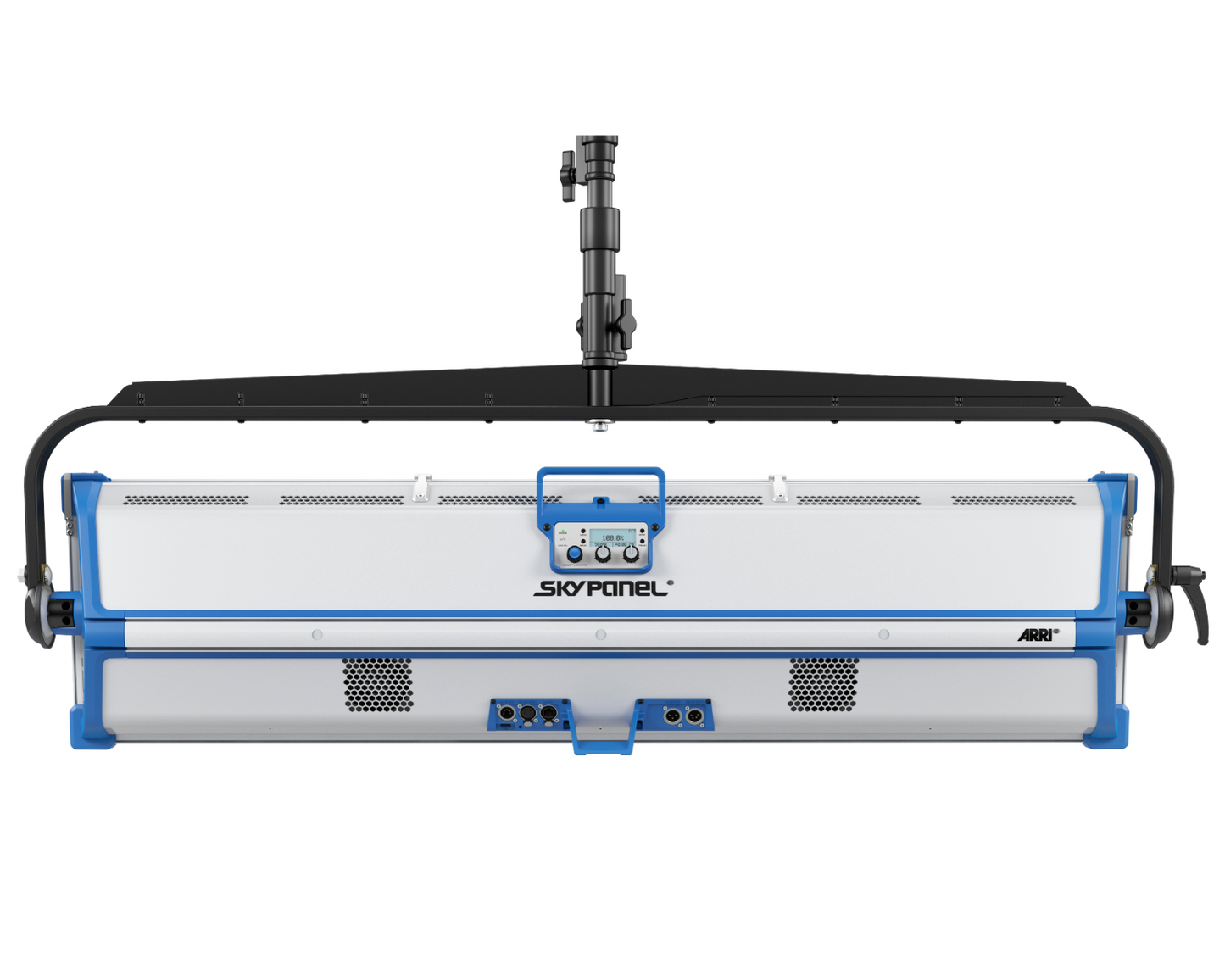

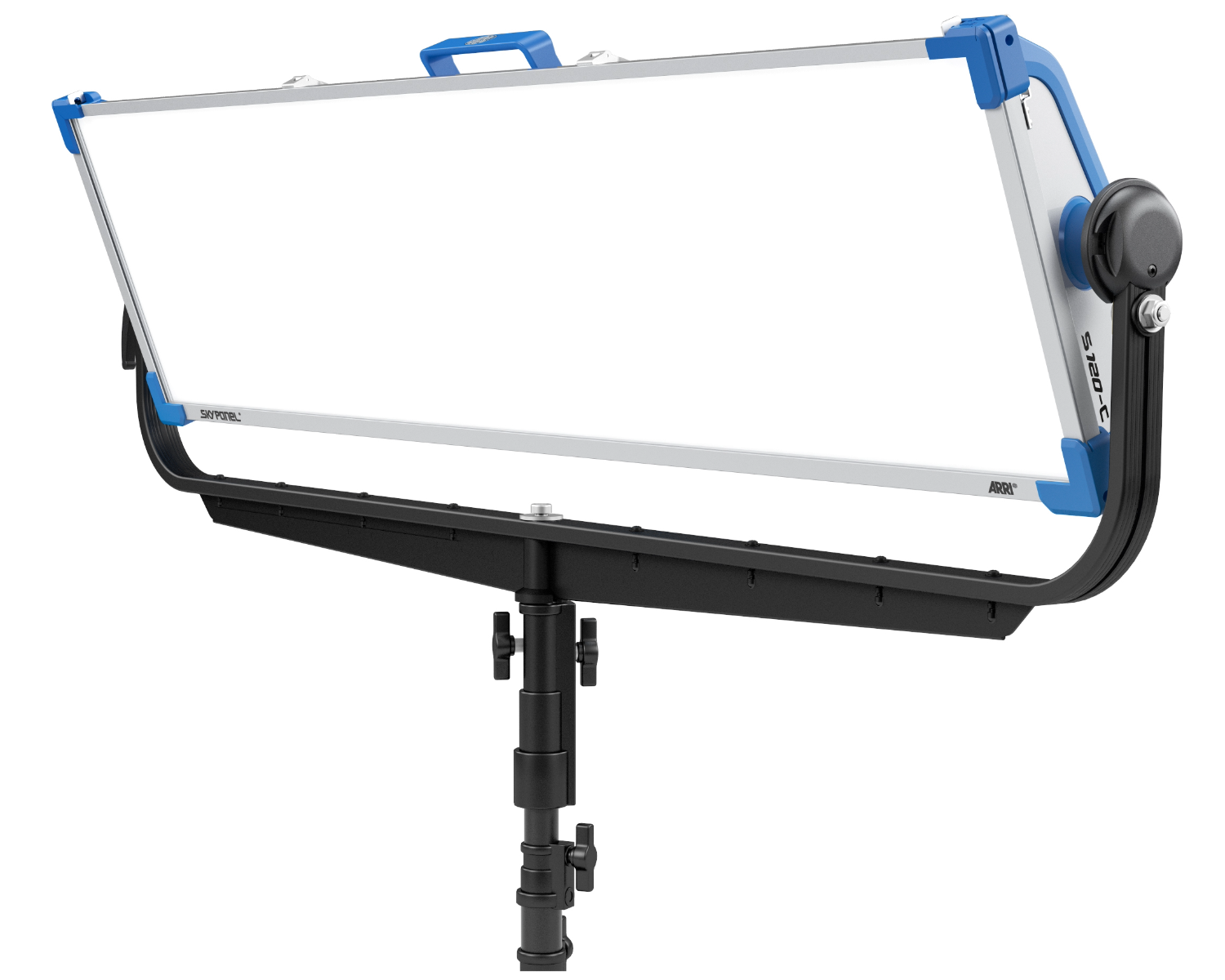

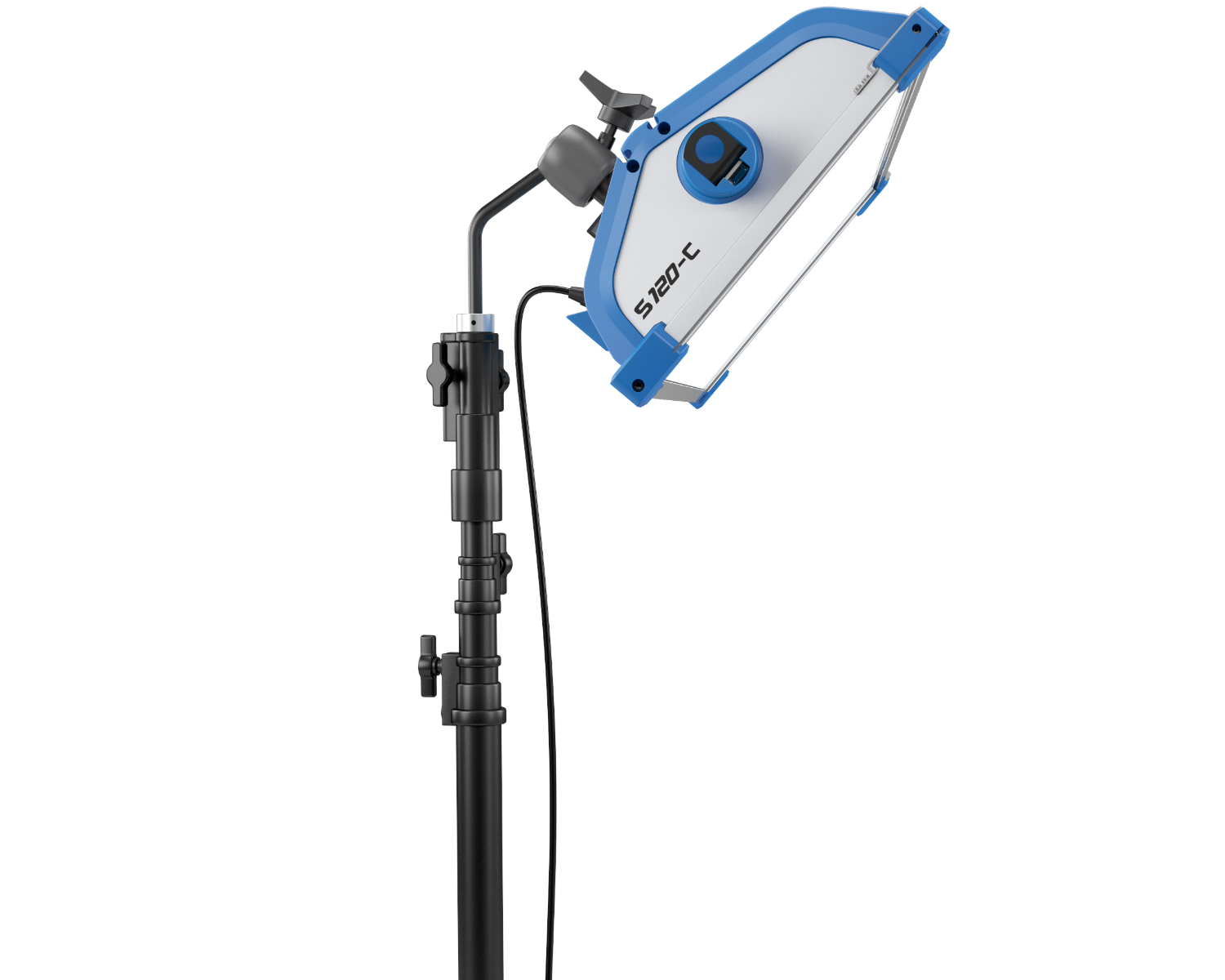

Arri SkyPanel S120-C



Include :
1x SkyPanel LED Softlight with Manual Yoke (L0.0012956)

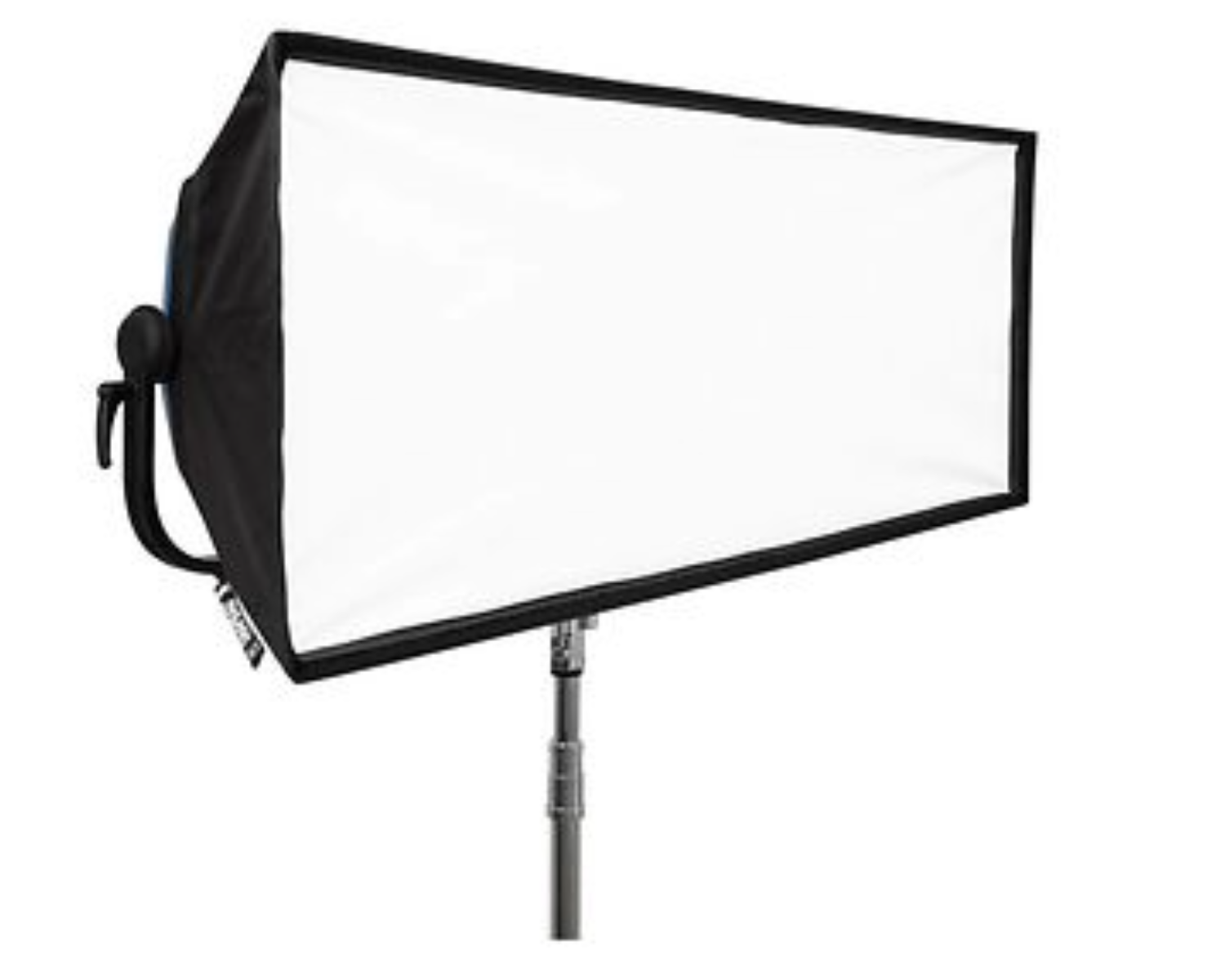

1x Snapbag for ARRIS120C (L2.0010383)

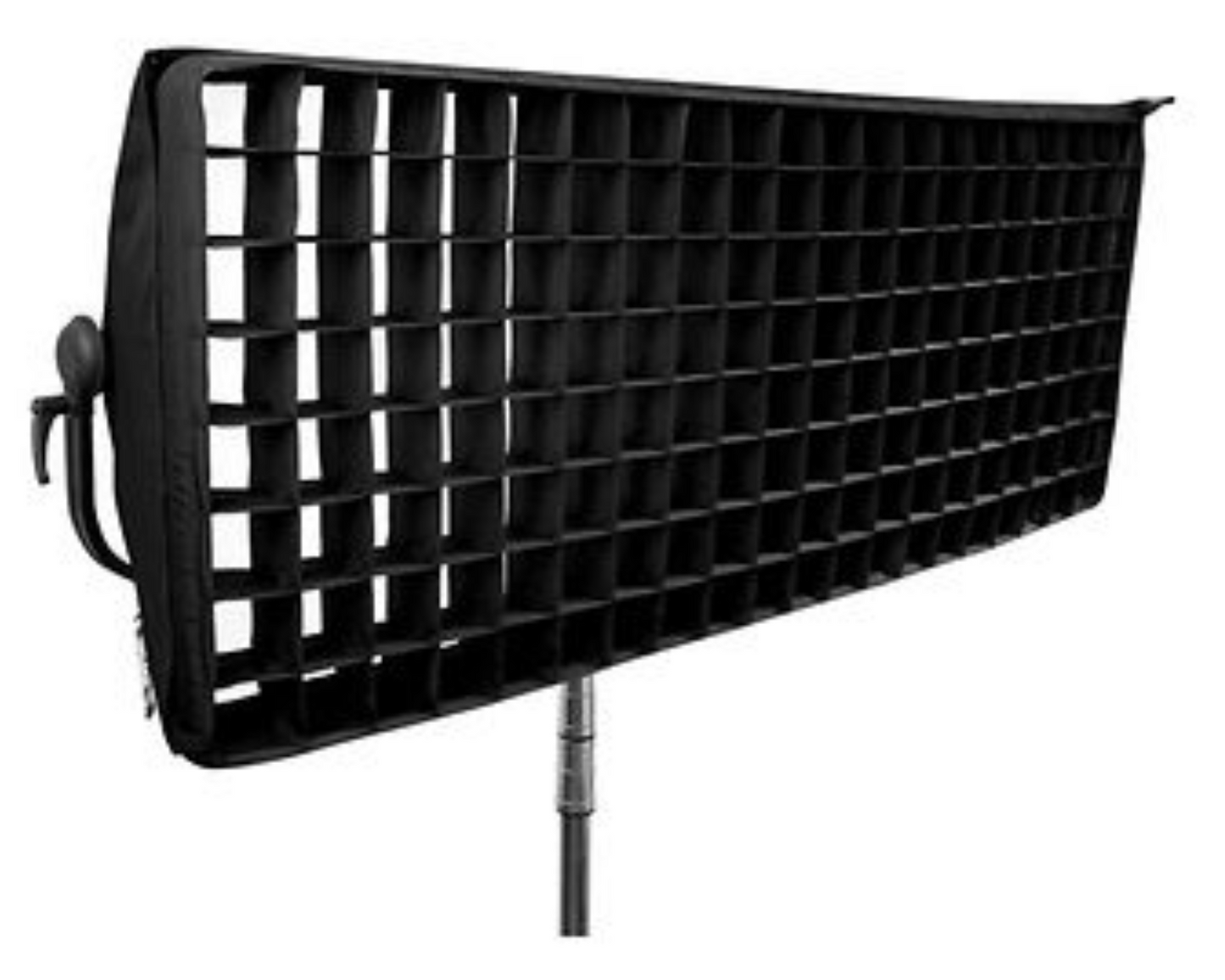

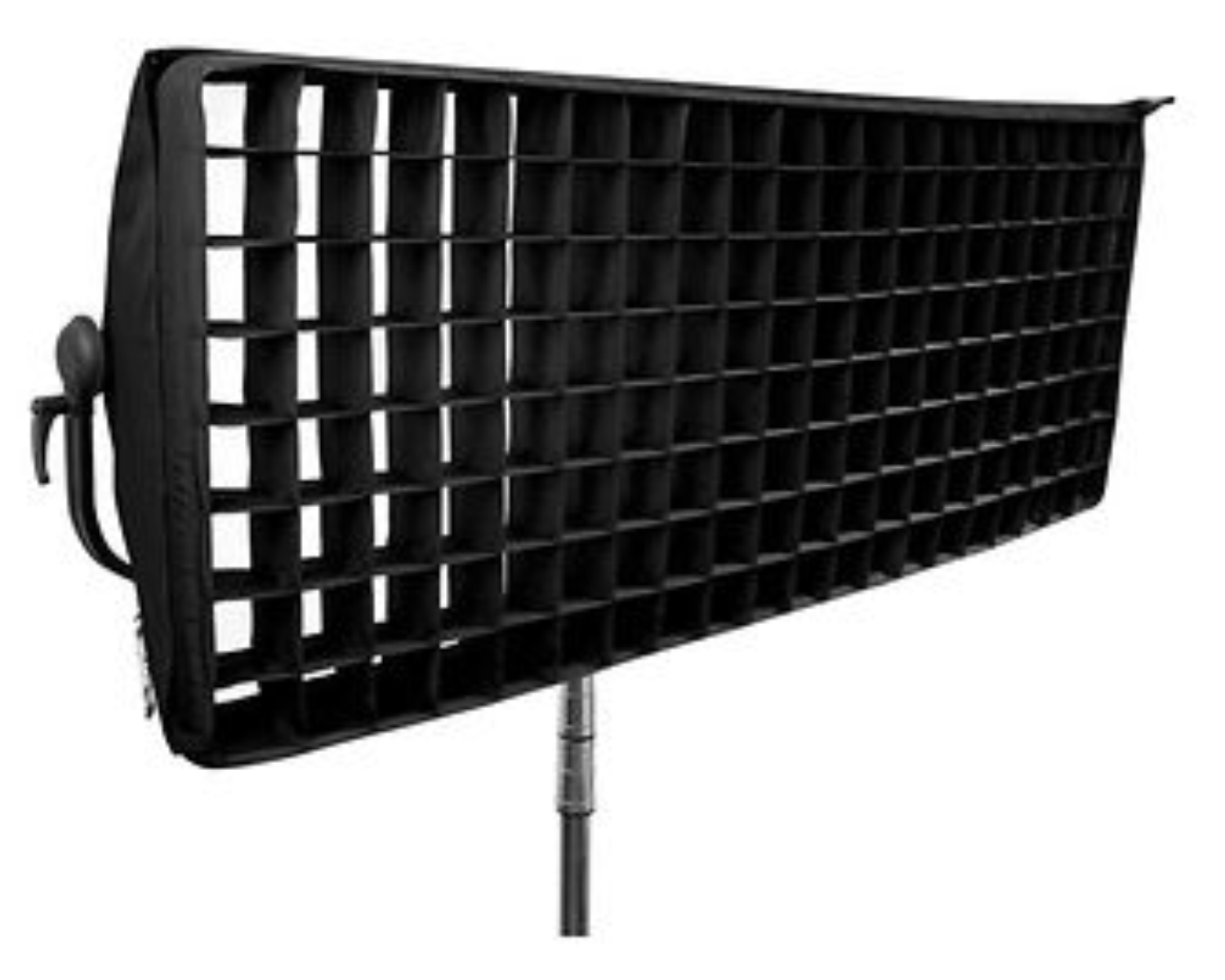

1x Snapgrid 40 Degree for ARRIS120C (L2.0010381)
1x SkyPanel ARRIS 120 Psu [110~240V, 50/60Hz, 48Vdc] (L2.0012491)
1x superclamp adapter for SkyPanel Psu (L2.0006921)

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, color, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI.

Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Color) versions are fully tuneable; correlated color temperature is adjustable between 2,800 K and 10,000 K, with excellent color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S120 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

Features

  • The ARRI SkyPanel S120-C is an impressive soft light fixture, whether for horizontal or vertical use.
  • Twice the length as the S60-C with a larger light aperture for superior lighting.
  • Consumes less than 400 watts and provides a high efficacy of 90 lumens/watt.
  • Lamphead Type: LED Soft Light
  • Optical System: Swappaple Soft Diffusion Panel
  • Power Consumption: 400 W Maximum
  • Lamphead Voltage Input: 48 V DC
  • Light Aperture / Lens Diameter in mm: 1290 x 300 mm
  • Light Aperture / Lens Diameter in inch: 50.8 x 11.8"
  • Beam Angle: 105° (Half Peak Angle)
  • Handling: Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt / Center Mount Yoke
  • Mounting: 28 mm Spigot (Junior Pin)
  • Tilt Angle: +/- 90°
  • Lamphead Power Connection: Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
  • Battery Connector: Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
  • Battery DC Voltage Range: 23 to 36 V DC
  • Battery Mode Light Output: 50 % of total output
  • Lamp Type: RGBW LED Light Engine
  • White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
  • Colored Light: Full RGB+W Color Gamut with Hue and Saturation Control
  • Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
  • Color Rendition: CRI Average > 95, TLCI Average > 90
  • Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
  • Dimming: 0 to 100 % continuous
  • Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
