Apogee DA-16X 16-Out D/A Converter

Apogee DA-16X 16-Out D/A Converter

The DA-16X, Apogee’s latest and most advanced digital to analog converter, takes the legendary quality of Apogee a significant step forward. Features such as a redesigned power supply, standard 192kHz sampling rates, the C777 clocking technology found in Big Ben, and optional Pro Tools HD and FireWire expansion cards, make the DA-16X the most powerful and flexible D-to-A converter ever

Features:

• Advanced High-Definition Conversion
• C777 Clocking used by Big Ben
• Advanced Option Routing
• Universal Connectivity
• High Performance Output

Specifications:

• ADC: Not applicable
• DAC: 24-bit
• Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192kHz
• Analog In: Not applicable

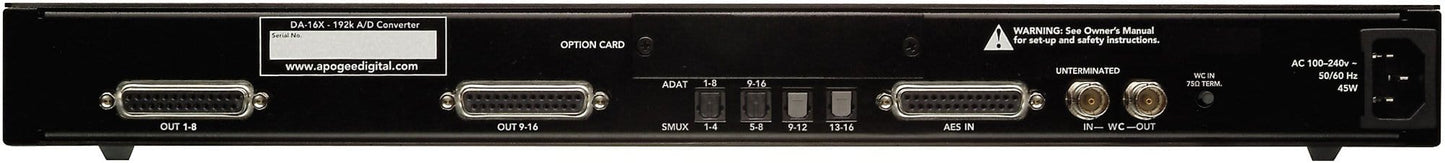

• Analog Outputs: 2 x D-sub 25pin connectors providing 16 channels of balanced audio output (requires appropriate optional breakout cables)
• Digital Input Connectors:
  • 1 x D-sub 25pin connector providing 16 channels of AES/EBU (requires appropriate optional breakout cables)
  • 4 x TosLink optical supporting ADAT and SMUX protocols
• Digital Output Connectors: Not applicable
• Word Clock:
  • 1 x BNC 75Ω Word Clock In, with switchable termination
  • 1 x BNC 75Ω Word Clock Out
• Dynamic Range: 118dB, A-weighted
• Frequency Response: 5Hz to 20kHz (+/- 0.2dB) @ 44.1kHz sampling rate
• THD + N: -107dB
• Dimensions: 1U 19" rack enclosure
• Weight: Not specified by manufacturer
• Specialties: Option slot allows one X-type card to be installed for Firewire, Pro Tools HD and or other future format connectivity
