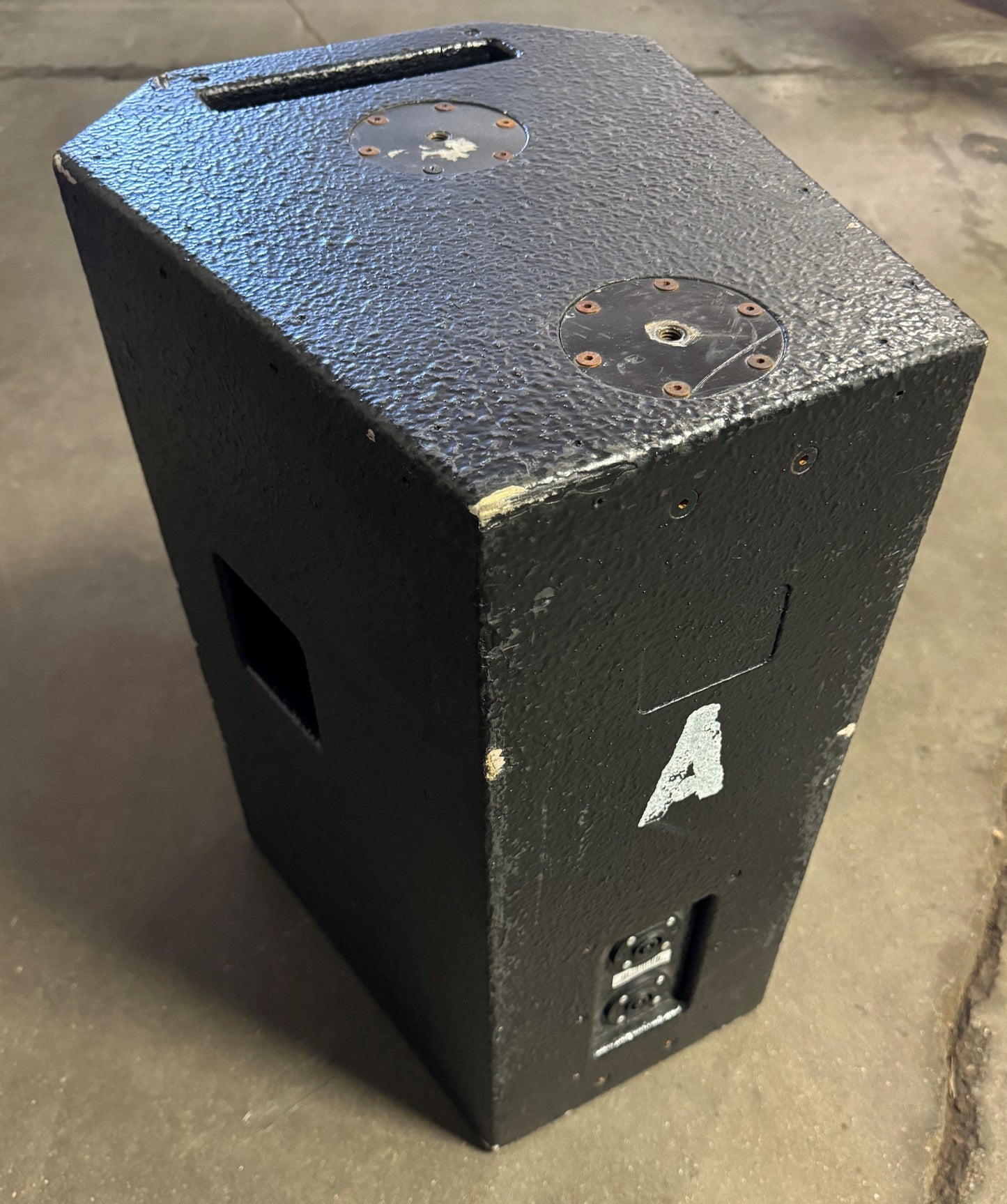

Apogee AE-5 Arrayable Loudspeaker System

Apogee AE-5 Arrayable Loudspeaker System

Road Cases available when ordered in pairs.

The AE-5two-way, bi-amped system is the flagship of the Apogee line. This fully arrayable system functions brilliantly when used alone or as a building block for a large sophisticated system, thus making it one of the most versatile loudspeakers ever developed.

Specifications:

• Format: Bi-amped/Two-way/Electronically-coupled
• Dispersion: H: 90° x V: 45°
• Frequency Response (1m on axis): 53 Hz to 17 kHz ± 3 dB
• Max. SPL (@1m): 125 dB cont./131 dB peak
• PTML (peak transient mechanical limit): 144 dB
• Sensitivity (1W @ 1m):
  • LF: 99 dB/100 Hz to 1 kHz
  • HF: 106 dB/1 kHz to 20kHZ
• Nominal Impedance: 8 ohms, each driver
• Max. Power Handling:
  • LF: 300W cont./1200W peak
  • HF: 150W cont./600W peak
• Dimensions:
  • front: 14"(356mm) W x 23"(584mm) H
  • rear: 9.3"(236mm) W x 23"(584mm) H
  • depth: 16.5"(419mm)
• Weight: 76 lb. (34.5 kg)
