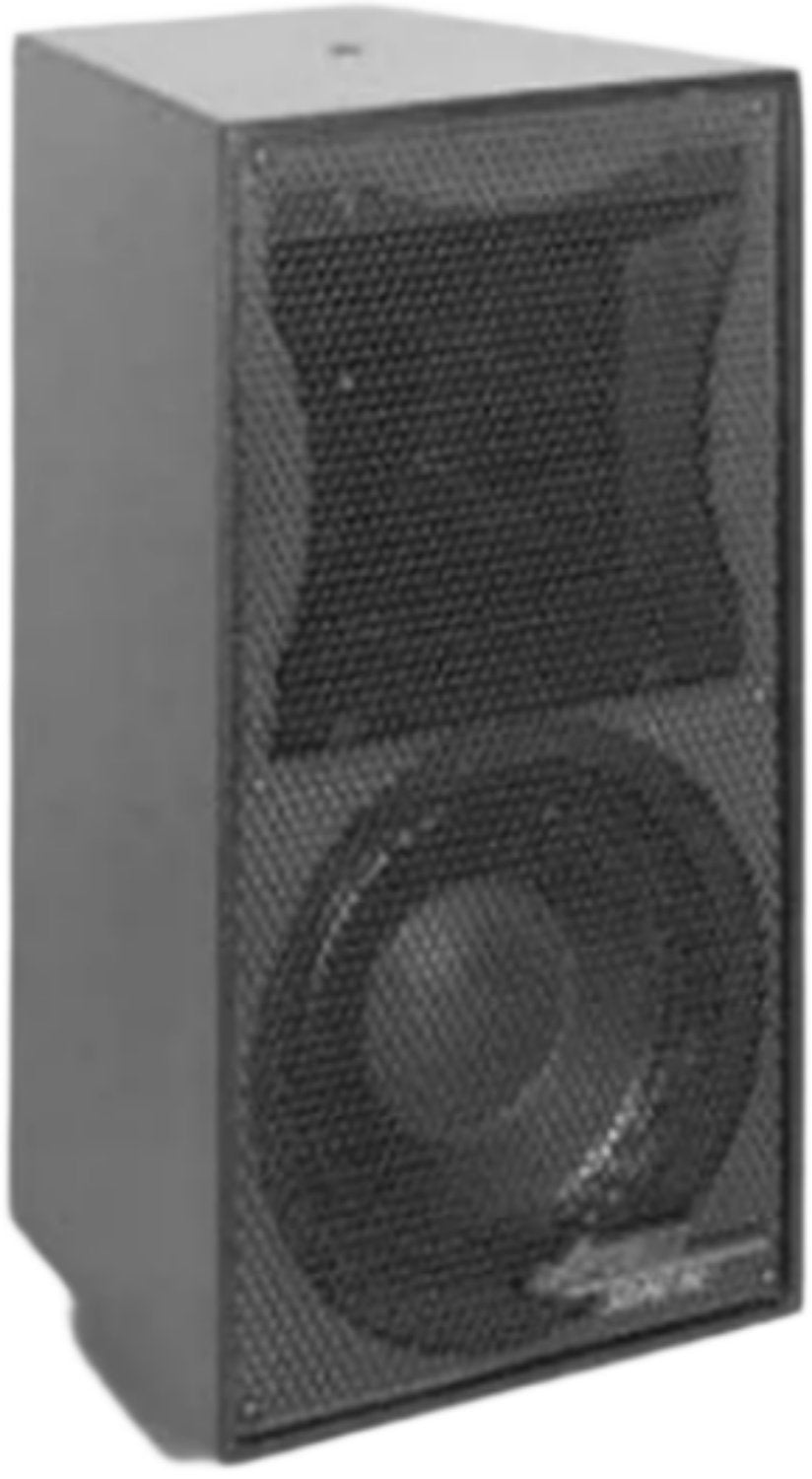

Apogee ACS-SAT3-W Two-Way 6-in Loudspeaker (White)
The ACS-Sat3 features a horn-loaded 1" phenolic high frequency driver and a 6" cone driver. Both drivers have exceptional cooling and damping provided by magnetic fluid. The Sat3 has been engineered to perform optimally as a high-power speech reinforcement speaker augmenting a large main system or as a small, high power full-range system by adding a subwoofer such as the ACS-110.
Specifications:
- ENCLOSURE TYPE: 20 degree trapezoidal
- FORMAT: Mono-amp, two-way. Controller optional
- DRIVER COMPLEMENT:
- Low Frequency Apogee 6" (152mm) permanent magnet cone type driver
- High Frequency Apogee 1" (25mm) phenolic dome
- Nominal Impedance 8 ohms
- SENSITIVITY: 89.5 dB SPL / 130 Hz - 15 kHz, 1 watt @ 1 meter
- FREQUENCY RESPONSE: 130 Hz - 15 kHz ± 3 dB, 1m on axis
- SOUND PRESSURE LEVEL: 108 dB continuous, 114 dB peak @ 1m
- MAX POWER HANDLING: 100 watts continuous, 400 watts peak
- DISPERSION
- Horizontal — 75 degrees
- Vertical — 60 degrees
- INPUT CONNECTORS: 5-way Binding Posts
- CABINET CONSTRUCTION: Multi-ply Baltic birch
- GRILL: Coated perforated metal
- RIGGING HARDWARE: 4 internal 16 gauge steel backing plates. Accepts 1/4" - 20 thread. 4 pick points total
- COLOR: Black - other colors optional
- FINISH: Textur: 13.6" (346 mm) high by 7.5" (191 mm) wide (front) by 4.9" (126 mm) high (rear) by 7.4" (187 mm) deep
- WEIGHT: 12.5 lbs. (5.7 kg)
- OPTIONS/ACCESSORIES:
- Sat3 Controller (Model specific EQ and Limiting)
- Cables
- "SX" Weather Treatment for Harsh Environments
- Assorted Rigging Components
