Allen and Heath DLive CTI1500 Mixing System with DM64 Mixrack

Listing includes fader surface and DM64 Mixrack

Allen & Heath dLive C Class CTi1500 12 Fader Surface with 12-Inch Touchscreen

dLive is a distributed digital mixing system providing a uniquely flexible solution for any live sound application. It separates the mix engine from the control surface, putting the audio and processing where it is needed, and offering a host of control and audio networking possibilities. Refer to the Allen & Heath website to find out more about dLive.

Features:

  • Fully assignable layout
  • Single or twin 12” capacitive touchscreen
  • Gesture control – pinch, swipe, drag ‘n drop
  • Configurable widget areas for Scenes, meters, FX and more
  • 19 assignable SoftKeys (26 on S3000, S5000, S7000)
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback

Specifications:

  • Inputs:
    • Mic/Line Inputs: Balanced, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN: -127dB with 150Ω source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
    • Digital Inputs:
      • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
      • SRC range 32k - 192kHz, with bypass option
  • System:
    • Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Sampling Rate: 96kHz +/- 20 PPM
    • Internal operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz
  • Outputs:
    • Analogue Outputs: Balanced, Relay protected
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -92dBu (muted, 20-20kHz), -90dBu (muted, 20-40kHz)
    • Digital Outputs:
      • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
      • 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz
  • Dimensions and Weights (Width x Depth x Height x Weight):
    • Unboxed: 440 x 644 x 337 mm x 11.5kg (17.4"x 25.4"x 13.27") (25.4lbs)
    • Boxed: 655 x 820 x 470 mm x 20kg (25.8"x 32.3"x 18.5") (44lbs)

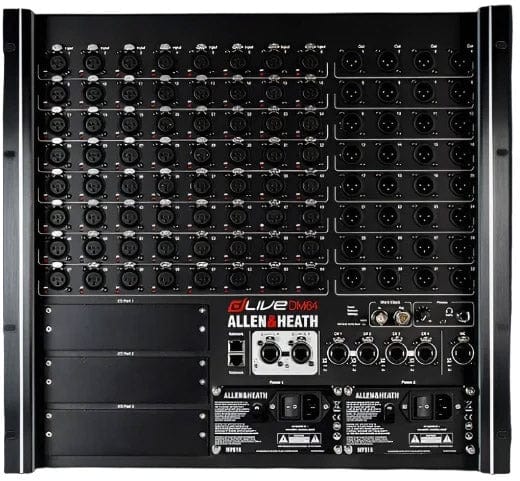

Allen & Heath DM64 DLive Mixrack 64-In x 32-Out

The DM64 dLive Mixrack / Mainframe has 64 analogue inputs and 32 analogue outputs of local I/O. Like all dLive MixRacks, DM64 has a 128 Input x 64 Output matrix, all with full processing, all running at a 96kHz sample rate and featuring a 96Bit accumulator. Up to 48 I/O endpoints can be created via Allen & Heath networked I/O boxes running the DX and gigaACE protocols. Almost any external control system capable of making a TCP/IP connection can be used to control DM64, in addition to Allen & Heath’s own IP remote controllers and dLive Surfaces.

Features:

  • 128 Input x 64 output matrix
  • 64 channels of Auto Mic Mixing
  • Ethernet based audio expansion
  • Redundant PSU & audio connections
  • External control drivers available
  • 64 Analogue inputs, 32 analogue outputs

Specifications:

  • Type: Digital Stage Box Mixer
  • Compatibility: dLive Surface
  • Channels: 128 total input channels (64 x 32 immediate I/O)
  • Inputs - Mic Preamps: 64 x XLR (mic/line)
  • Phantom Power: 64 channels
  • Data I/O: 2 x EtherCon (GigaACE links), 4 x EtherCon (DX redundant), 2 x Ethernet RJ-45 (network), 1 x EtherCon (ME-1)
  • Busses/Groups: 64 bus
  • Computer Connectivity: Ethernet
  • Word Clock: In/Out
  • I/O Expansion Slots: 3 x slots (MADI, Dante, Waves, ACE, SoundGrid)
  • Headphones: 1 x 1/4", 1 x 1/8"
  • EQ Bands: Parametric, Graphic
  • Effects: 16 RackExtra FX library
  • Signal Processing: Dynamics
  • Software: dLive Editor
  • Rackmountable: Yes
  • Power Source: Dual redundant, hot swappable power supply
  • Height: 18" (including foot risers)
  • Depth: 12.3"
  • Width: 19"
  • Weight: 46 lbs.
