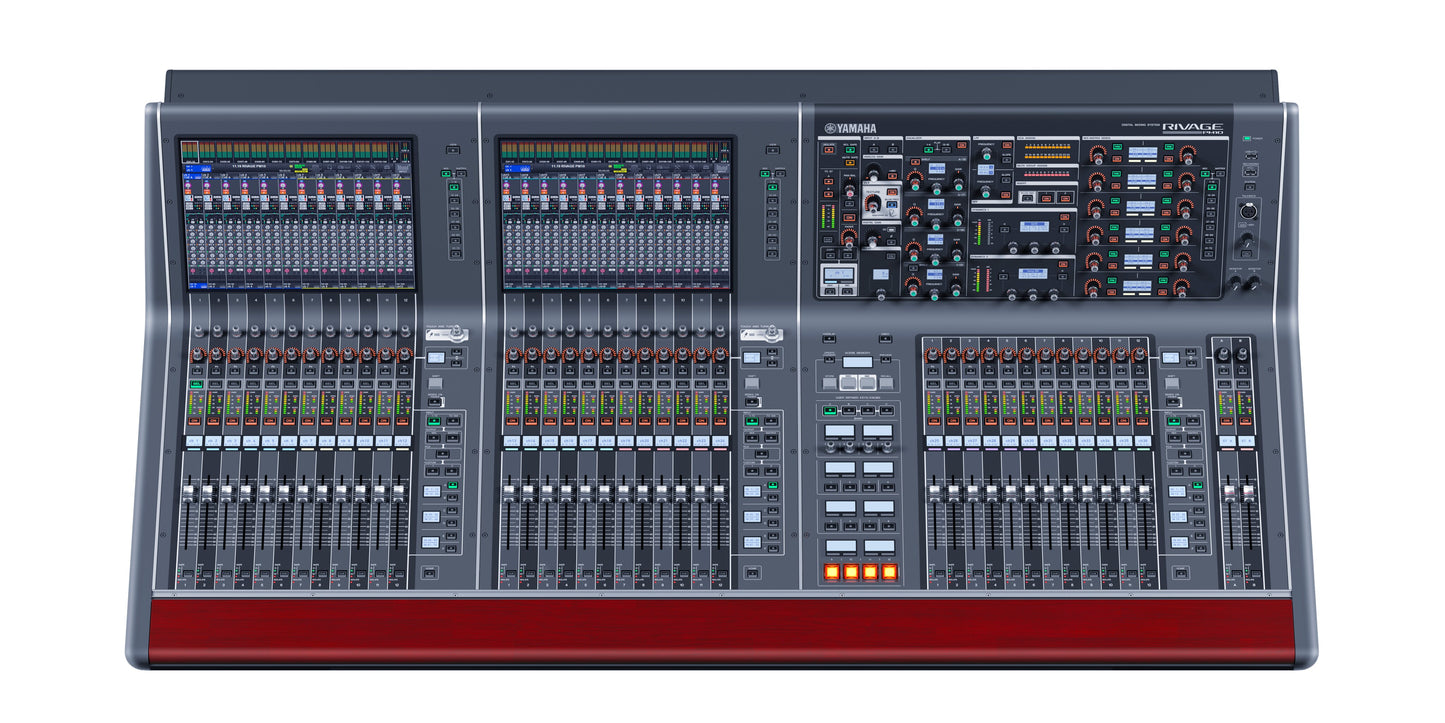

Yamaha CS-R10 Control Surface (RIVAGE PM10 System)

The CS-R10 Control Surface delivers two large touchscreens and 38 motorised faders.

The CS-R10 Control Surface heads the RIVAGE PM10 system, to complete the system choose from one of these DSP Engines: DSP-RX-EX, DSP-RX, or DSP-R10.

Features:

• Display: 15" touch panel x 2
• Faders: 38 (12+12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 2
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 8 in / 8 out (with SRC)
• Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
• Power supply: Dual redundant power supply built-in
• Power consumption: 380W
• Dimensions (WxHxD): 1,549 x 417 x 848mm (61.0" x 16.4" x 33.4")
• Net Weight: 85 kg (187 lbs)

Engines:

• Yamaha DSP-RX-EX DSP Engine
• Yamaha DSP-RX DSP Engine
• Yamaha DSP-R10 Engine

Racks:

• Yamaha Rio1608-D3 I/O Rack
• Yamaha Rio3224-D3 I/O Rack
• Yamaha RPio222 I/O Rack
• Yamaha RPio622 I/O Rack
