Name: Radial X-AMP Active Class-A Reamping Device
Brand: Radial Engineering
SKU: X-AMP

Radial X-AMP Active Class-A Reamping Device

Active Reamp

The Radial X-Amp™ is an active Reamper™ that allows the engineer to play a pre-recorded track back through guitar amplifiers and pedals. This opens the door to explore new musical sounds and spur on the creative process so that your recording stands out.

Reamp for professionals
Following the critically acclaimed Radial JD7™ Injector, the X-Amp employs a unique class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, class-A circuit topology for optimal reach and frequency response, a transformer isolated output to eliminate hum and buzz caused by ground loops, a 180° polarity reverse switch to bring both amps into phase, and a dual ground lift switch for noise-free operation.

X-Amp Applications

Reamping Step-1
To Reamp, start by recording a dry track using a Radial J48 and splitting the signal. Record the wet track using a mic so that the guitarist can hear it. Send him to the beach!

Reamping Step-2
Send the dry track back to the guitar amps and pedals using the X-Amp. Adjust the tone and move the mics around till it sounds right. You can always come back and Reamp later.

Reamping – Not just for guitars!
Try sending a vocal track into a Marshall® amp or a Tonebone Classic-V9™ to add tube warmth and grit. Take it a step further by sending your kick drum to a wah pedal. There are no limits!

Features:

Active Reamp® with two outputs
100% discrete class-A signal path
Transformer isolated to eliminate noise
LED peak indicator and level control
XLR In
Balanced +4dB line level input is used to receive the audio signal from the recorder. Follows AES standard with pin-1 ground, pin-2 hot (+), pin-3 cold (-).
Ground
Lifts pin-1 ground on the XLR input, diverting the ground connection to the ¼" OUT-1.
No Slip Pad
Neoprene isolation pad provides electrical isolation from the chassis and mechanical insulation from rough handling.
Power LED
Automatically illuminates when the power supply is connected. Lets you know the X-Amp is on and ready to use.
Level
Lets you adjust the X-Amp output level going to the amplifiers.
Clip LED
Provides visual cue of input signal. When this light goes on, turn down the source! You are overloading the X-Amp input circuit.
Out-1
Direct buffered output is used to feed your first amp. This should be a properly grounded amp that has passed local safety approvals.
180º Polarity
Reverses the absolute phase on output 2 so that both amplifiers play in phase. It can also be used to create different effects.
Out-2
Transformer isolated output is used to feed your second amp while eliminating ground loops.
Connector
Nylon XLR connector with extra large nickel-silver pin contacts. Tougher than steel.
100% Discrete
Full sized parts are hand inserted to deliver the very best audio quality. Class-A circuit design for pure tone.
Transformer
Provides 100% isolation to eliminate hum and noise caused by ground loops.
Ground Lift
Applies to guitar amp output 2 - provides alternate ground path if needed or can help eliminate ground loops.

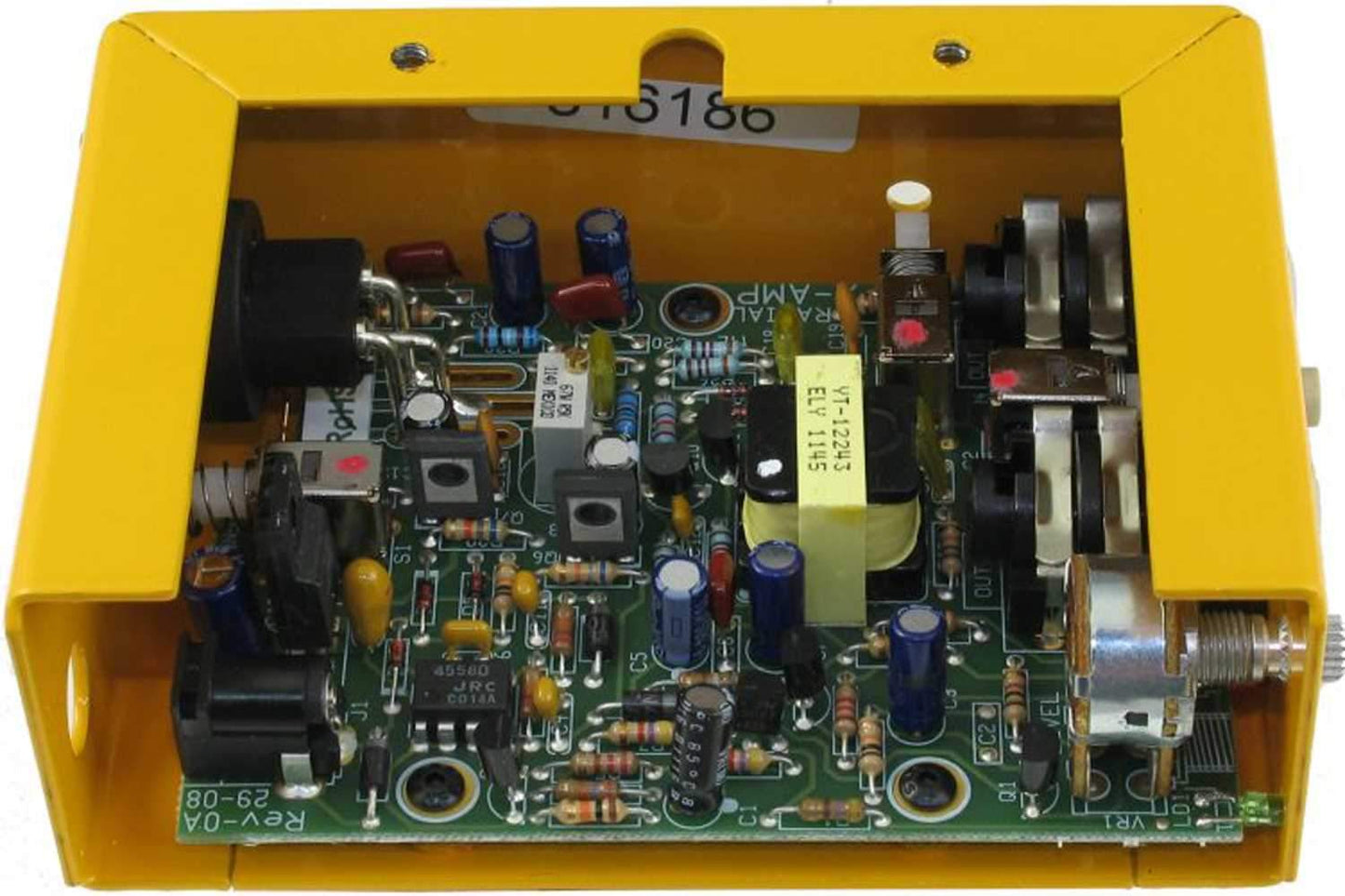

Circuit Board
Double-sided military spec for greater durability and full ground plane to reduce radio frequency interference.
14-Gauge Steel
I-Beam construction prevents circuit board from torque which could lead to part failure.
