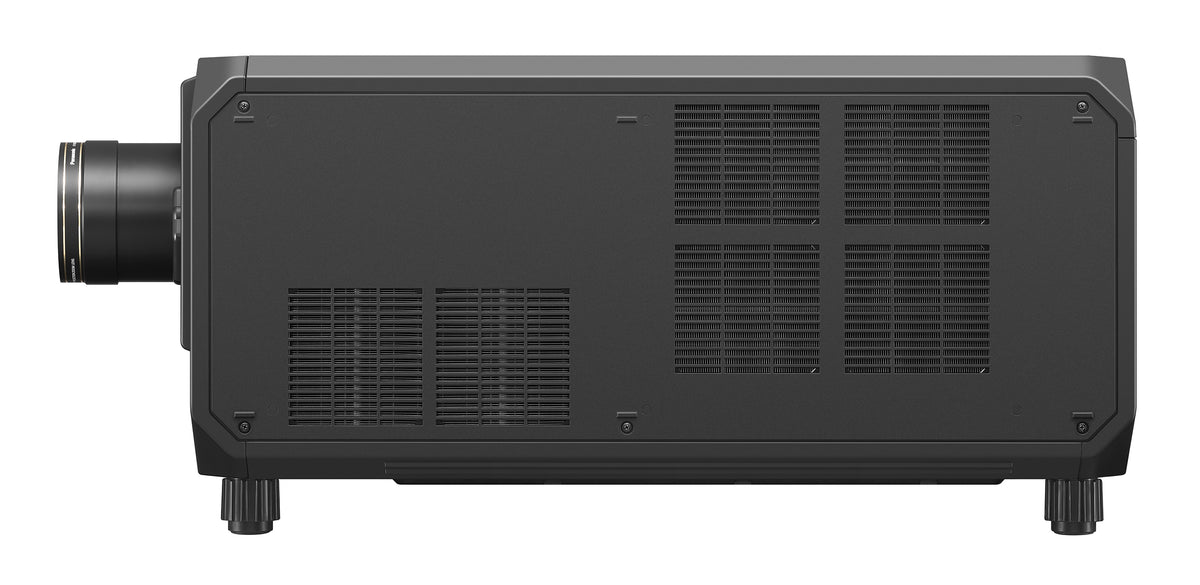

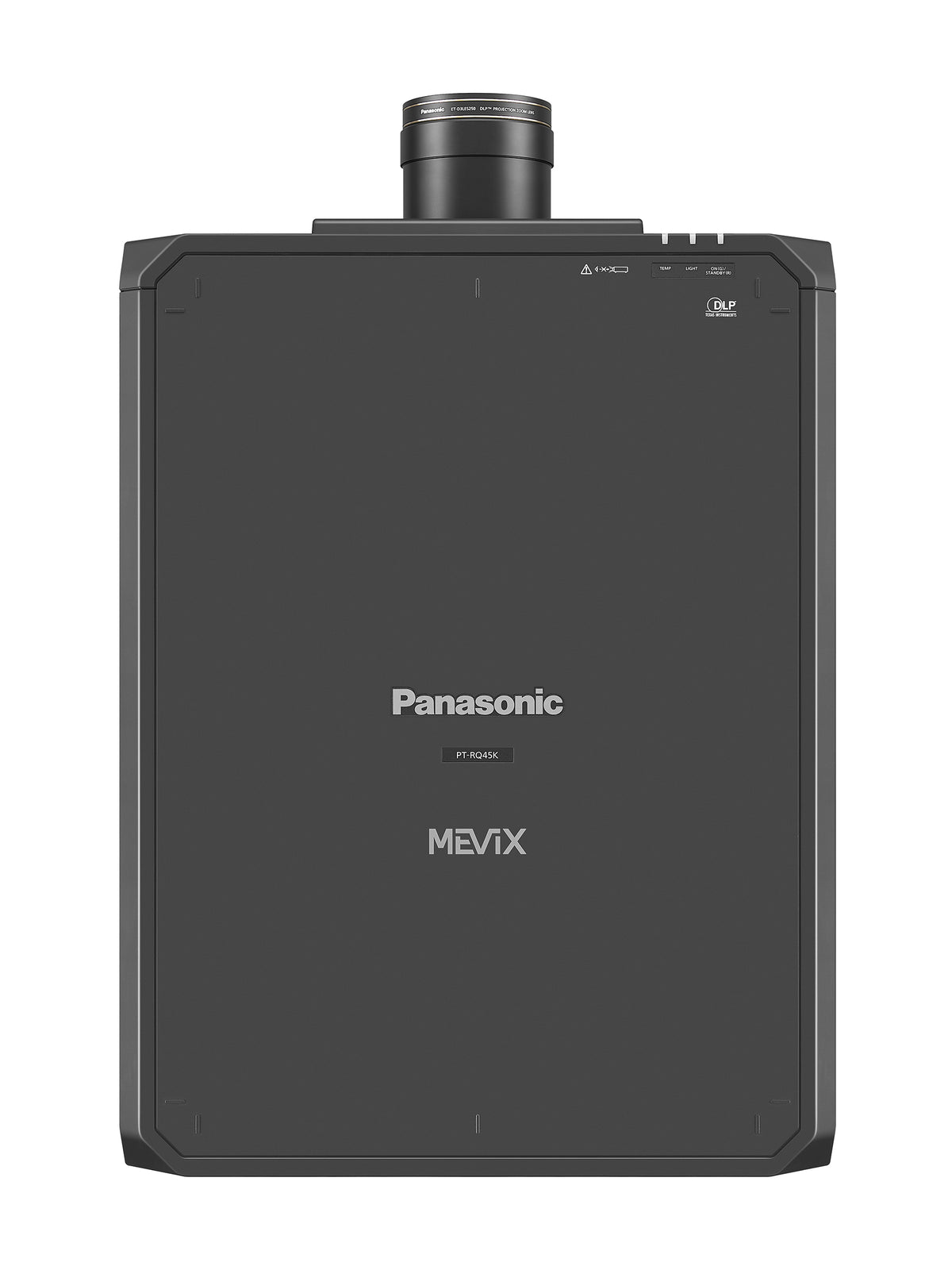

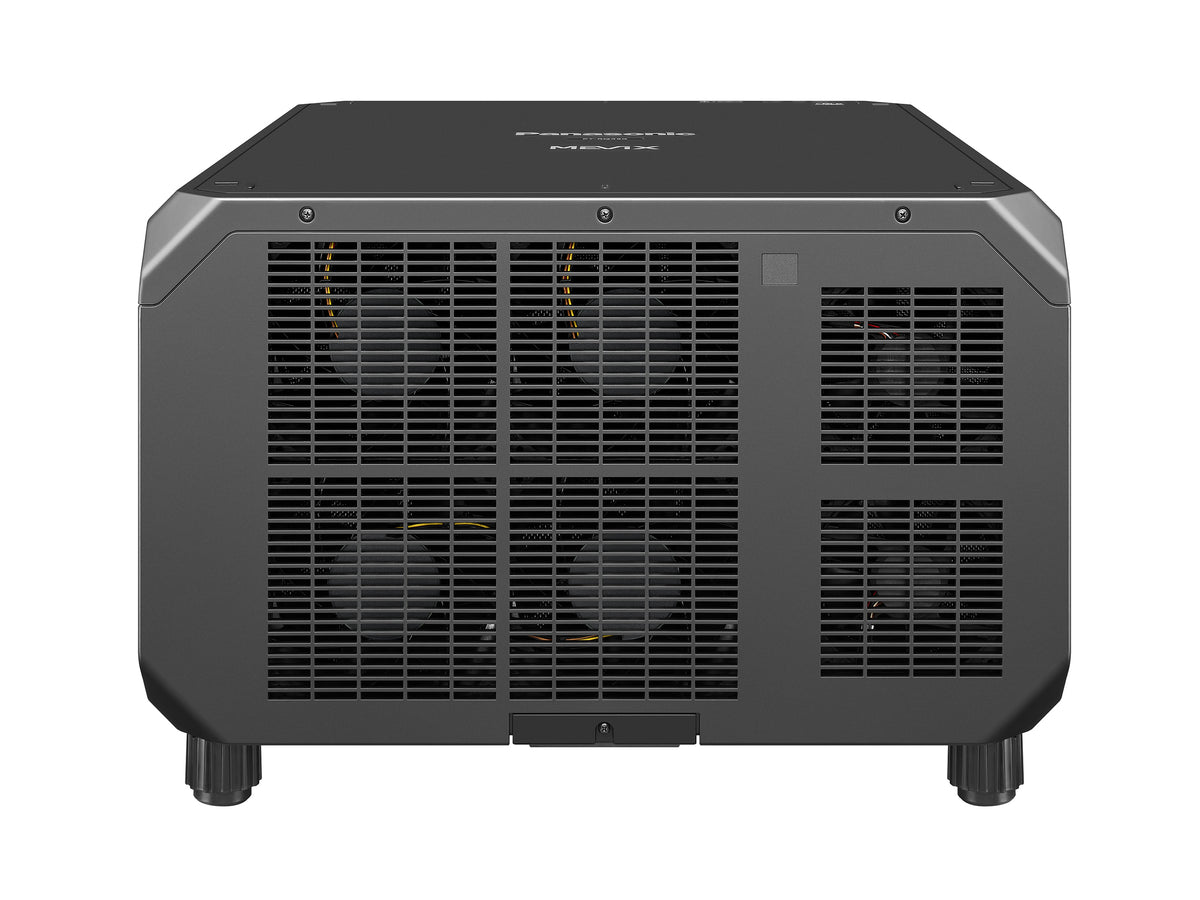

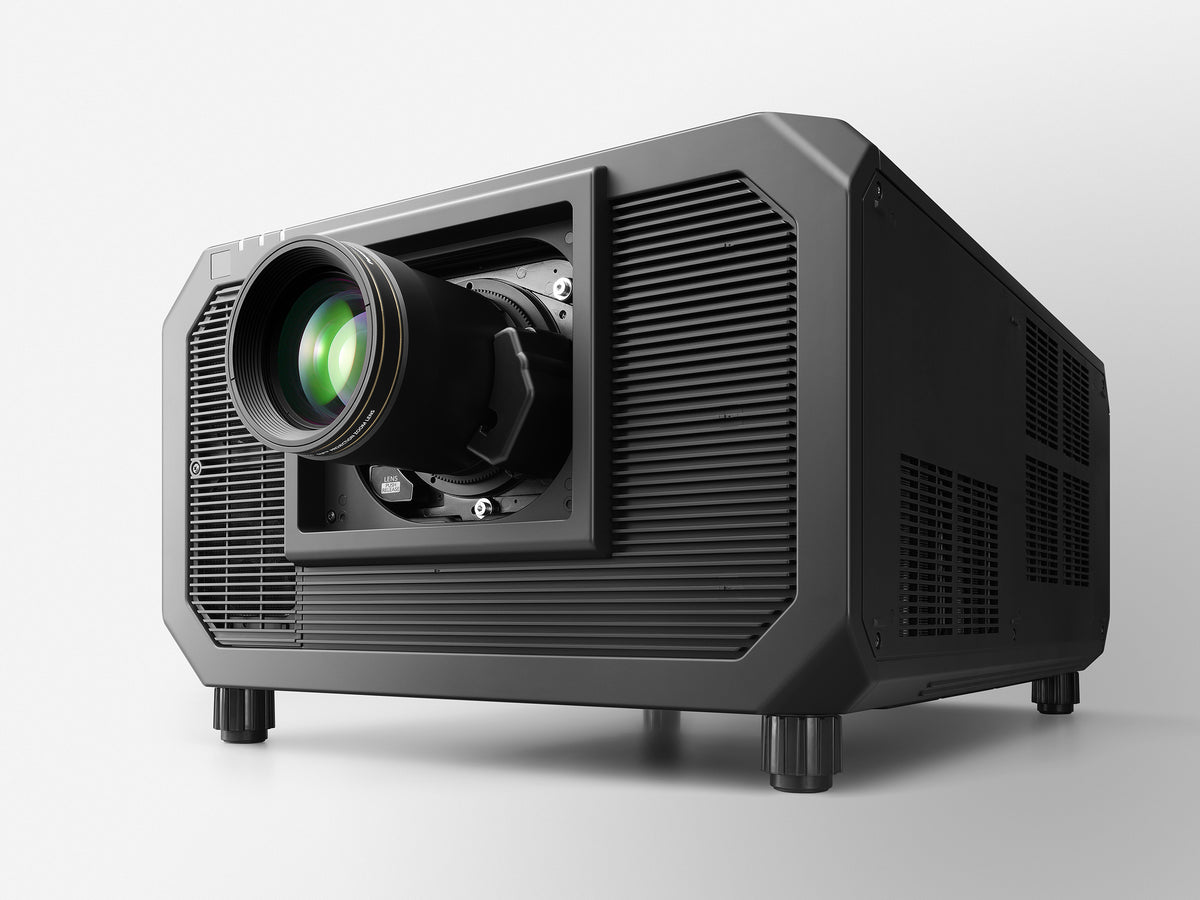

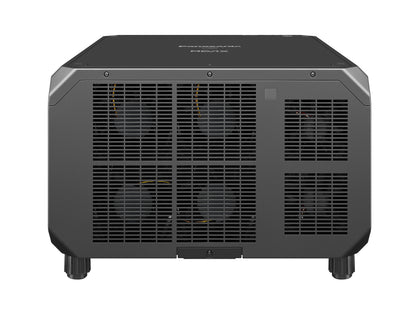

Panasonic PT-RQ45K Projector

This professional-grade 4K laser projector delivers an impressive 42,000 lumens of brightness, ensuring exceptional image clarity and accurate colour reproduction even in large venues and challenging lighting conditions.

Its compact and lightweight design makes it well suited to permanent installations, live events, and other demanding projection applications.

The projector features an industry-leading 25,000:1 dynamic contrast ratio and advanced Quad Pixel Drive technology, producing smooth, highly detailed 4K images with outstanding depth and realism. Dual red and blue laser light sources enhance colour performance, delivering vibrant, precise, and consistent visuals. Support for high-speed 240 Hz video playback ensures fluid motion and reduced blur during fast-moving content. Designed for long-term reliability, the projector incorporates coated circuit boards and a dust-resistant structure to withstand challenging operating environments while minimizing maintenance requirements.

Its modular design simplifies servicing and reduces downtime. Dual backup inputs with integrated failover circuitry provide signal redundancy, helping to maintain uninterrupted operation if an input source fails. Flexible control and monitoring options streamline setup and day-to-day management.

These include wireless app connectivity, USB-based control without the need for a LAN connection, and NFC preparation functionality.

A built-in 5-inch colour monitoring display and angle adjustment tool make installation and alignment faster and more efficient.

The projector is also compatible with a visual software suite, enabling seamless integration into broader workflows. Engineered for consistent performance across complex projection environments, the projector features dynamic digital colour control, LAN-based shutter synchronisation, and uniform black levels across blended displays. Its environmentally conscious design helps reduce its overall impact without compromising image quality, brightness, or operational performance.

Features:

• 42,000 lm
• 3-Chip DLP
• 4K+
• Intel SDM slot
• Supports Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX^® DD, PJLink™, and IPv6¹
• Data-cloning function via LAN or USB²
• 1 USB port for DC 5 V/2 A power supply, 1 USB port for optional AJ-WM50 Series Wireless Module, USB Control Connect function, and data transfer from USB memory devices
• Compatible with the Multiple PJ Firmware Batch Update Tool
• Import and save user test patterns or client content images
  for easy calibration
• Updated Web UI interface and screen marker tools
• Multi-screen Support System
• Multi-Unit Brightness and Colour Control
• DICOM Simulation Mode
• Waveform Monitor Function

Specifications:

• Projector type: 3-Chip DLP projector
• Display method: DLP chip x 3, DLP projection system
• Display Device -> Panel size: 24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
• Display Device -> Number of pixels: 2,304,000 (1920 x 1200 pixels) x 3
• Light source: Laser diodes (Blue LD, Red LD)
• Light output *1*2: 45,000 lm*3
• Light output (ANSI): 42,000 lm*4
• Light output (Centre)+4: 43,600 lm*5
