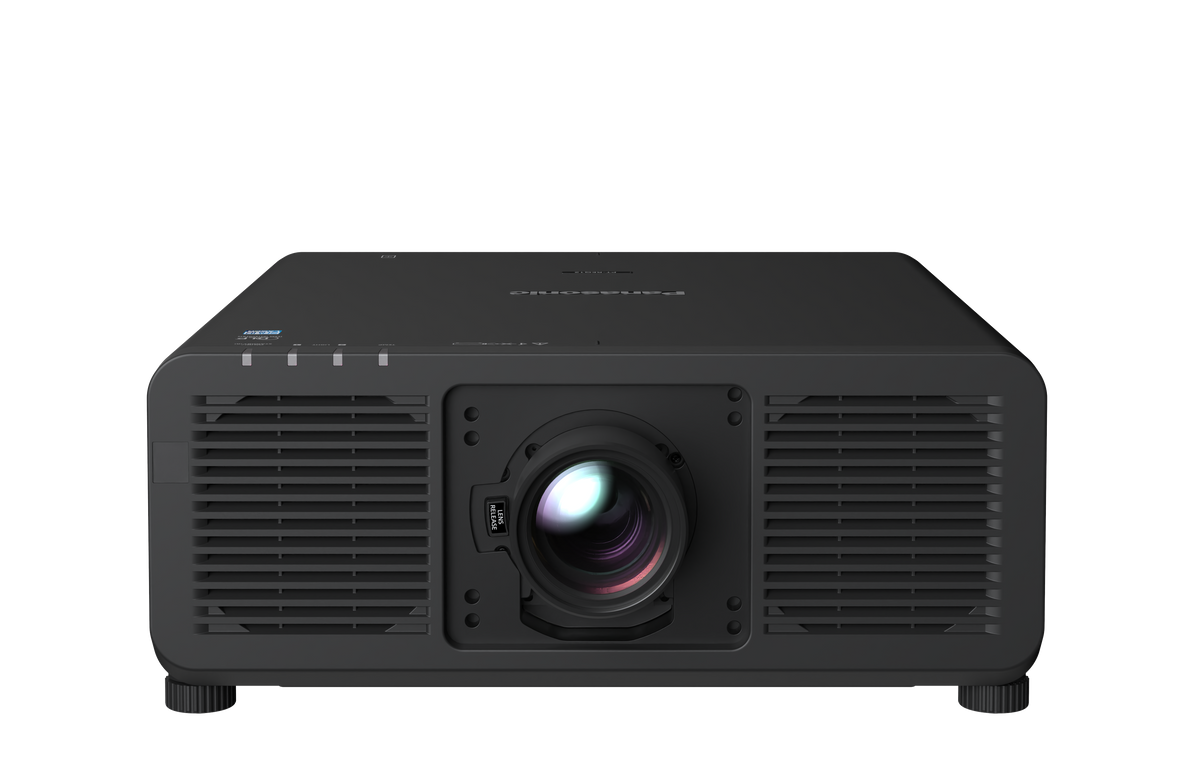

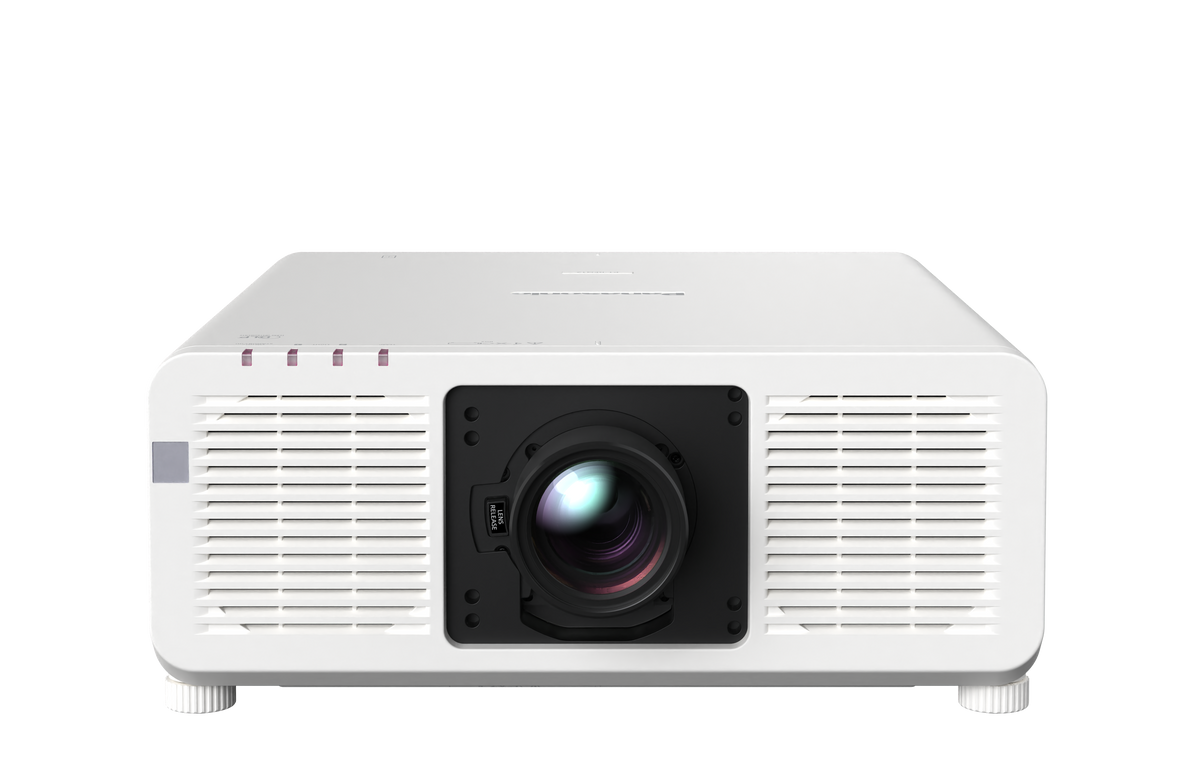

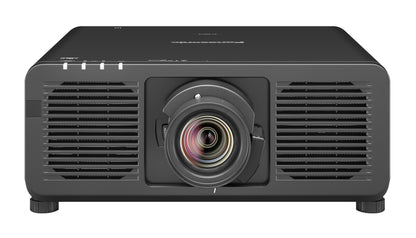

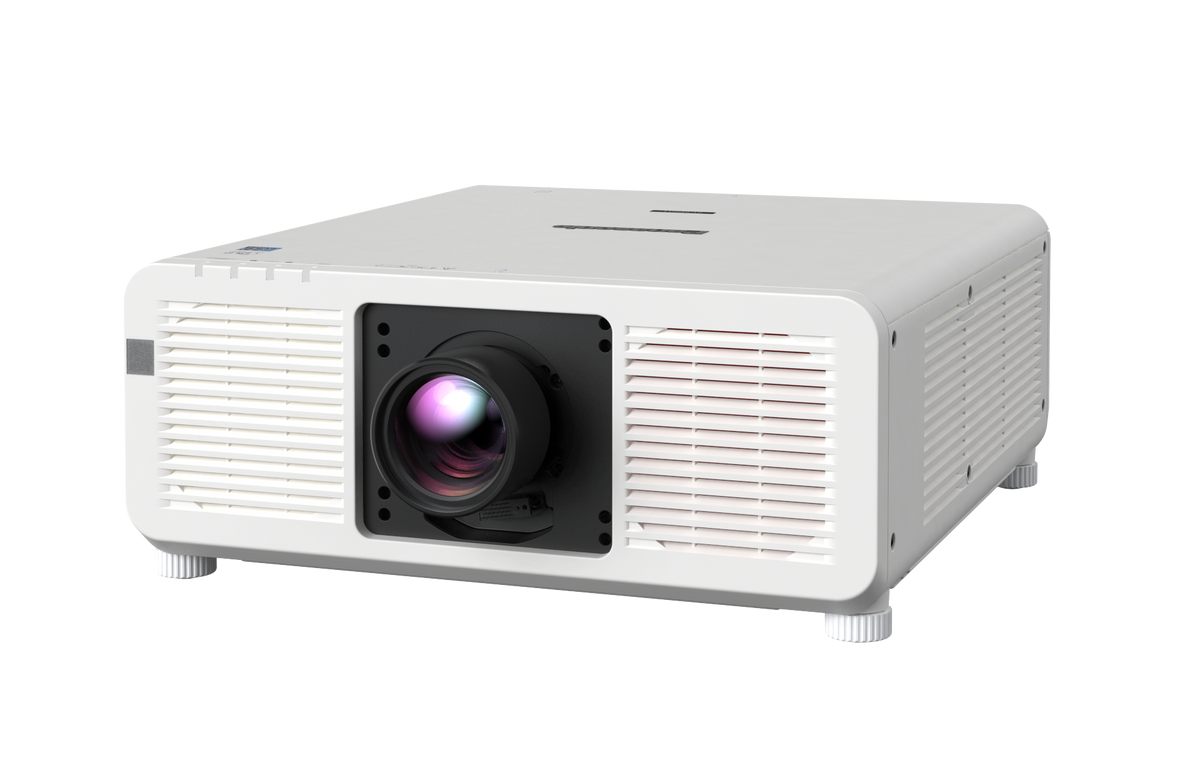

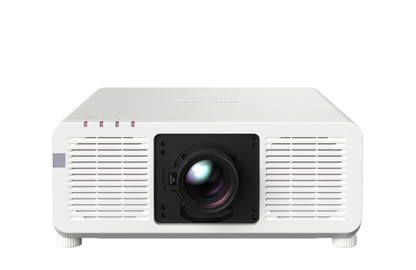

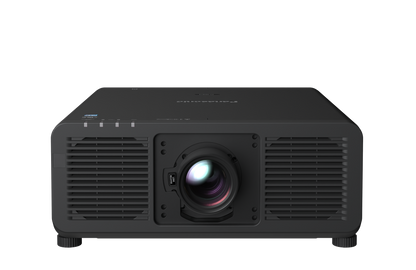

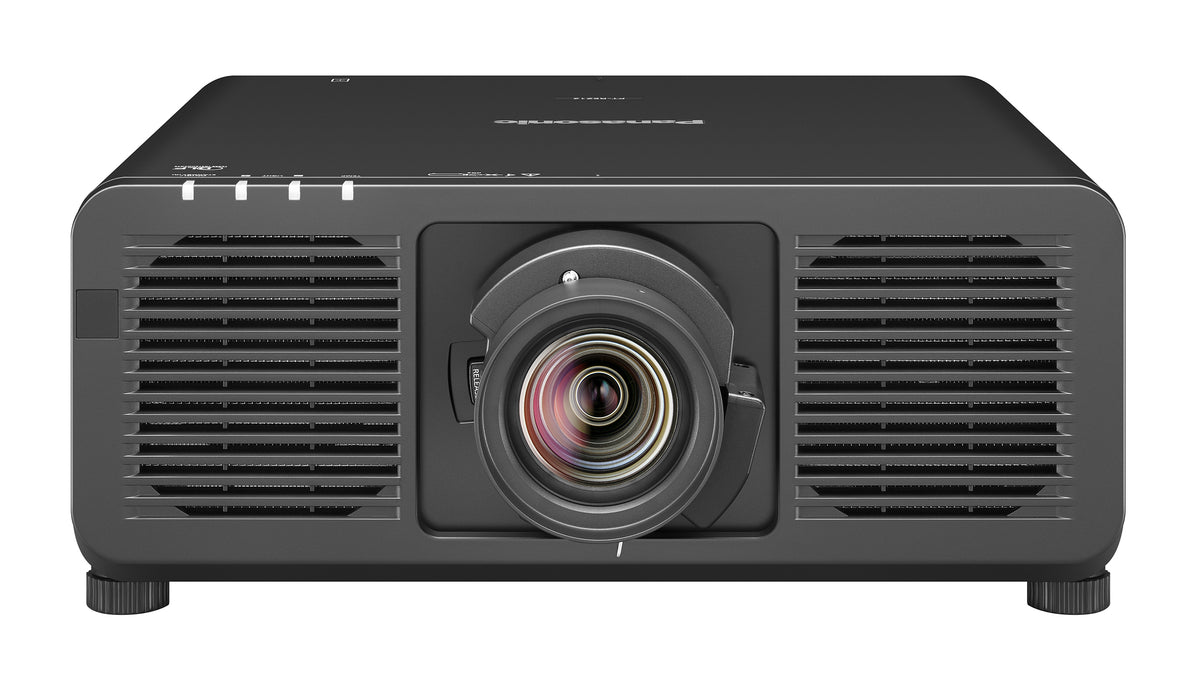

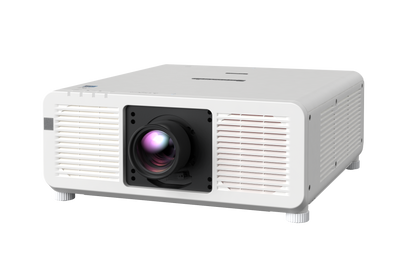

Panasonic PT-REZ12 Projector

Panasonic PT-REZ12 1-Chip DLP Projectors PT-REZ15 Series

The Panasonic PT-REZ12 1-Chip DLP Projector delivers professional-grade performance for demanding presentation environments. Featuring 15,000 lumens of brightness, this projector produces seamless, high-contrast visuals with dynamic contrast technology and rich colour enhancement that optimizes black levels both inside and outside the image area. Built for reliability and efficiency, the PT-REZ12 includes a dust-resistant optical engine with liquid cooling, maintenance-free projection capabilities, and whisper-quiet operation.

The compact, lightweight design integrates a new all-new lens line-up and advanced media processors with Intel SDM-compatible slot support for flexible connectivity and custom test pattern import. Universal 100-240V power supplies ensure compatibility worldwide. Control and preview your presentations effortlessly using the Smart Projector Control App with NFC functionality and remote preview capabilities.

The Multi-Laser Drive Engine with backup input redundancy provides exceptional reliability for critical installations and continuous operation requirements.

Features:

• 12,000 lm
• 1-Chip DLP
• WUXGA
• Intel SDM slot
• High-Contrast Visuals Deepen Engagement
• Flexibility and Expandability for Timesaving Workflow
• New Compact Body Supports Maintenance-free Projection
• Supports Art-Net DMX, PJLink™, Crestron Connected^® V2, Crestron^® XiO Cloud, and Extron XTP^®
• Supports IPv6¹ network protocol
• 1 USB port for DC 5 V/2 A power supply, 1 USB port for optional AJ-WM50 Series Wireless Module and data transfer from USB memory devices
• Compatible with the Multiple PJ Firmware Batch Update Tool
• Contrast Sync and Shutter Sync Functions
• Data-Cloning Function via LAN or USB²
• Supports widescreen 21:9 input signals
• Quick Start and Quick Off
• Multi-screen Support System
• Multi-Unit Brightness and Color Control
• DICOM Simulation Mode
• Waveform Monitor Function

Specifications:

• Projector type: 1-Chip DLP projector
• Display method: DLP chip x 1, DLP projection system
• Display Device -> Panel size: 0.8 in diagonal (16:10 aspect ratio)
• Display Device -> Number of pixels: 2,304,000 (1920 x 1200 pixels)
• Light source: Laser diode
• Light output *1*2: 12,000 lm
• Light output (ANSI): 12,000 lm (ANSI)
• Light output (Center) *1*4: 12,400 lm (Center)
