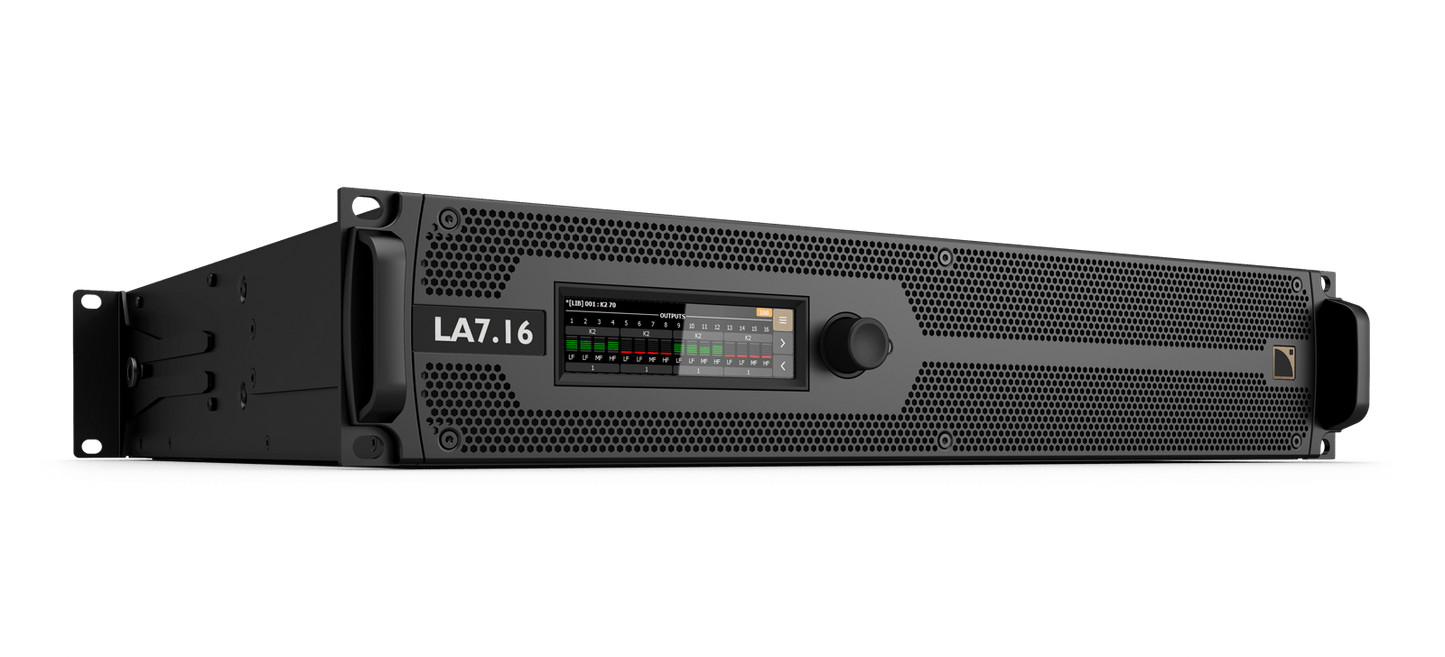

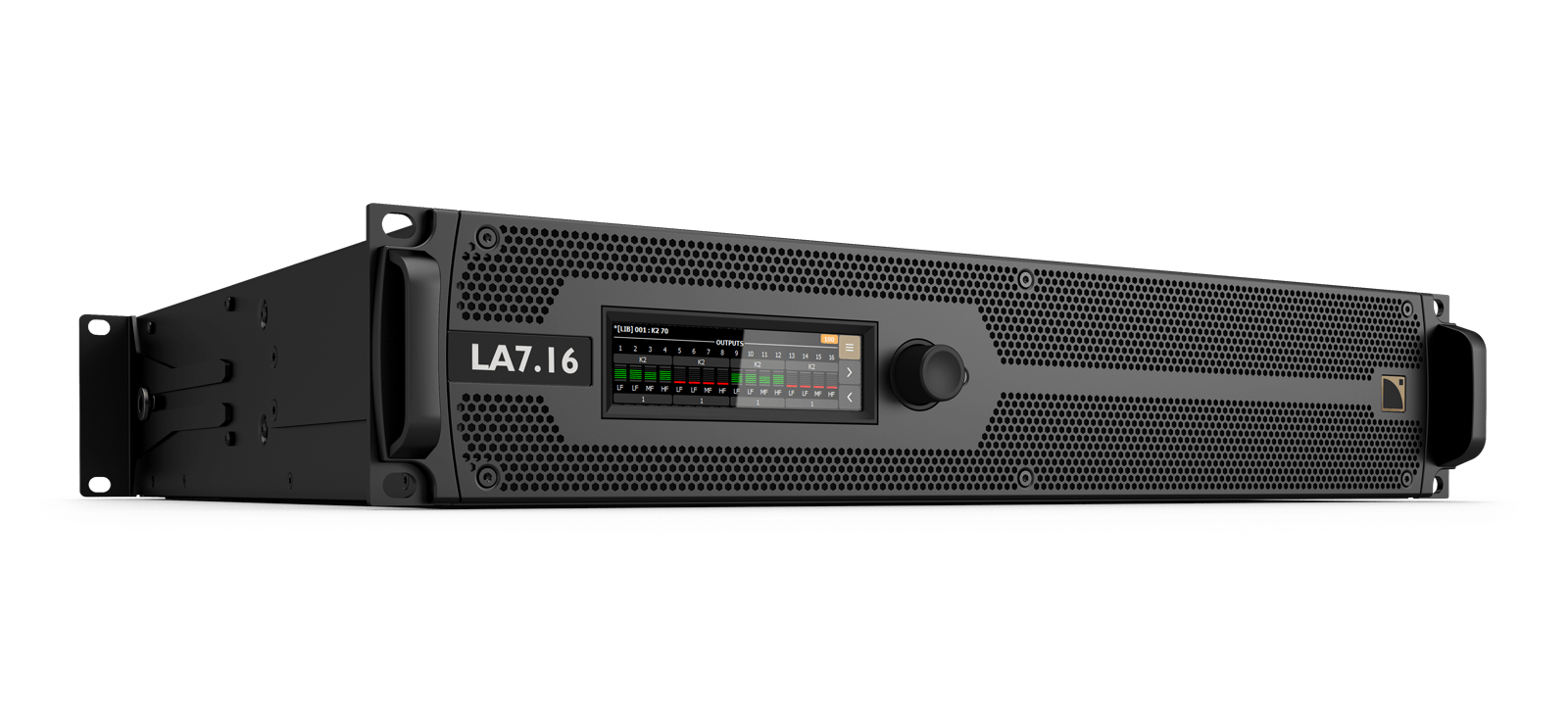

L-Acoustics LA7.16 Amplified Controller

L-Acoustics LA7.16 Multi-channel Amplified Controller

Features:

• Architecture: 16 x 16
• Output Power: 16 x 700 W at 16 ohms
  16 x 1300 W at 8 ohms
  16 x 1100 W at 4 ohms
• Power Supply: Universal SMPS with PFC
• Inputs: Milan-AVB, AES/EBU, Analog
• Network: Milan-certified with seamless network redundancy

Specifications:

Amplification and Power Supply:

• Amplification Class: High-efficiency class D
• Output Power, All Channels Loaded: 16 x 1100 W at 4 ohms
  16 x 1300 W at 8 ohms
  16 x 700 W at 16 ohms
• Nominal Power Requirements: 16 A (200-240 V) 30 A (100-120 V)
• Mains Connector: 32 A powerCON
• Power Supply Model: Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
• Mains Rating: 100 V - 240 V ±10%, 50-60 Hz
• External DSP Backup Voltage Input: 24 V DC

DSP:

• Digital Signal Processor (DSP): Gen.5 Dual SHAR 32-bit, floating point, 96 kHz sampling rate
• I/O Routing: 16 x 16 routing and summation matrix
• Per Output Channel: Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters
  Array morphing (LF contour, zoom factor), Air absorption compensation filters
  Internal IIR and FIR EQ algorithms for speaker phase linearization and improved impulse responses
  Output delay from 0 to 1000 ms

Technologies:

• Loudspeaker Management: L-DRIVE advanced system protection
• Amplifier Management: L-SMART adaptative power management

Latency:

• Standard Latency (Analog/Digital Inputs): 3.84 ms
• Low Latency (Analog/Digital Inputs): 1.18 ms

Inputs:

• Milan-AVB:16 channels from up to 16 streams (of up to 8 channels each)
• AES/EBU: 2 channels AES/EBU (1 x AES3) with SRC
• Analog: 1 channel analog

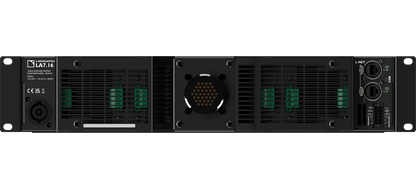

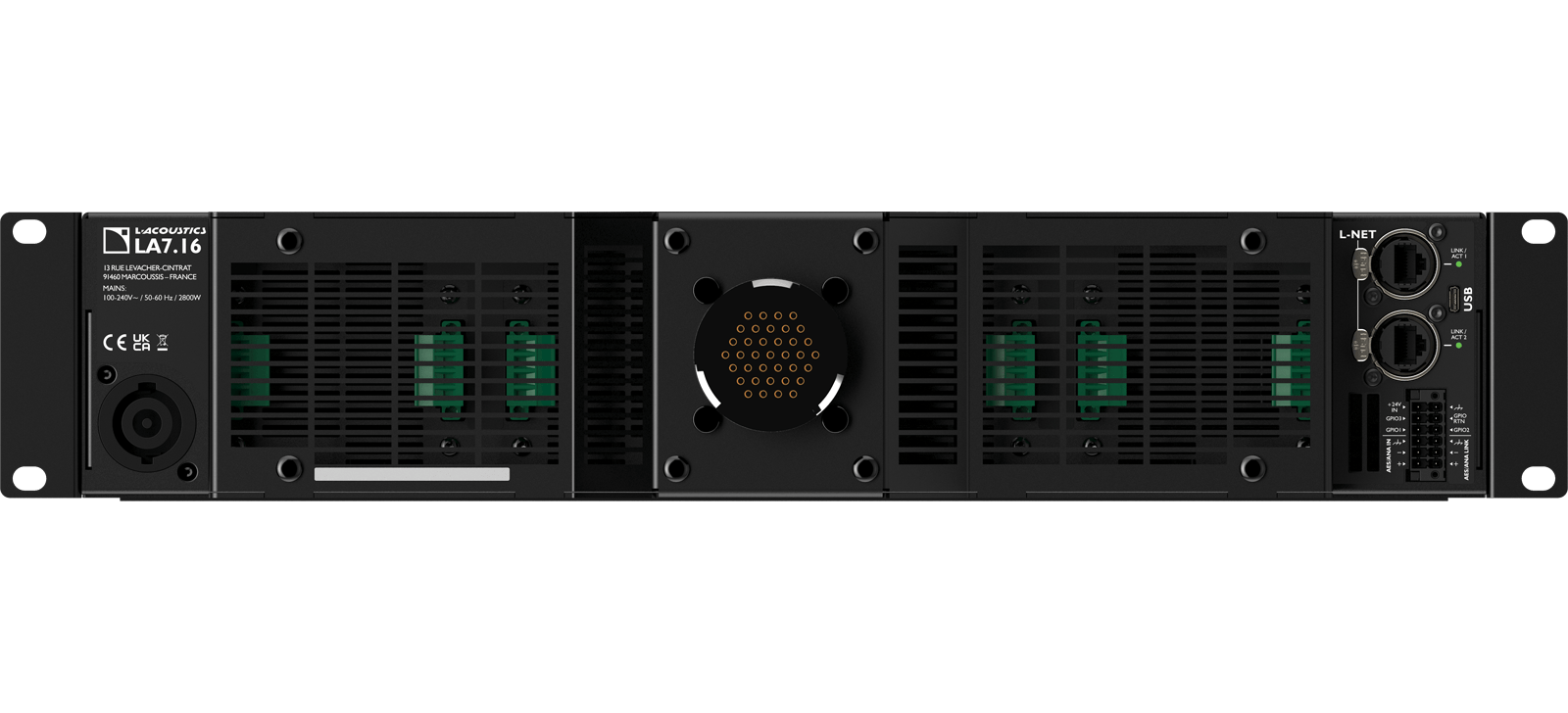

• Connections: 2 etherCON 1 Gb/s I/O+ control 1 male 12-point terminal block (AES3 or Ana input.link + GPIO)

Outputs:

• Loudspeaker Connections: 1 SC32 connector

Circuits Protection:

• Mains and Power Supply: Over and under voltage / over temperature / overcurrent
• Power Outputs: Overcurrent / DC / short circuit / over temperature

Interface:

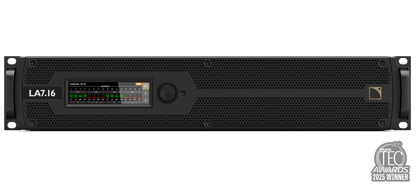

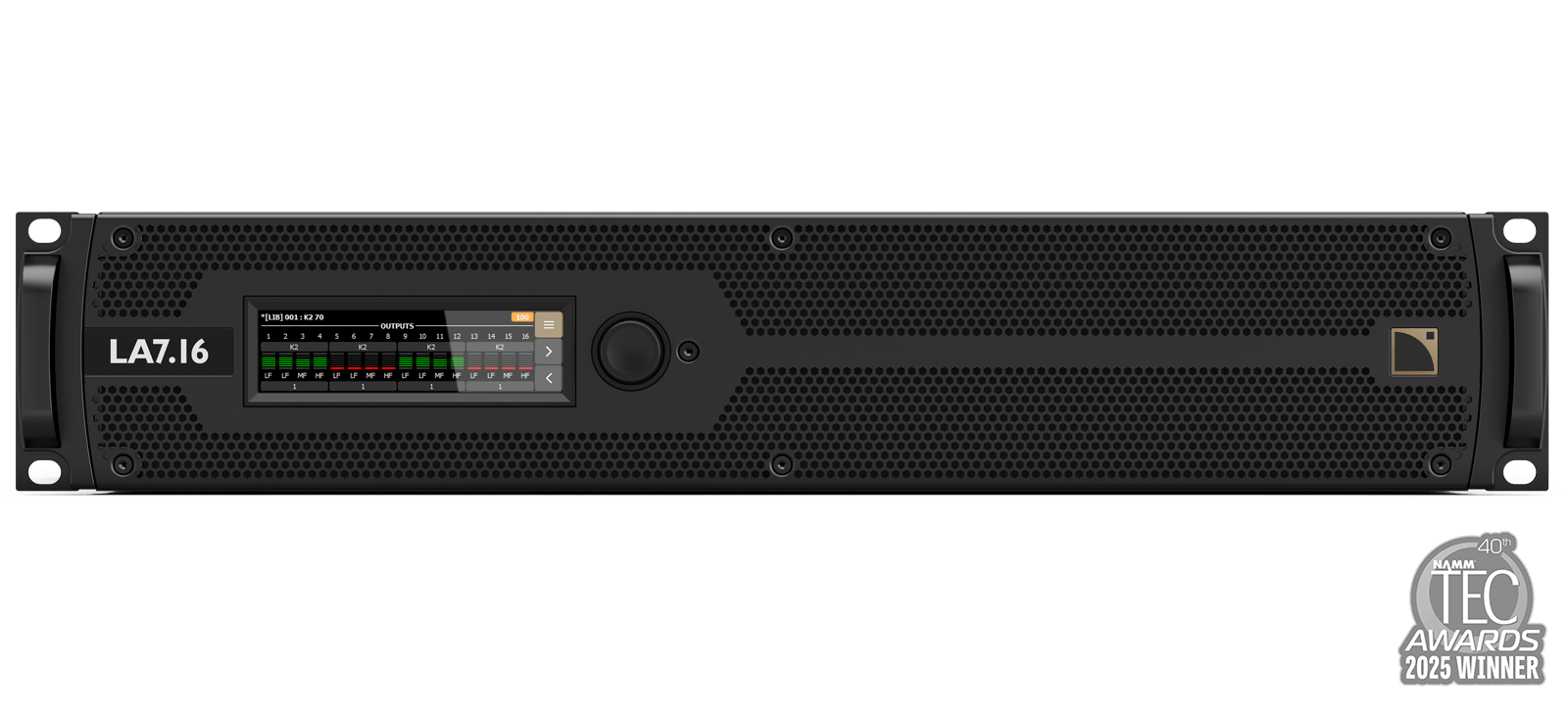

• Display/Indicators: 1 TFT colour touchscreen display (480 x 128 px)
• Display: 1 encoding wheel with push button

Remote Control and Monitoring:

• L-Acoustics Remote Control Software: LA Network Manager
• General Purpose Inputs and Outputs (GPIO): 3 in/out on 12 point terminal block
• Third-party management solutions: Q-SYS / Creston

Operating Conditions:

• Temperature: -5º C / 23º F to +50º C / 122º F

Physical Data:

• Height: 2U
• Weight: 15.8 kg / 34.8 lb

Speakers and Subs:

• L-Acoustics L2 Speaker
• L-Acoustics L2D Speaker
