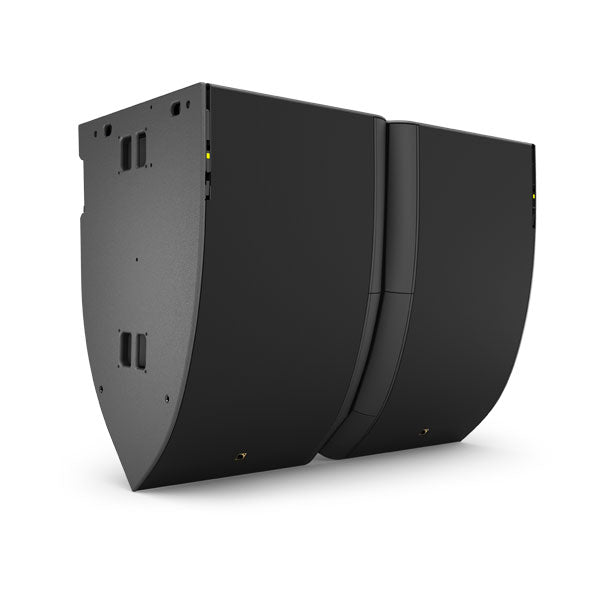

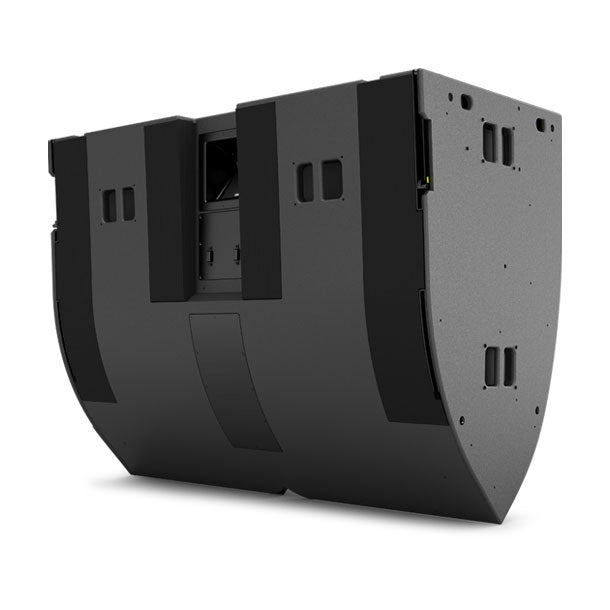

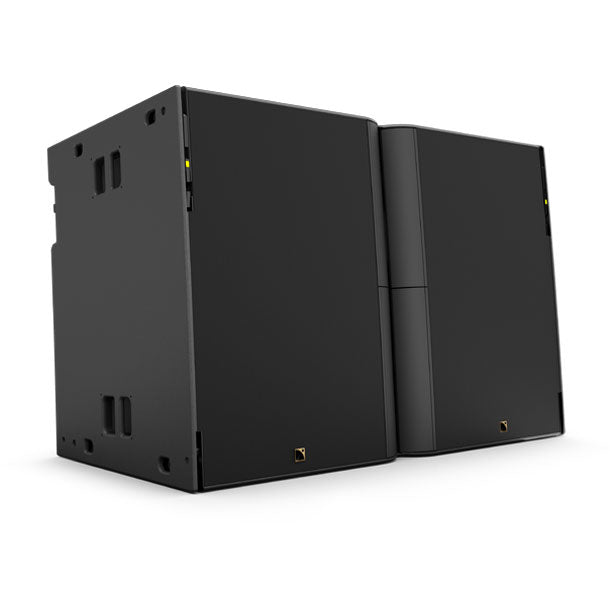

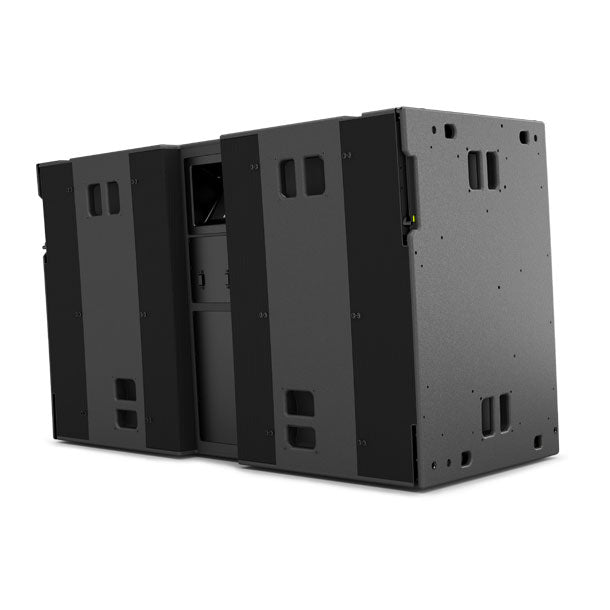

L-Acoustics L1 System Large Format Progressive Ultra-Dense Line Source
L1 represents our boldest step forward in large-format sound, engineered for the world's most demanding stages. From stadium tours, arena productions, the largest festivals, and prestigious venues, it delivers the scale and power these environments require while preserving the tonal integrity that connects audiences through the best shared sound at any scale. With a new level of control and system efficiency,
L1 ensures consistent performance and enables repeatable excellence, show after show.
The L1 system comprises L1 and L1D, acoustically identical enclosures that differ in their progressive curvature. From top to bottom, the system is built on the same core element, ensuring full acoustic consistency across the entire line.
L1 is designed for long-throw performance while L1D serves as the final element, extending the coverage to the near field and completing the array's vertical profile.
Specifications:
L1:
- Max SPL: 160 dB
- Bandwidth: 35 Hz-20kHz
- Transducer:
- LC: 2 x 18”
- LF: 4 x 15”
- MF: 8 × 8”
-
HF: 6 x (4” + 2.5”) coaxial drivers with a passive crossover
- Weight: 256 kg / 564 lb
- Dimensions (W x H x D): 1500 (59 in) x 1005 mm (39 in)
L1D:
- Max SPL: 155 dB
- Weight: 239 kg / 527 lb
- Dimensions (W x H x D): 1500 mm (59 in) x 1167 mm (46 in) x 750 mm (30 in)
