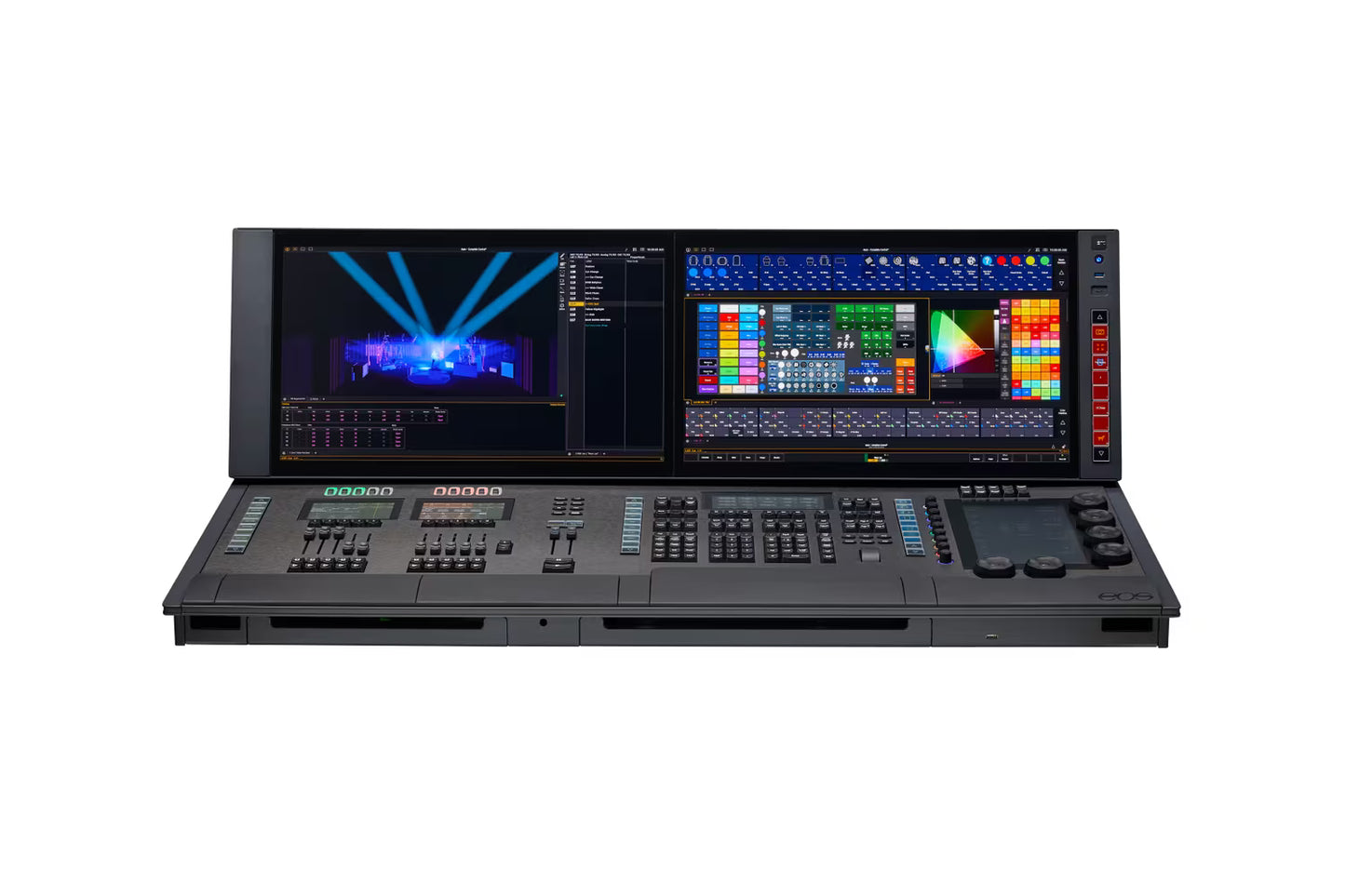

ETC Eos Apex 10 Lighting Console
The Eos Apex 10 delivers lighting control with customisable OLED Target keys for Direct Selects and a built-in soft keypad for intuitive operation.
The lighting control offers dual-axis folding displays, book lights for paperwork reference, accessory drawers, and encoder arrays.
This fixture offers connectivity of six Ethernet ports, four standard etherCON Gigabit and two 10-Gigabit SFP+ ports, which can be supported by both copper and fibre infrastructure for seamless integration.
Features:
- 24K output
- Generous displays and playback surfaces
- 10x 60mm motorized playbacks and scroll wheels
Specifications:
- Two 23.8-inch 4K multi-touch LCD touchscreens, in an articulating dual-axis display panel
- Supports three external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
- 10 60 mm motorized faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/pre-set, timing and effect rate/speed playback control
- Ten backlit scroll wheel faders with button, 100 10-fader pages for configurable faders, for channel, submaster and palette/pre-set, timing and effect rate/speed playback control
- Two 5-inch high-resolution fader displays, with multi-touch and haptic touch feedback
- Main Playback with two 60 mm motorized faders, and display load buttons
- Four banks of 10-button user-definable Target Keys
- Six force-feedback encoders for non-intensity parameter control
- Eight backlit mini encoders for non-intensity parameter control, plus one mini encoder for navigation
- Dedicated 10.1-inch high-resolution encoder display
- Dedicated high-resolution intensity level wheel
- Backlit expanded Eos keypad
- 6.3-inch keypad touchscreen, with haptic touch feedback, servicing softkeys and custom user layouts
- Built-in keyboard tray, with USB A & C ports
- Built-in accessory tray, with USB A & C ports and dedicated 5-volt/2-amp USB-A charging port
- One front-facing 5-volt/2-amp USB-A dedicated charging port
- Two independently dimmable warm-white LED booklights to illuminate adjacent surfaces
- Solid-state hard drive
- Dedicated graphics processing
- IEC power input (100–240 VAC at 50/60 Hz), inset power switch with integrated breaker, locking regionalized power cable included
- Four individually configurable Gigabit Ethernet ports, etherCON connectors, PoE++ (802.3bt compliant PSE)
- Two individually configurable 10-Gigabit SFP+ ports, which accept modules for copper, single-mode fibre, or multi-mode fibre connections
- One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
- Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
- sACN and Art-Net network output protocols
- USB 3.1 ports, for flash drives, pointing devices, keyboards (12 USB-A ports, 8 USB-C ports)
- Two Littlite XLR ports
- Two Kensington lock ports
- I/O Garage with four bays, which accept Response backpack style show control gateways, or Gadget II DMX output modules
- Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
- Power consumption approximately 6 A at 120 V or 230/240 V
- Ambient room temperature 0°–35°C (32°–95°F)
- Ambient humidity up to 90% non-condensing
