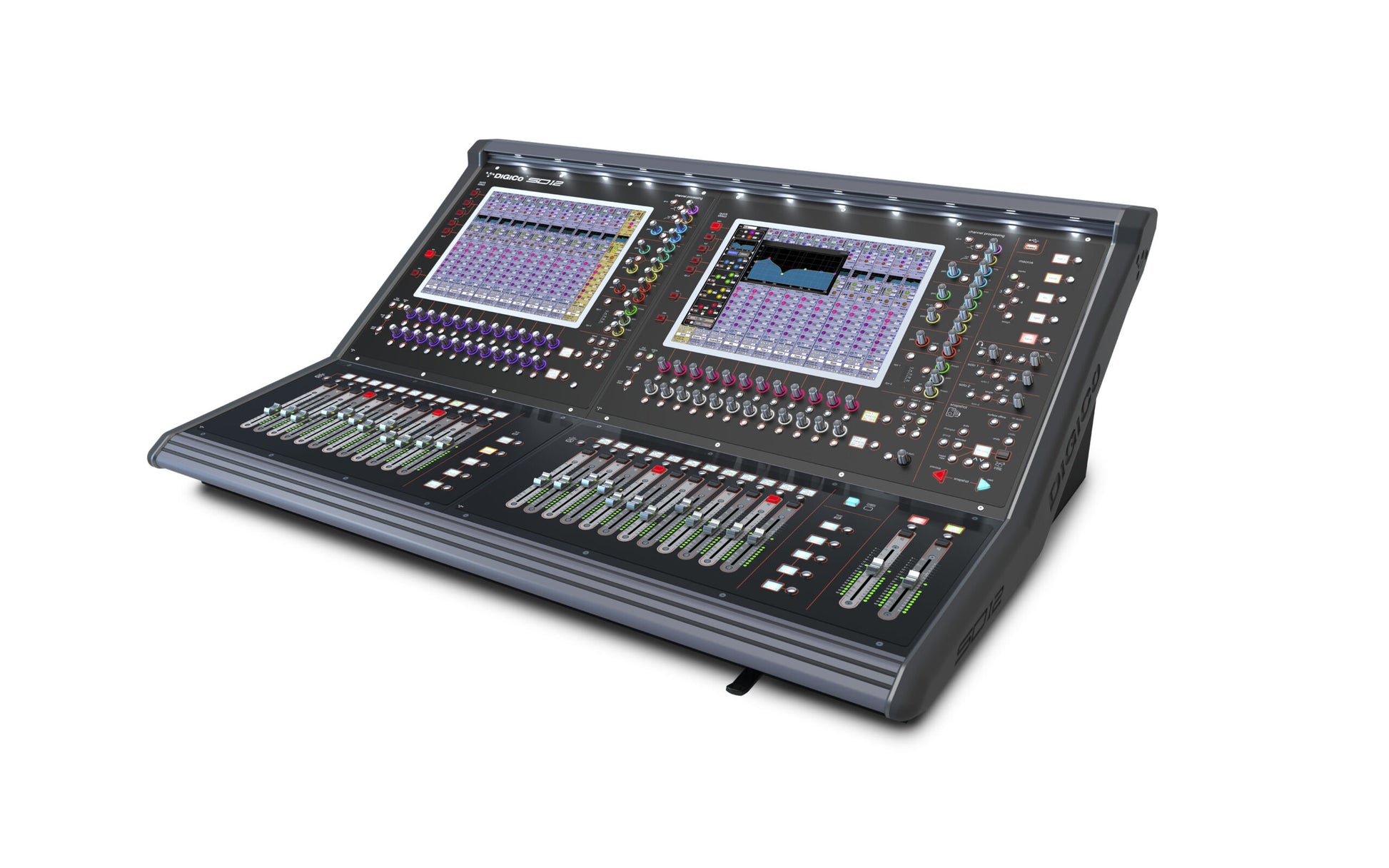

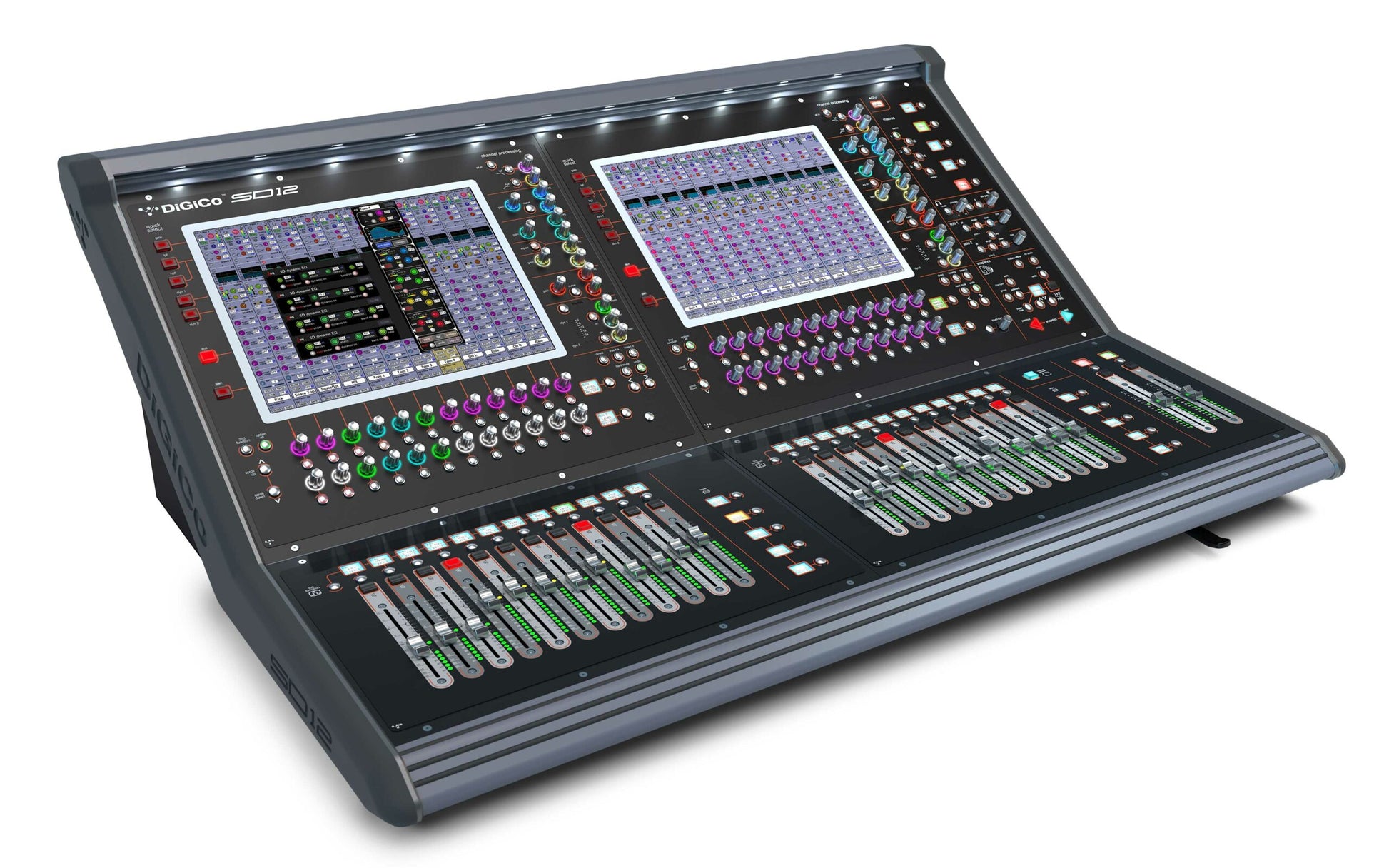

DiGiCo SD12 72-Input Digital Mixing Console

The SD12 delivers audio mixing through its 72 channels at up to 96kHz sampling rates. It features integrated recording capabilities, powered by the latest Super FPGA technology and Core 2 software.

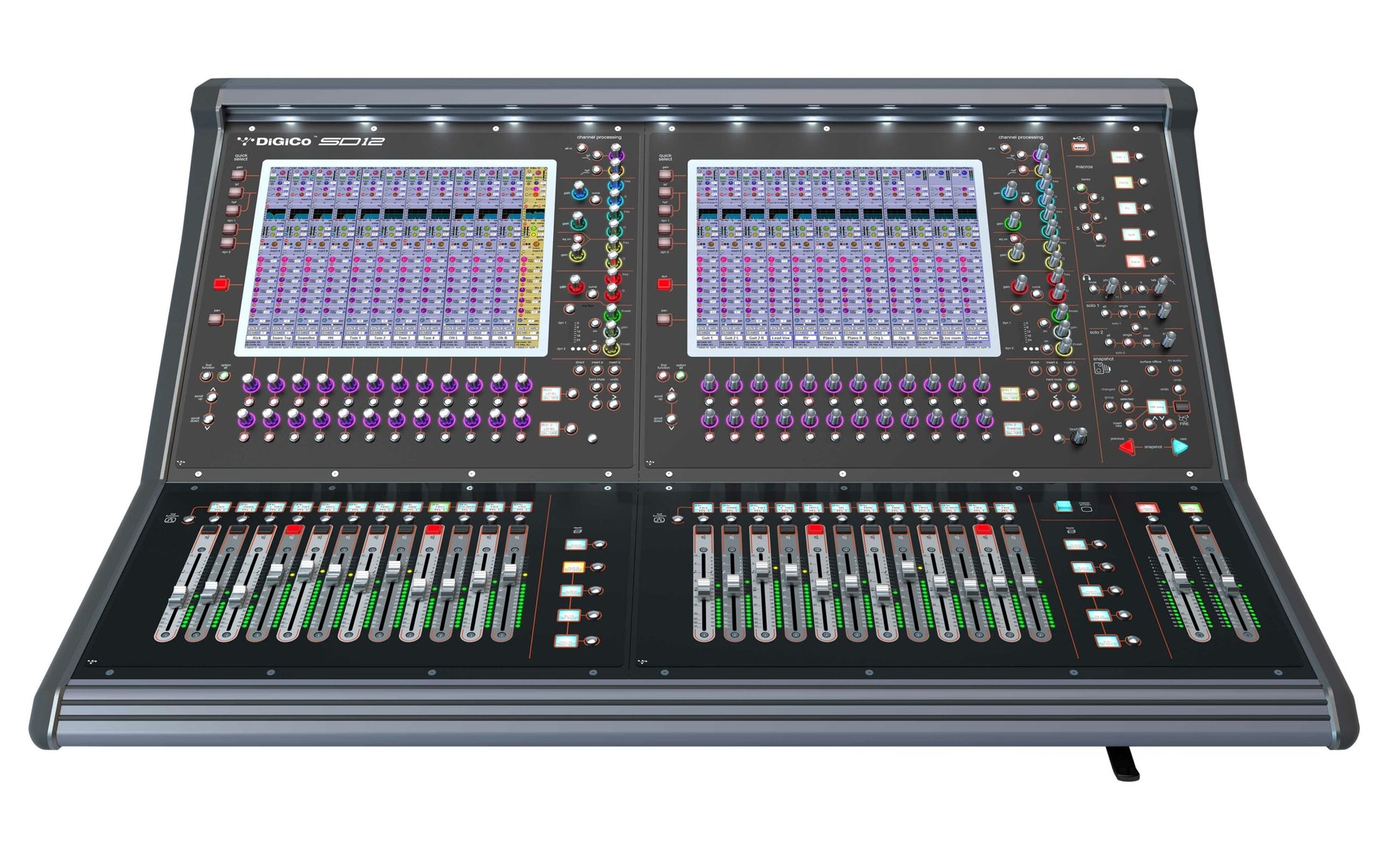

The console provides an overview through its new DVI display output alongside dual 15-inch touchscreens for enhanced control.

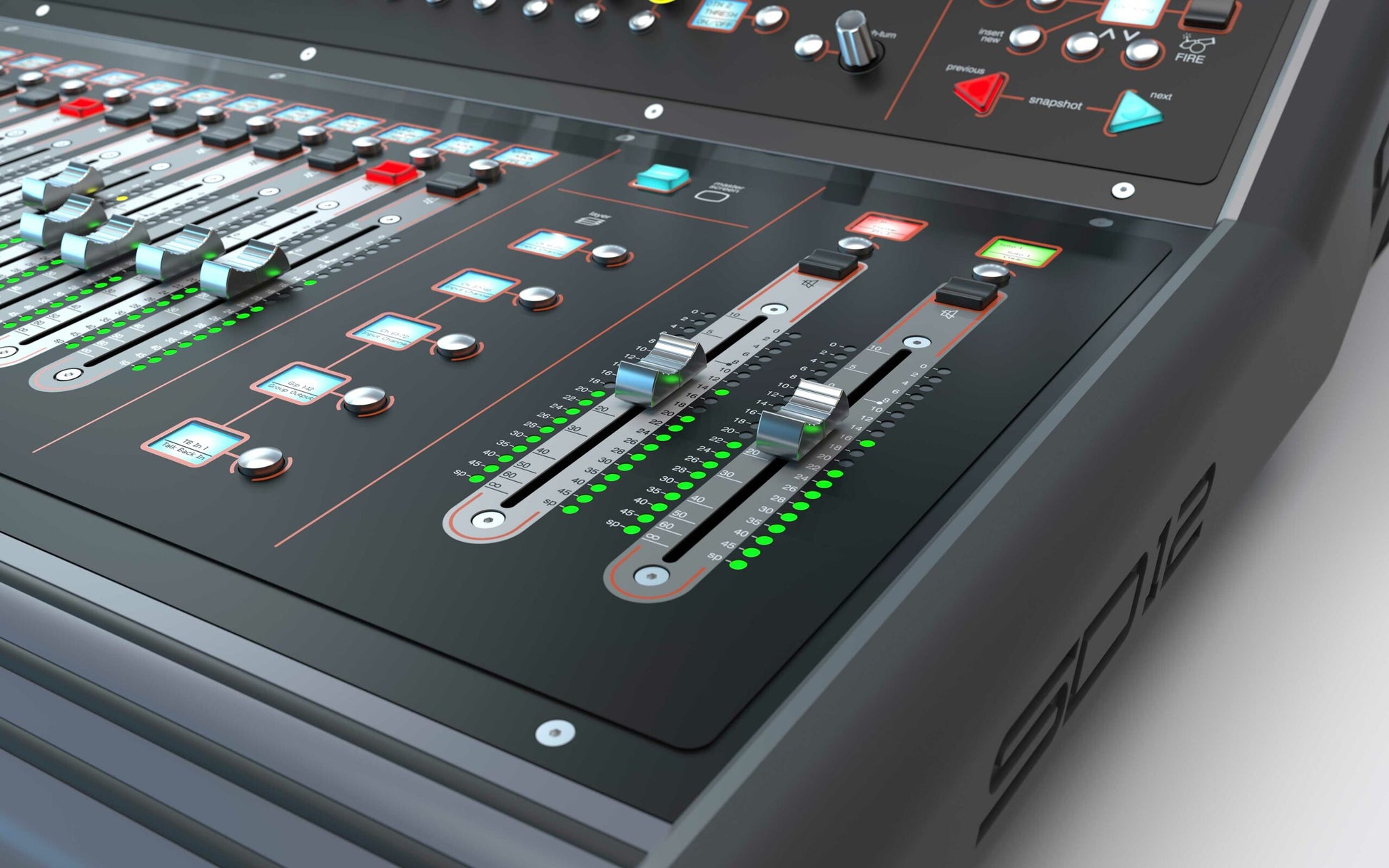

The SD12 is equipped with two assignable master faders and advanced surface connectivity via optional DMI cards.

The console supports various configurations including MADI, One Multi-Mode Optics HMA and One-Multi-Mode Optics ST.

Features:

72 Input Channels with full processing
36 Aux/Sub-Group busses with full processing
12 x 8 Matrix with full processing
Assignable channel layout
User programmable macros
Capable of redundantly mirroring with another SD12 console
Redundant PSUs as standard
Snapshots for seamlessly changing many parameters at once

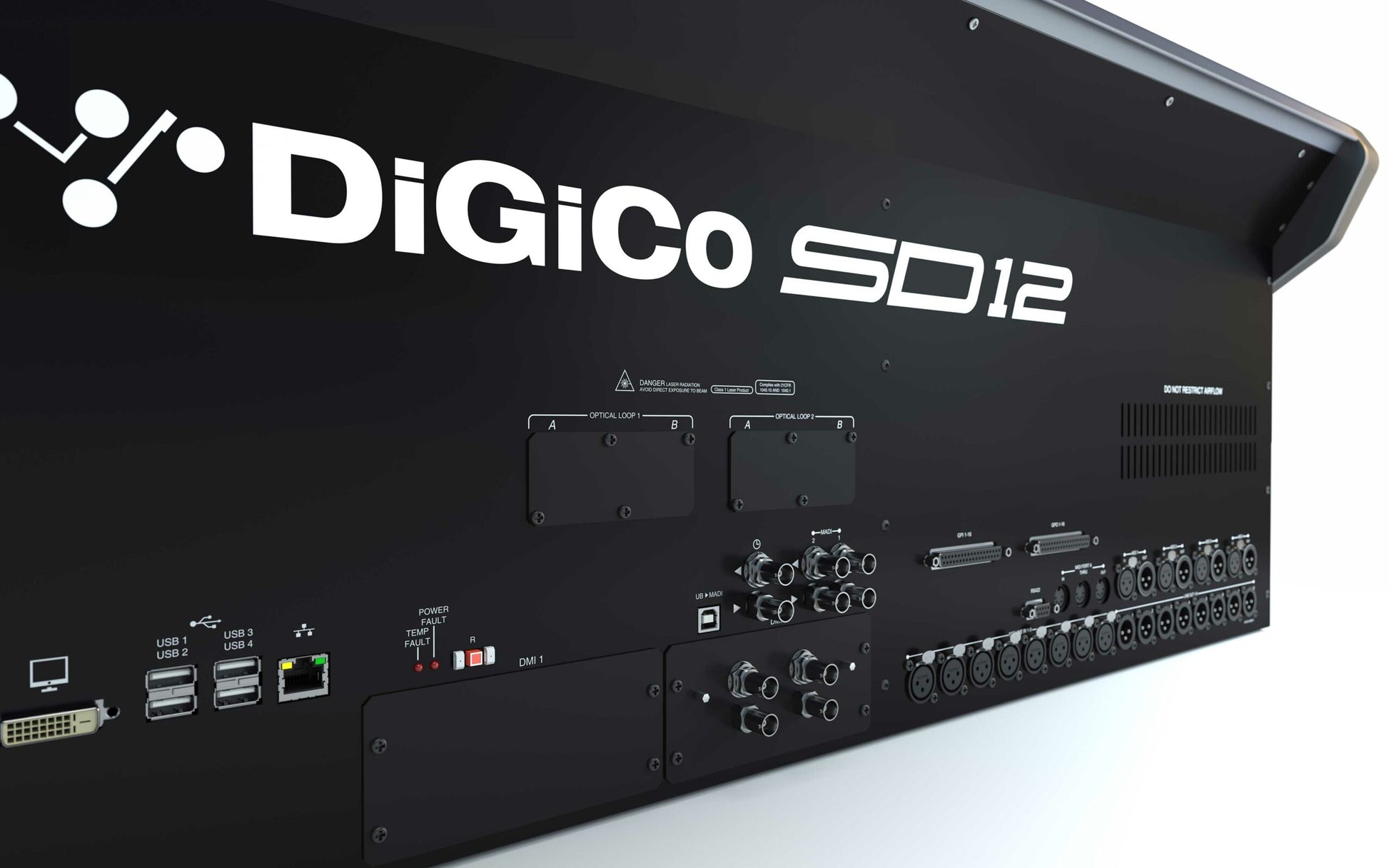

2 DMI Slots to expand the I/O as desired
Integrated UB MADI
Offline software
iPad control
SD12 96 software option
Theatre software option
DMI Interface Options: DMI-MADI-B and DMI-MADI-C

Specifications:

Faders: 26 x 100mm touch-sensitive, motorised
Screens: 2 x 15” LCD high-resolution touch screens
Input Channels: 72
Busses: 36 plus masters Aux / Group busses with full processing Mono / Stereo / LCR
Matrix: 12 Input / 8 Outputs with full processing
Control Groups: 12, selectable for VCA-style, Moving fader, Mute Group
Graphic EQ: 16 x 32-band, Gain +/- 12dB
Internal FX: 12 stereo effects comprising of reverbs and delay/chorus/pitch/enhancer

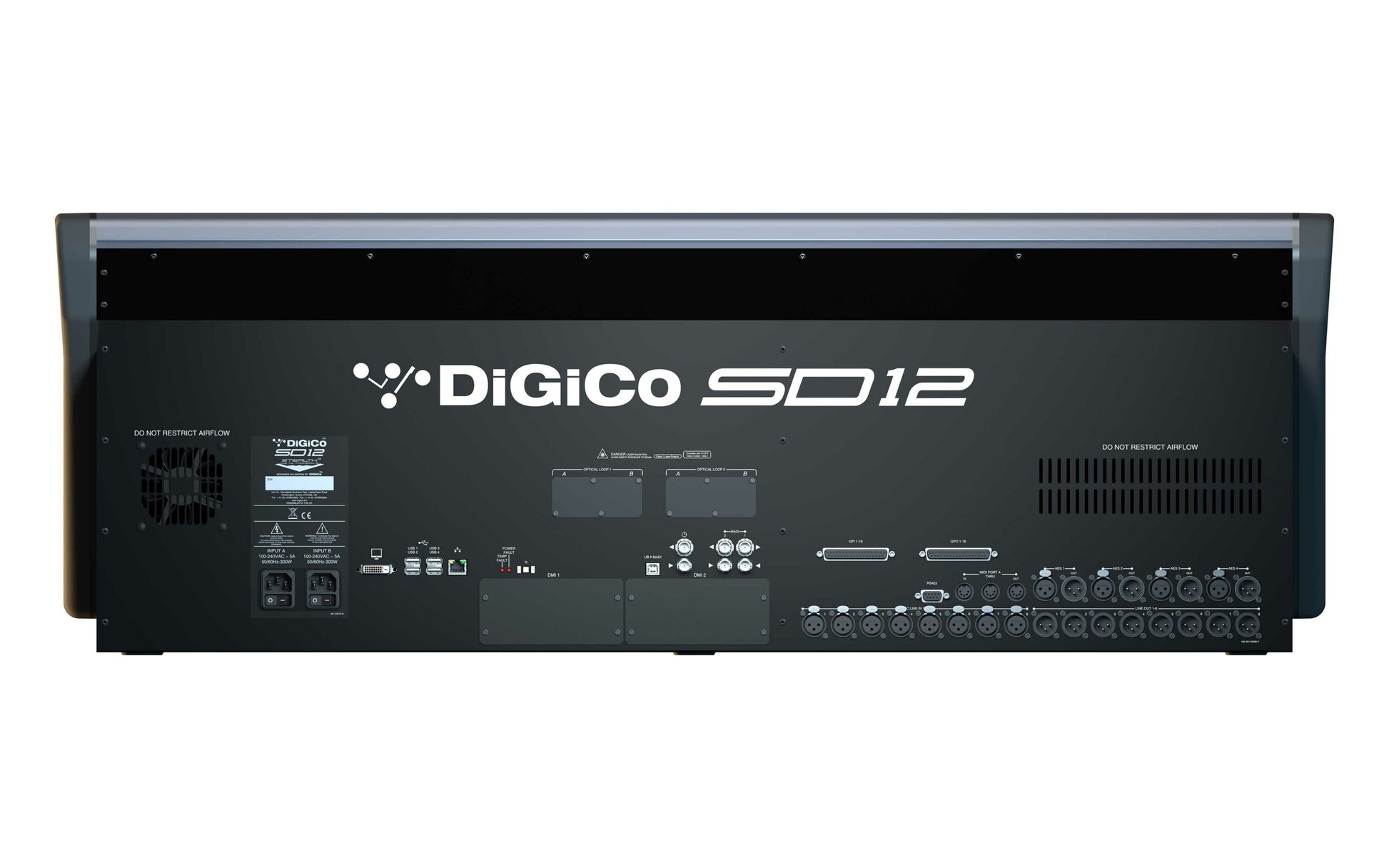

Local I/O: 8 x mic/line I/O, 8 x AES I/O
MADI interface: 2 Interfaces, BNC connectivity
Optic interface: Optional
Sampling rates: 48kHz / 96kHz
GPIO: 2 x DSub37
DMI: 2 x DiGiCo Multichannel Interface
Ext Sync: Wordclock, MADI, Optics
SD12 Dimensions: 1124 mm (w) x 795 mm (d) x 389 mm (h)
SD12 Weight: 42Kg / 96lbs (130Kg / 287lbs with optional flightcase)
SD12 Flightcase: 1270 mm (w) x 570 mm (d) x 1150 mm (h)
SD12 Power Requirements: 90V-260V, 50-60Hz, 150VA. (140W)
