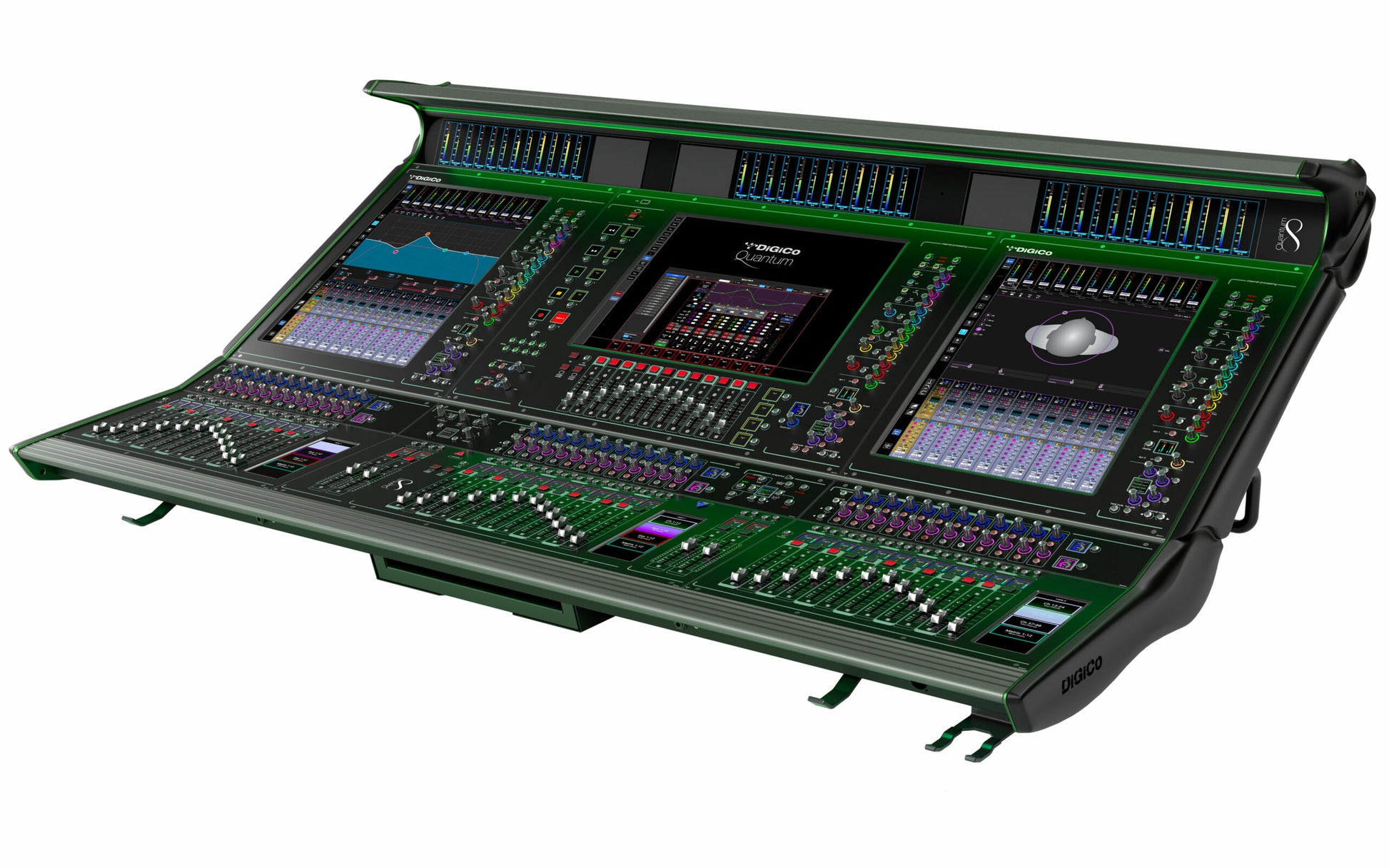

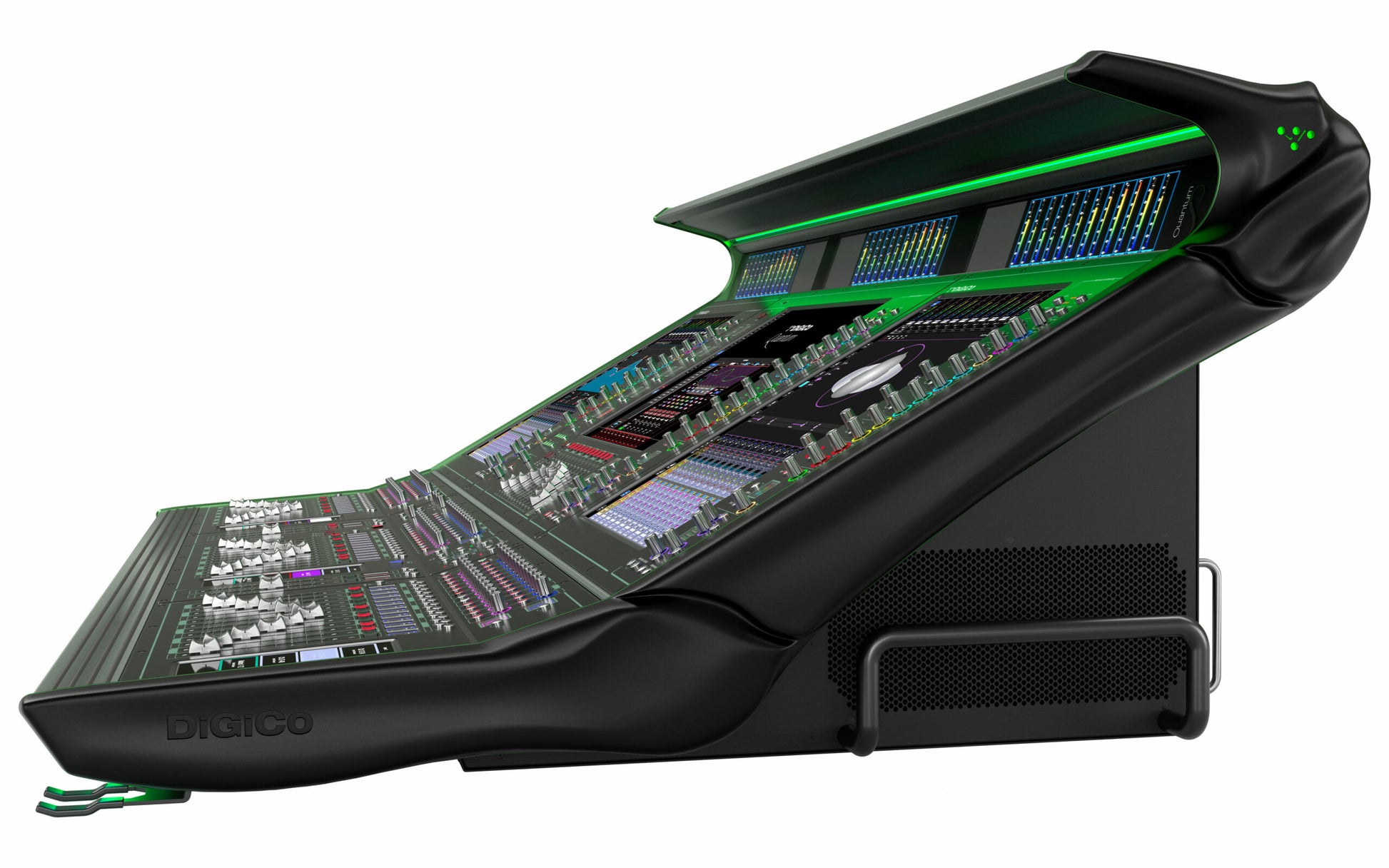

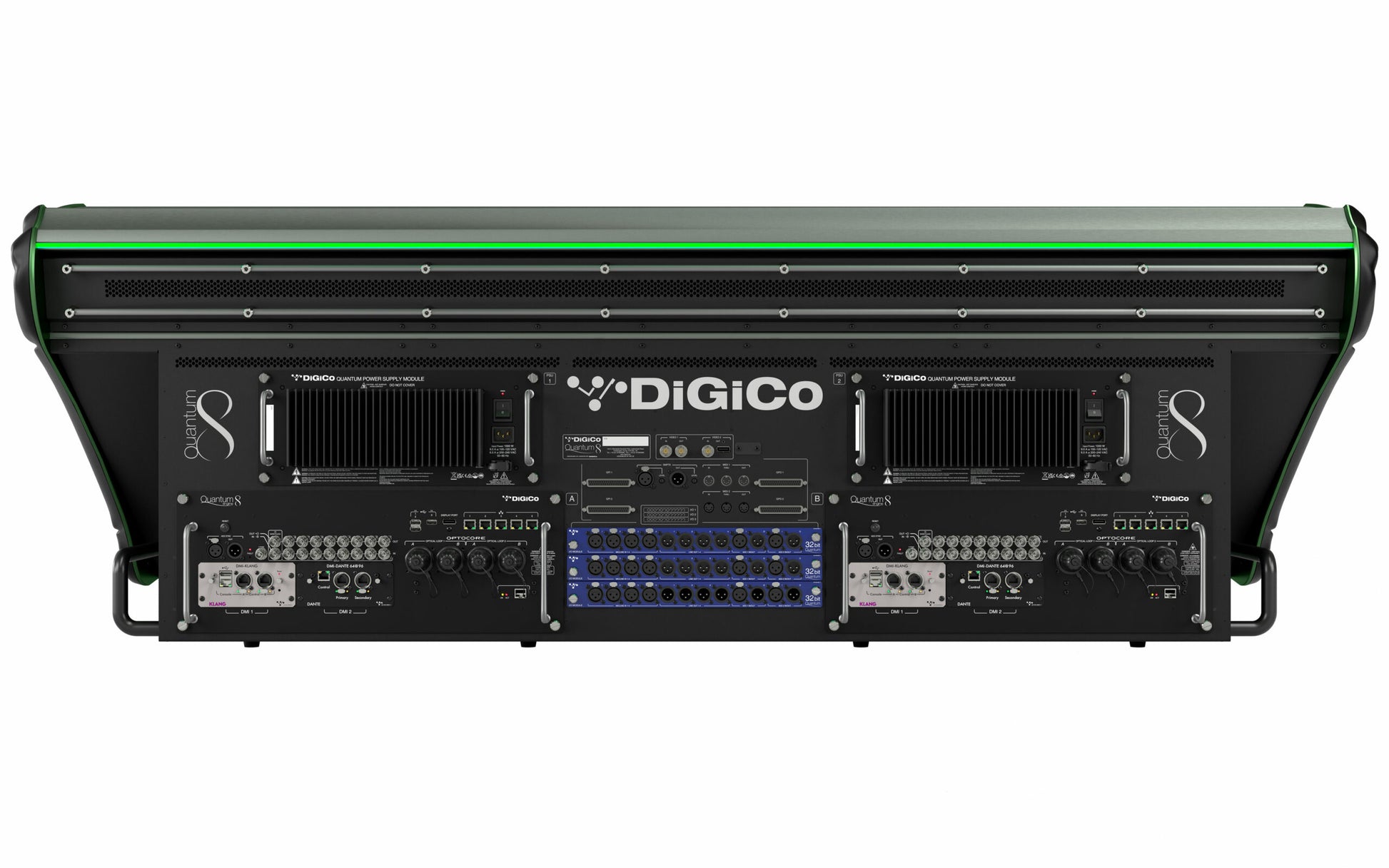

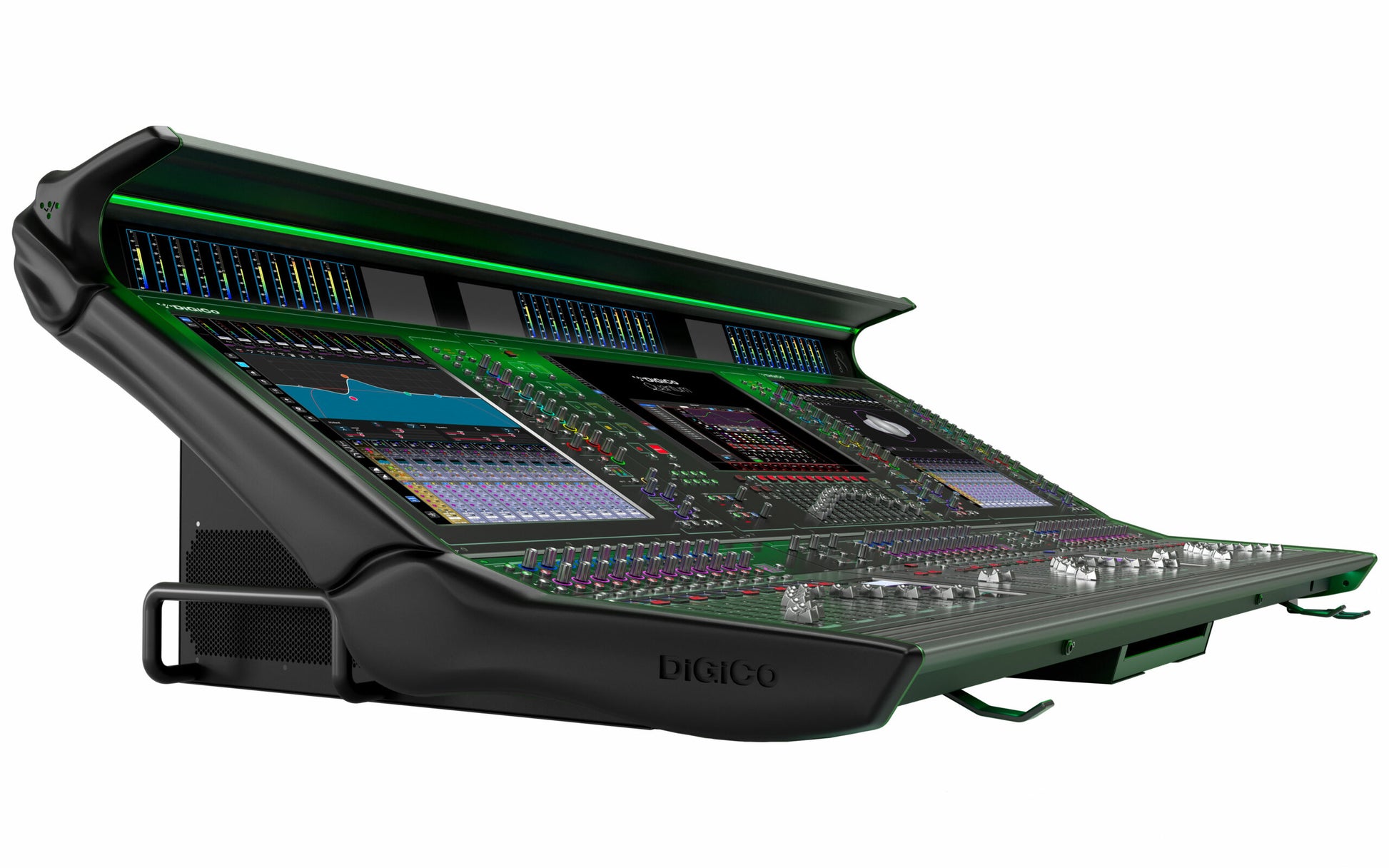

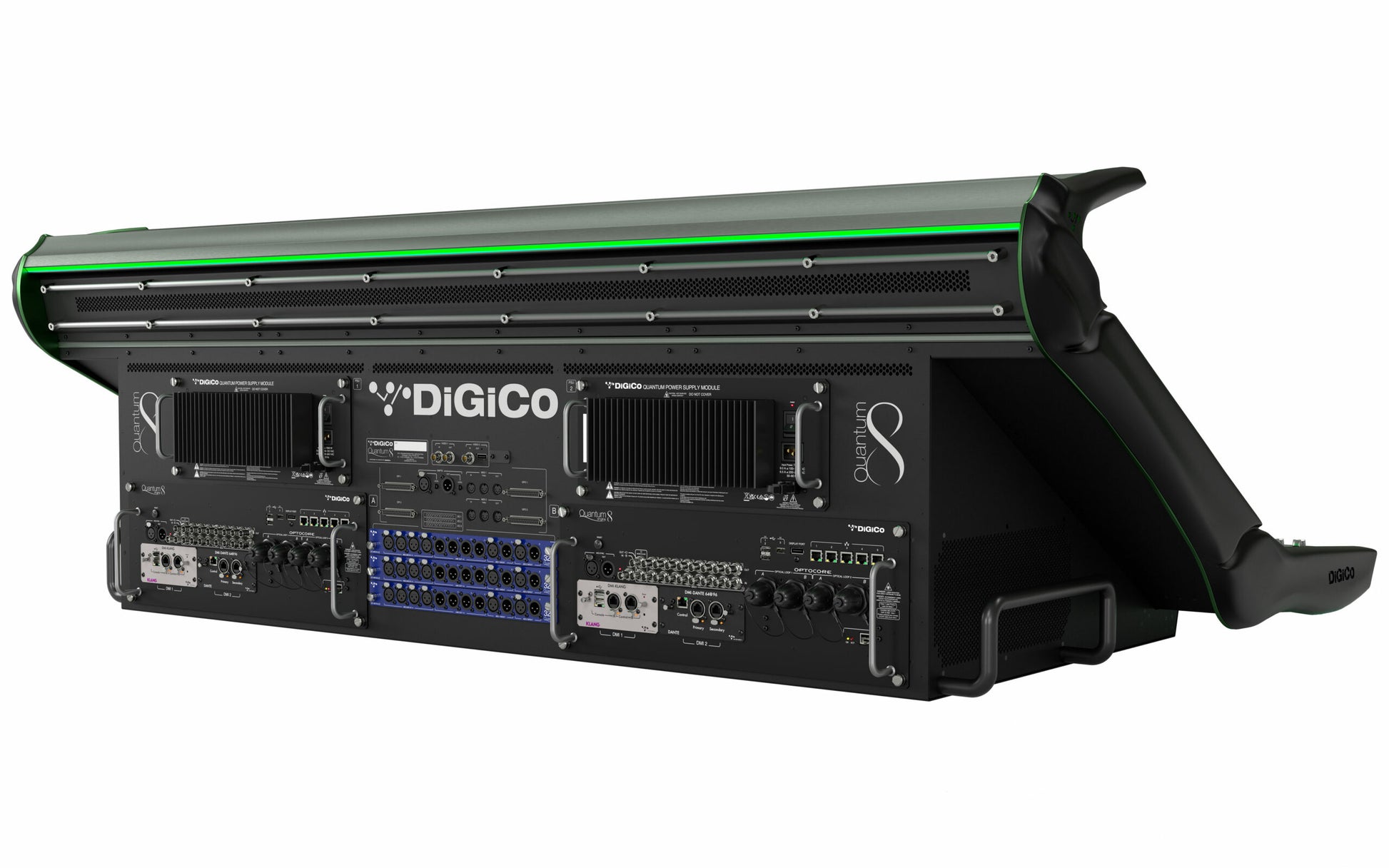

DiGiCo Quantum 852 Digital Mixing Console
The Quantum 852 delivers professional audio control with 1000-nit LCD screens and a dual-engine system. It features 52 faders and three 21.3” high-resolution touchscreens, enabling seamless management of up to 384 input channels and 192 Aux/Sub-Group busses.
The console includes LR, LCR, and 5.1 Master busses, a 64 x 64 Processing Matrix, 36 Control Groups, two Solo busses, 64 FX Rack slots, and 48 Graphic EQs.
The Quantum 852 is equipped with Mustard Processing channel strips, Spice Rack FPGA native plugins, Nodal Processing, and True Solo.
Features:
- 384 Input Channels
- 192 Aux / Sub-Group Busses
- LR/LCR/LCRS/5.1 Master Buss
- 64 x 64 Full Processing Matrix
- 1030 Dynamic Equalizers
- 48/96 kHz Sample Rate
Specifications:
- Faders: 40 x 100mm touch-sensitive, motorised + 12 x 60mm touch sensitive, motorised
- Screens: 3 x 21.3” LCD high-brightness, high-resolution touch screens + 3 x 6.8″ LCD high-brightness, high-resolution touch screens
- TFT Screens: 40 x 1.3″ touch sensitive full colour LCD display + 29 x 1.3″ full colour LCD displays
- Meterbridge: 3 x Custom Mounted 19.2″ LCD high – brightness, high – resolution screens
- Redundancy: Internal removable engine x 2
- Internal hot-swappable PSU x 2
- Input Channels: 384
- Busses Up: 192 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
- Matrix: 64 Input / 64 Outputs with full processing
- Control Groups: 36, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq: 48 x 32-band, Gain +/- 12dB
- Internal FX: 64 stereo effects comprising up to 32 floating point reverbs plus delay/chorus/pitch/enhancer
- Spice Rack: 32 mono / 16 stereo Rack Slots
- Mustard Proc: 128 Processing Strips
- Nodal Proc: 384 Nodal Processors
- Local I/O 12 x mic/line I/O, 12 x AES I/O
- 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity
- Standard Optocore (Dual Loop – Optional)
- Sampling rates 48kHz / 96kHz
- GPIO: 2 x DSub37
- Video Inputs x 2, Outputs x 2
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Fitted as Standard
- Ext Sync Wordclock, AES, Video, MADI, Optocore
- Faders: 40 x 100mm touch-sensitive, motorised + 12 x 60mm touch sensitive, motorised
- Screens: 3 x 21.3” LCD high-brightness, high-resolution touch screens + 3 x 6.8″ LCD high-brightness, high-resolution touch screens
- TFT Screens: 40 x 1.3″ touch sensitive full colour LCD display + 29 x 1.3″ full colour LCD displays
- Meterbridge: 3 x Custom Mounted 19.2″ LCD high – brightness, high – resolution screens
- Redundancy: Internal removable engine x 2
- Internal hot-swappable PSU x 2
- Input Channels: 384
- Busses Up: 192 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
- Matrix: 64 Input / 64 Outputs with full processing
- Control Groups: 36, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq: 48 x 32-band, Gain +/- 12dB
- Internal FX: 64 stereo effects comprising up to 32 floating point reverbs plus delay/chorus/pitch/enhancer
- Spice Rack: 32 mono / 16 stereo Rack Slots
- Mustard Proc: 128 Processing Strips
- Nodal Proc: 384 Nodal Processors
- Local I/O 12 x mic/line I/O, 12 x AES I/O
- 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity
- Standard Optocore (Dual Loop – Optional)
- Sampling rates 48kHz / 96kHz
- GPIO: 2 x DSub37
- Video Inputs x 2, Outputs x 2
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Fitted as Standard
- Ext Sync Wordclock, AES, Video, MADI, Optocore
