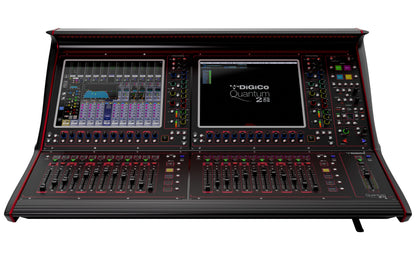

DiGiCo Quantum 225DS Digital Mixing Console

DiGiCo Quantum 225DS Digital Mixing Console

Following on from Quantum 338, Quantum 225DS brings the power of Quantum in a compact and robust worksurface.

Quantum 225DS incorporates all of the new design features introduced in 2020 with the Quantum 338, and uses three large-scale seventh generation FPGAs to continue the unrivaled Quantum legacy.

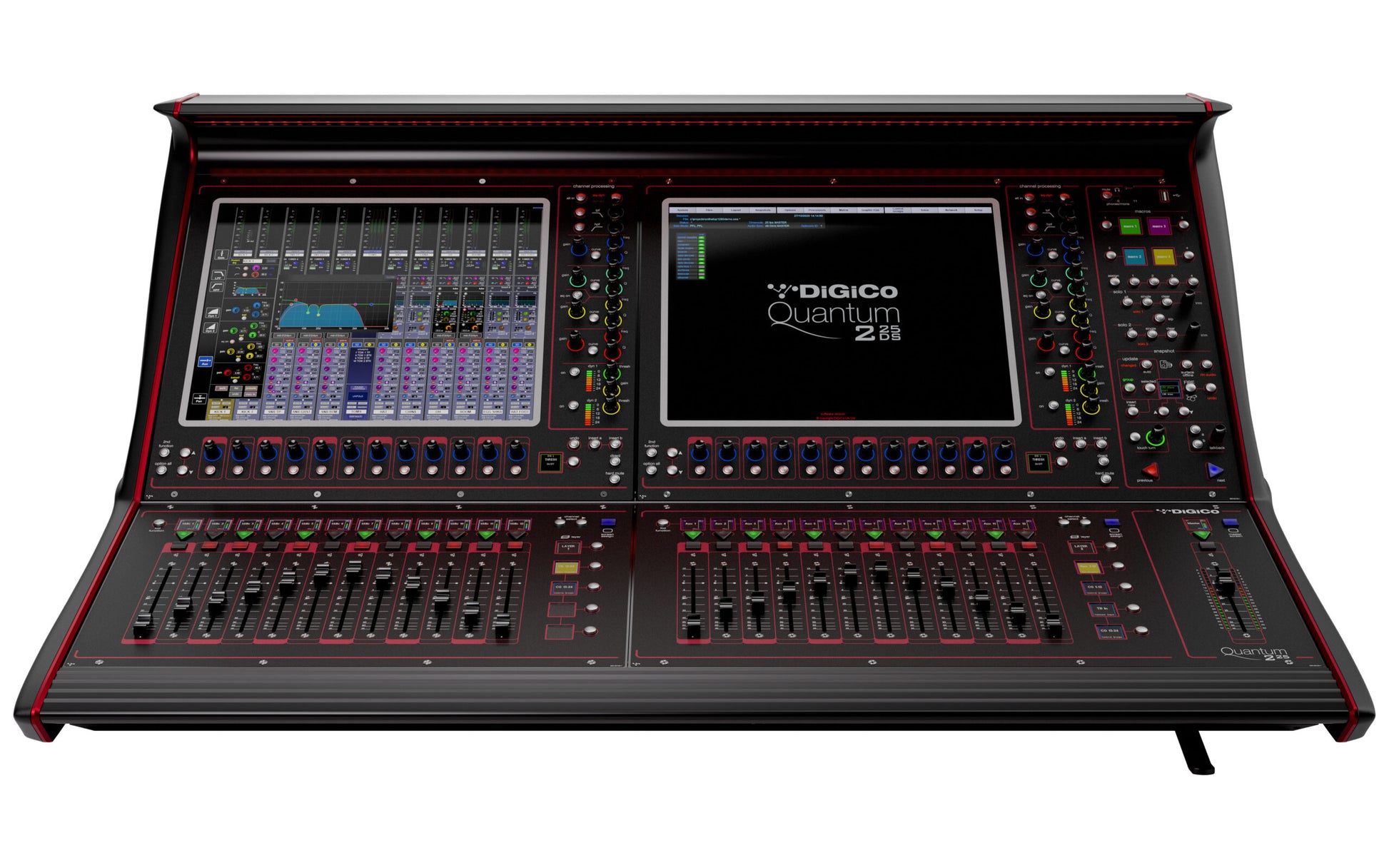

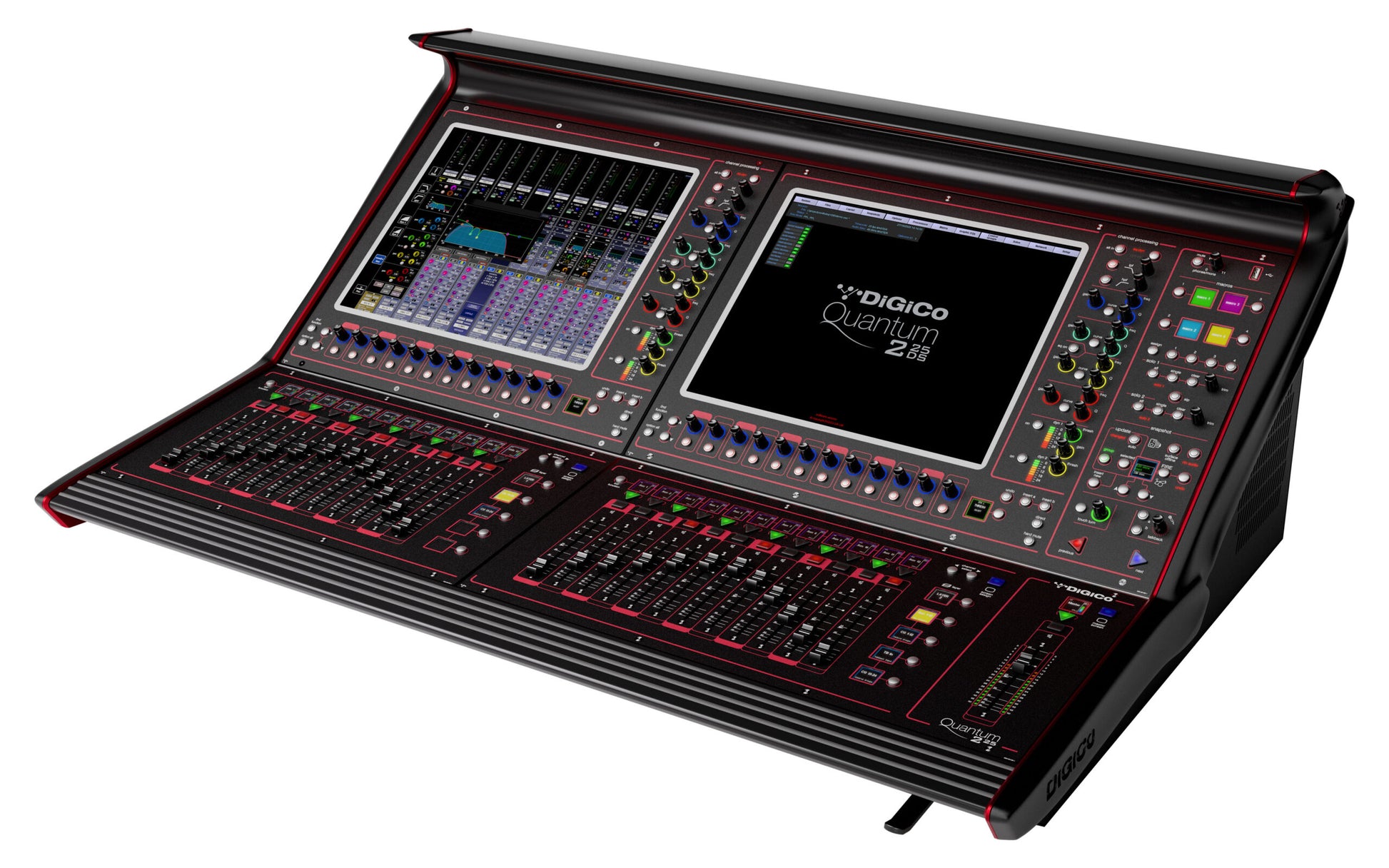

The console merges tried and tested workflows with immense processing muscle, bold innovation and all of the Quantum features, giving you the ultimate tool set. Two 17-inch, 1000 nit, high brightness multitouch screens with both a meter bridge and soft quick select buttons enable quick and intuitive operation. 41 individual TFT LCDs displaying channel information and metering, bank information, macros and more guide you immediately to the controls you need. 25 100mm touch sensitive faders in two banks of 12 plus a dedicated user-assignable master fader with high resolution metering complete the control surface.

With a maximum of 72 input channels with 36 busses and a 12 x 12 matrix, all with full channel processing, Quantum 225DS brings Quantum to a wider user base. Includes Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo as standard.

The DiGiCo Quantum 225DS Digital Mixing Console is also available in the Quantum 225DST or Quantum 225DS Pulse versions.

Features:

Specifications:

• Faders: 25 x 100mm touch-sensitive, motorised
• Screens: 2 x 17” LCD high – brightness, high – resolution touch screen
• Input Channels: 72
• Busses: Up to 36 Aux / Group busses with full processing Mono / Stereo / LCR plus a Master
• Matrix: Up to 12 Input / 12 Outputs with full processing
• Control Groups: Up to 12, selectable for VCA-style, Moving fader, Mute Group
• Graphic Eq: 16 x 32-band, Gain +/- 12dB
• Internal FX: Up to 12 stereo effects comprising floating point reverbs and delay/chorus/pitch/enhancer
• Spice Rack: 6 mono / 3 stereo Rack Slots
• Mustard Proc: 24 Processing Strips
• Nodal Proc: 32 Nodal Processors

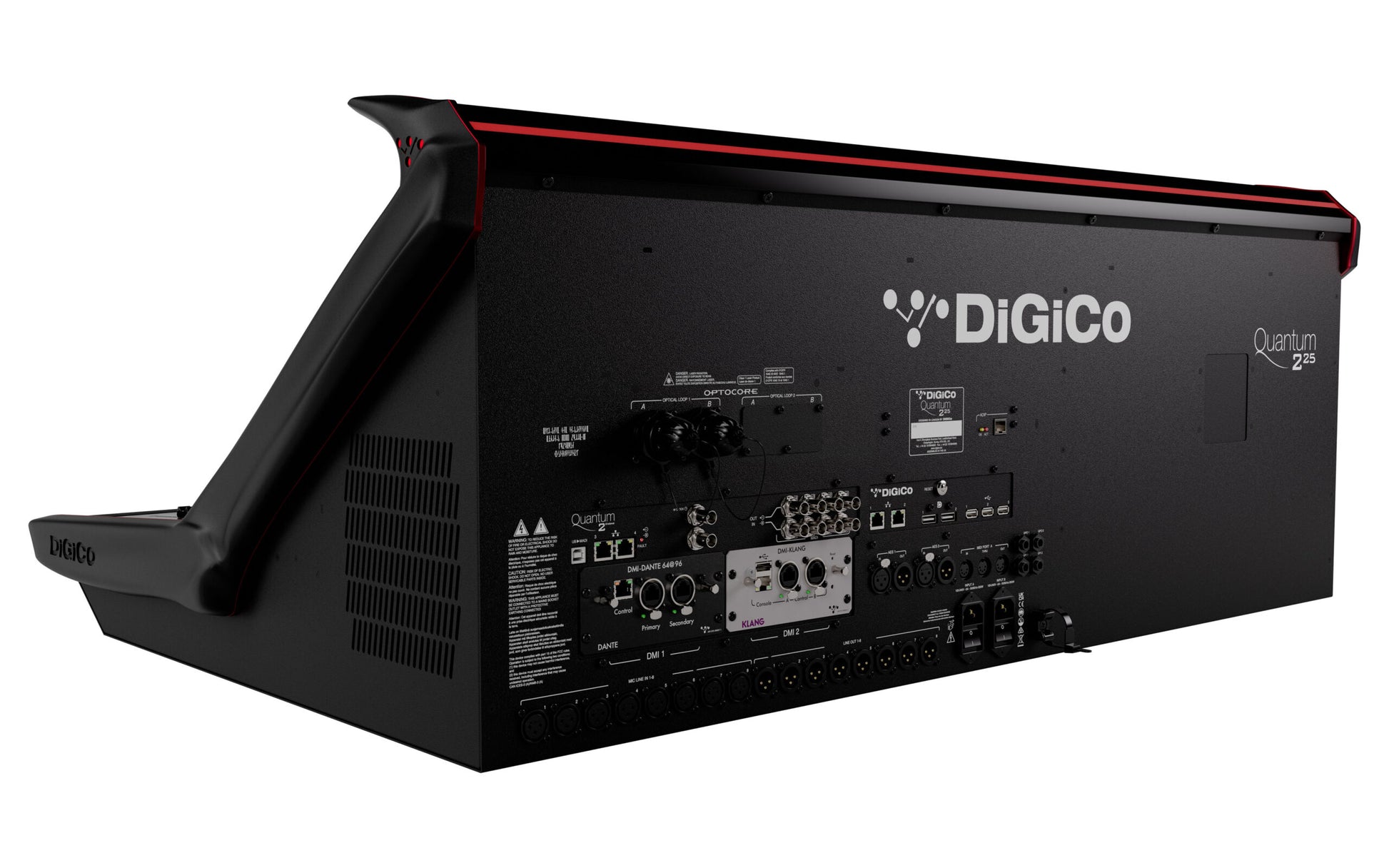

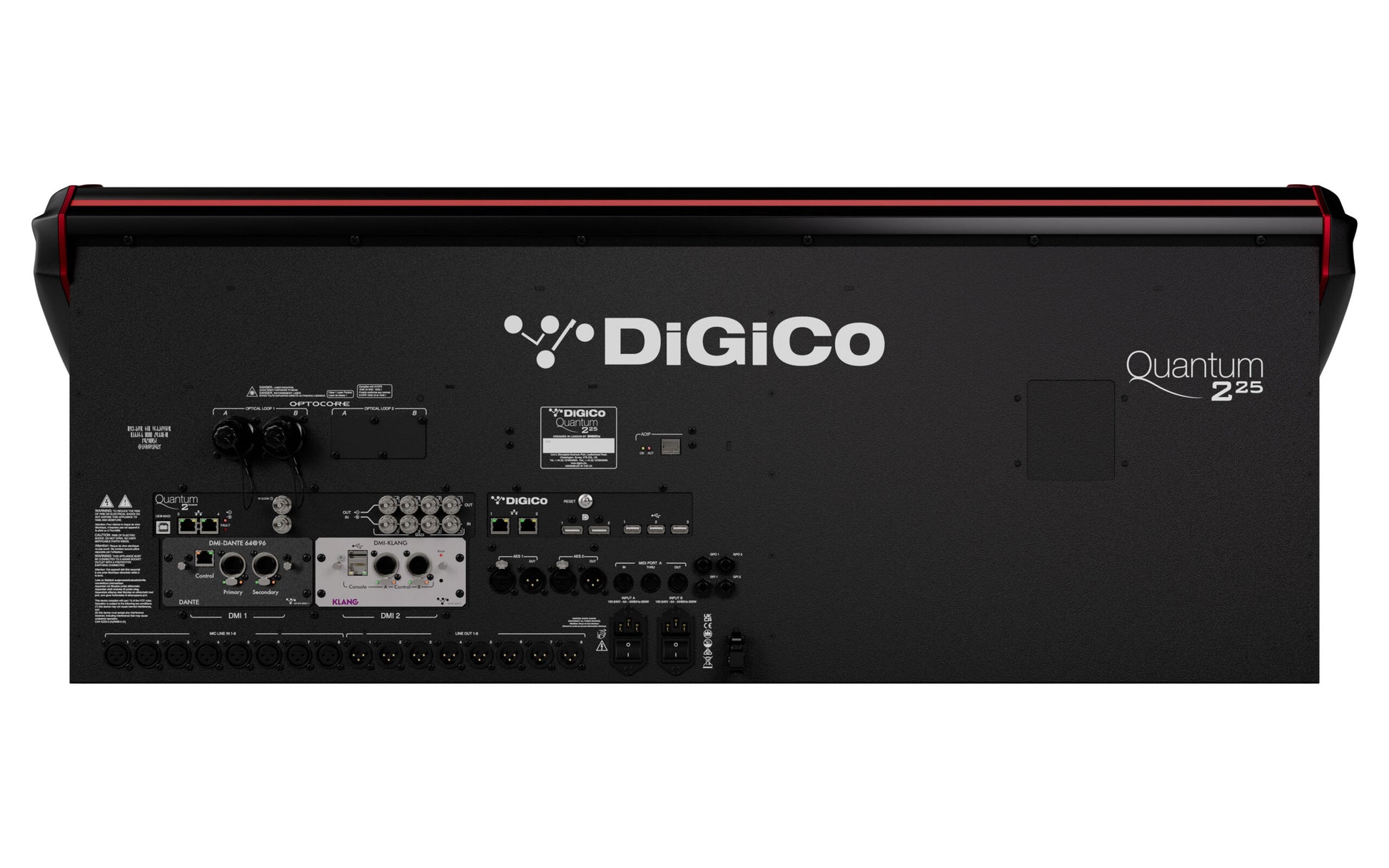

• Local I/O: 8 x mic/line I/O, 2 x AES I/O (4 channels)
• MADI interface: 4 x interfaces @ 48kHz, 2 interfaces @ 96kHz, BNC connectivity
• Optocore Interface: Optional (dual loop available)
• Sampling rates: 48kHz / 96kHz
• GPI/GPO: 2
• DMI: 2 x DiGiCo Multichannel Interface
• Waves: Optional
• Ext Sync: Wordclock, MADI, Optocore
• Quantum 2 Dimensions: 1124mm (w) x 801mm (d) x 436mm (h)
• Quantum 2 Weight: 43Kg / 95lbs (138Kg / 304 lbs. with flightcase)
• Quantum 2 Flightcase: 1260mm (w) x 601mm (d) x 1141mm (h)
• Power Requirements 100V-240V, 50-60Hz, 255VA

I/O Racks:

• DiGiCo SD-Rack
• DiGiCo SD-MiNi Rack Stage Box
• DiGiCo SD-Nano Rack
• DiGiCo D2-Rack
• DiGiCo D-Rack
• DiGiCo DQ-Rack
• DiGiCo MQ-Rack
• DiGiCo Orange Box I/O Rack
• DiGiCo Waves SoundGrid I/O Rack
• DiGiCo Purple Box Convertor
