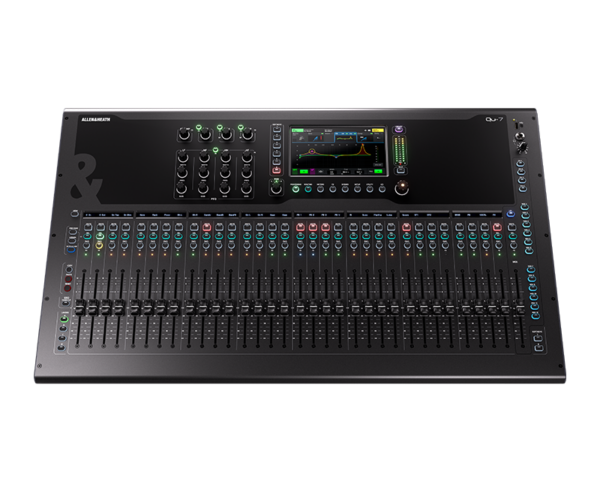

Allen & Heath Qu-7 Mixer

Allen & Heath Qu-7 Mixer

Write a review

SKU: QU-7/240X

Shipping calculated at checkout.

Available options

View full details

Description

Allen & Heath Qu-7 Compact 38in/24out 96kHz Mixer

The Allen & Heath Qu-7 delivers mixing in a compact format with the advanced XCVI core processing at 96 kHz.

This mixer features improved mic preamps, new 96 kHz converters, and a redesigned UI with per-channel chromatic meters, and handles complex setups effortlessly.

The Qu-7 handles 38 inputs and 24 outputs with DEEP Processing, Gain Assistant, and Feedback Assistant.

The 16×16 Dante interface enables system integration, while built-in recording offers 32×32 USB-C, 32-track SD card, and USB-A stereo options.

This mixer allows for connection of  up to 128×128 channels via SLink port to other A&H consoles and Everything I/O.

The Allen & Heath Qu-7 Mixer is also available as the Qu-7D version.

Features:

Processing & FX

  • 96kHz XCVI Core
  • 6 Multi-FX Engines with dedicated Stereo Returns
  • DEEP Processing Ready

Mix Architecture

  • 38 Inputs to Mix (32x Mono/Linkable, 3x Stereo)
  • 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
  • 4 Mono/Linkable Matrix
  • Stereo Main LR Output

I/O

  • 32 XLR/Jack ‘Combi’ Mic/Line Input Sockets
  • 2 Stereo Line Input Sockets (each 2x TRS)
  • 20 XLR Output Sockets
  • 1 XLR Talkback Socket
  • 2 TRS Output Sockets
  • 1 AES3 Stereo Digital Output Socket
  • 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
  • 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-7D only)
  • Stereo Headphone Output

Control

  • 7” Capacitive Touchscreen
  • 33 100mm Motorised Faders
  • 4 Channel Strip Layers
  • Remote control via free apps – Windows/MacOS/iOS/Android
  • 8 SoftKeys
  • Configurable single/dual Footswitch Connection

Recording & Playback

  • USB-A For stereo audio record/playback and data transfer
  • USB-C Audio interface for multichannel record/playback (32×32)
  • SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)

Misc

  • 12V Lamp Socket
  • Configurable Chromatic Channel Meter LED’s
