Allen & Heath DM32 MixRack

Allen & Heath DM32 MixRack

Write a review

SKU: DLIVE-DM32U/240X

Shipping calculated at checkout.

Available options

View full details

Description

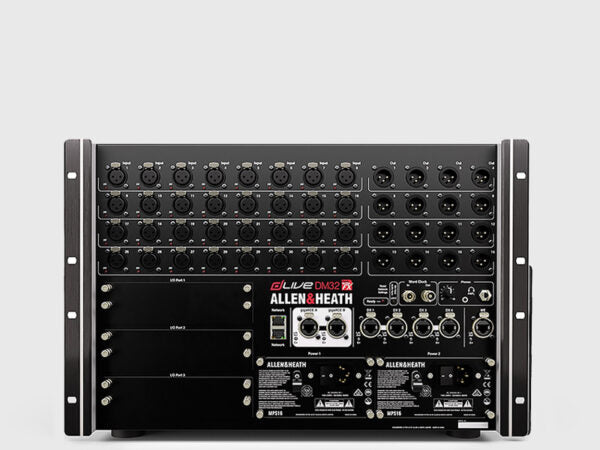

Allen & Heath DM32 MixRack

The Allen & Heath DM32 MixRack delivers transparent, detailed audio through preamps with Active PAD and 96 kHz variable-bit-depth processing, ensuring ultra-low noise and exceptional dynamic range.

The integrated RackUltra FX card provides 10 studio-quality algorithms, including Vocal Shifter, Vocal Tuner, Vocal Gridder, Spaces/Plate Reverb Designers, Harmonisers, Saturator, and Amp+Cab Distortion.

This rack can be operated standalone or integrate with dLive Director (PC/Mac), MixPad (iPad), or IP Controllers.

Features:

  • 32 mic/line inputs
  • 16 line outputs
  • 3 I/O Ports
  • Redundant Surface Link
  • Redundant DX Links
  • Redundant PSU (optional)

XCVI 160×64 FPGA core

  • 96kHz sample rate
  • Variable bit-depth for ultimate precision and noise performance
  • Virtually infinite mix headroom thanks to 96bit accumulator
  • Class-leading, ultra-low latency < 0.7ms

128 Input Channels with full processing

    64 Mix Outputs with full processing

      Configurable 64-bus architecture (group, FX, aux, matrix, mains)

      • LR, LCR and up to 5.1 mains mode
      • Multiple PFLs

      8 RackUltra FX with dedicated stereo sends, returns and pre/post processing

        16 RackExtra FX with dedicated stereo returns

          24 DCAs

            AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones

              Built-in signal generator and RTA

                New preamp design for extra transparency

                  Unique Active PAD circuit for consistent performance with any source

                    Reversible rack ears design

                      Flush front panel with ultra-quiet fan

                      Specifications:

                      • gigaACE link to Surface (dual redundant)
                      • 2 DX links for I/O expansion (dual redundant)
                      • 3 I/O Ports – 128ch 96kHz each
                      • Dedicated ME-1 48kHz port
                      • 2 Network ports
                      • Wordclock BNC I/O
                      • Add up to 28 DX I/O expanders via DX Hub modules or DX Link cards
                      • Add up to 4 dLive Surfaces
                        – 1 via integrated gigaACE socket
                        – 3 via optional gigaACE cards
                      • Hot-swappable PSU (dual redundant option)
                      • 3 Year Warranty
