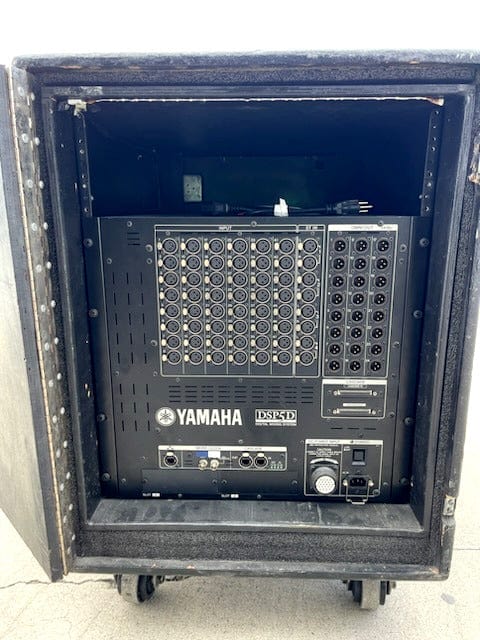

Yamaha DSP5D 10-Unit Mounted Audio Console

The DSP5D provides essentially all of the functionality of a PM5D-RH minus the control surface, in a rack-mountable unit that can be seamlessly controlled from a PM5D (RH) console.

Specifications:

• Internal processing: 32bit (Accumulator=58bit)
• Sampling frequency rate:
  • Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • External:
    • 42.9975kHz to 49.2kHz
    • 85.995kHz to 98.4kHz
• Signal Delay:
  • Less than 2.5ms INPUT to OMNI OUT (@fs=48kHz)
  • Less than 1.25ms INPUT to OMNI OUT (@fs=96kHz)
• Total harmonic distortion CH INPUT to OMNI OUT Input Gain=Min.:
  • Less than 0.05% 20Hz to 20kHz, (@44.1kHz, 48kHz)
  • Less than 0.05% 20Hz to 40kHz, (@88.2kHz, 96kHz)
• Frequency response CH INPUT to OMNI OUT:
  • 20Hz to 20kHz, 0, +0.5, -1.5dB @44.1kHz, 48kHz
  • 20Hz to 40kHz, 0, +0.5, -1.5dB @88.2kHz, 96kHz
• Dynamic range (maximum level to noise level):
  • 110dB, DA Converter (OMNI OUT)
  • 108dB, AD+DA (OMNI OUT)
• Hum & noise level(20Hz to 20kHz), Rs=150Ω:
  • -128dB equivalent input noise
  • -86dB residual output noise
• Crosstalk (@1kHz)Input Gain=Min.:
  • -100dB*3, -80dB, Adjacent Input Channels
  • -100dB*3, -80dB, Input to Output
• Phantom Power: +48V
• Power requirements: AC100-240V 50/60Hz and/or use PW800W
• Power consumption: 300W
• Dimensions (W x H x D): 480 x 440 x 460mm (18.9" x 17.3" x 18.1")
• Weight: 38.0kg (83lbs)
