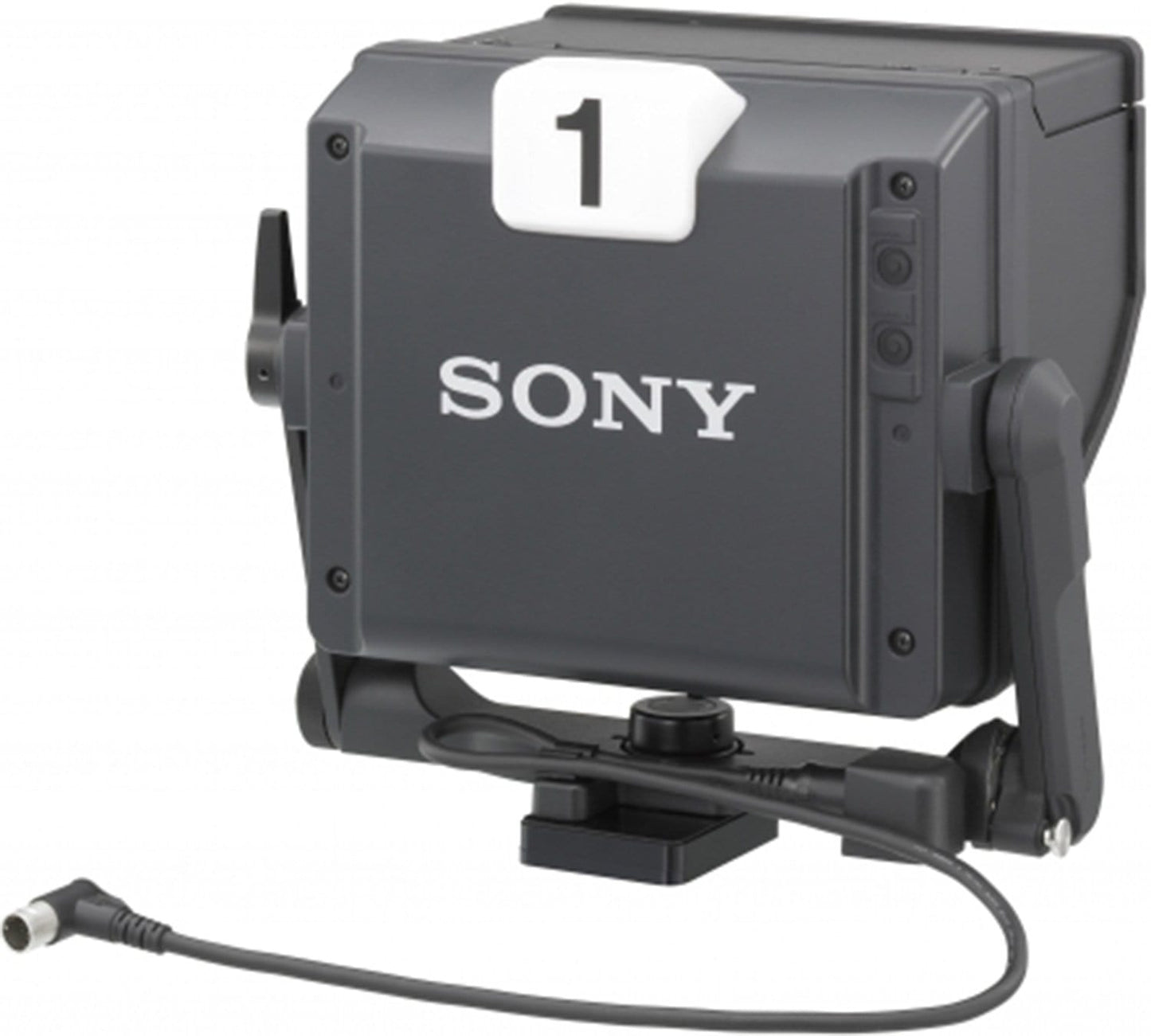

Sony HDVF-C950W 9 Inch LCD Viewfinder for HDC-1500

The large display size, high resolution, and wide viewing angle provided by the HDVF-C950W make it ideal for high performance studio and OB applications. The fast response of the new colour LCD screen are especially beneficial when shooting sports and other fast moving applications. Larger Image size.

Features:

• Multi-Format Use - Accommodates all frame rates available with the HDC-1500 family cameras
• Compact - The extremely compact design allows much greater panning and tilting angles than CRT-base viewfinders, and is compatible with cameras in portable configuration.
• Wide Colour Gamut - The new LCD screen provides accurate reproduction of a wider range of colours
• Very low power consumption

Specifications:

• General:
  • Power supply: DC 10.5 to 17.0 V
  • Power consumption: 18 W
  • Operating temperature: -20 °C to 45 °C
  • Storage temperature: - 20 °C to 60 °C
  • Mass: 2.7 kg not including hood
  • Dimensions (WxHxD): 290 x 265 x 199mm including hood
  • LCD: 9-inch diagonal colour TFT screen
  • Image display area dimensions: 197 x 111 mm (16:9 aspect ratio)
• Performance:
  • Brightness: 350 cd/m2
  • Resolution: 400 or more lines
  • Supported formats: Effective scanning lines/Format/Horizontal scanning frequency/Vertical scanning frequency
    • 1080/23.98PsF/26.97 kHz/47.95 Hz
    • 1080/24PsF/27 kHz/48 Hz
    • 1080/25PsF/28.13 kHz/50 Hz
    • 1080/29.97PsF/33.72 kHz/59.94 Hz
    • 1080/30PsF/33.75 kHz/60 Hz
    • 1080/50i/28.13 kHz/50 Hz
    • 1080/59.94i/33.72 kHz/59.94 Hz
    • 1080/60i/33.75 kHz/60 Hz
    • 1035/59.94i/33.72 kHz/59.94 Hz
    • 1035/60i/33.75 kHz/60 Hz
  • Color temperature: 6500 K
  • Indicators: R Tally, G Tally, Batt, !
  • Input signals: Pb, Pr: 0.7 Vp-p, asynchronous, 75 ? terminated Y: 1.0 Vp-p, synchronous, 75 Ω terminated
• Connectors:
  • CAMERA connector: Round type 20-pin
