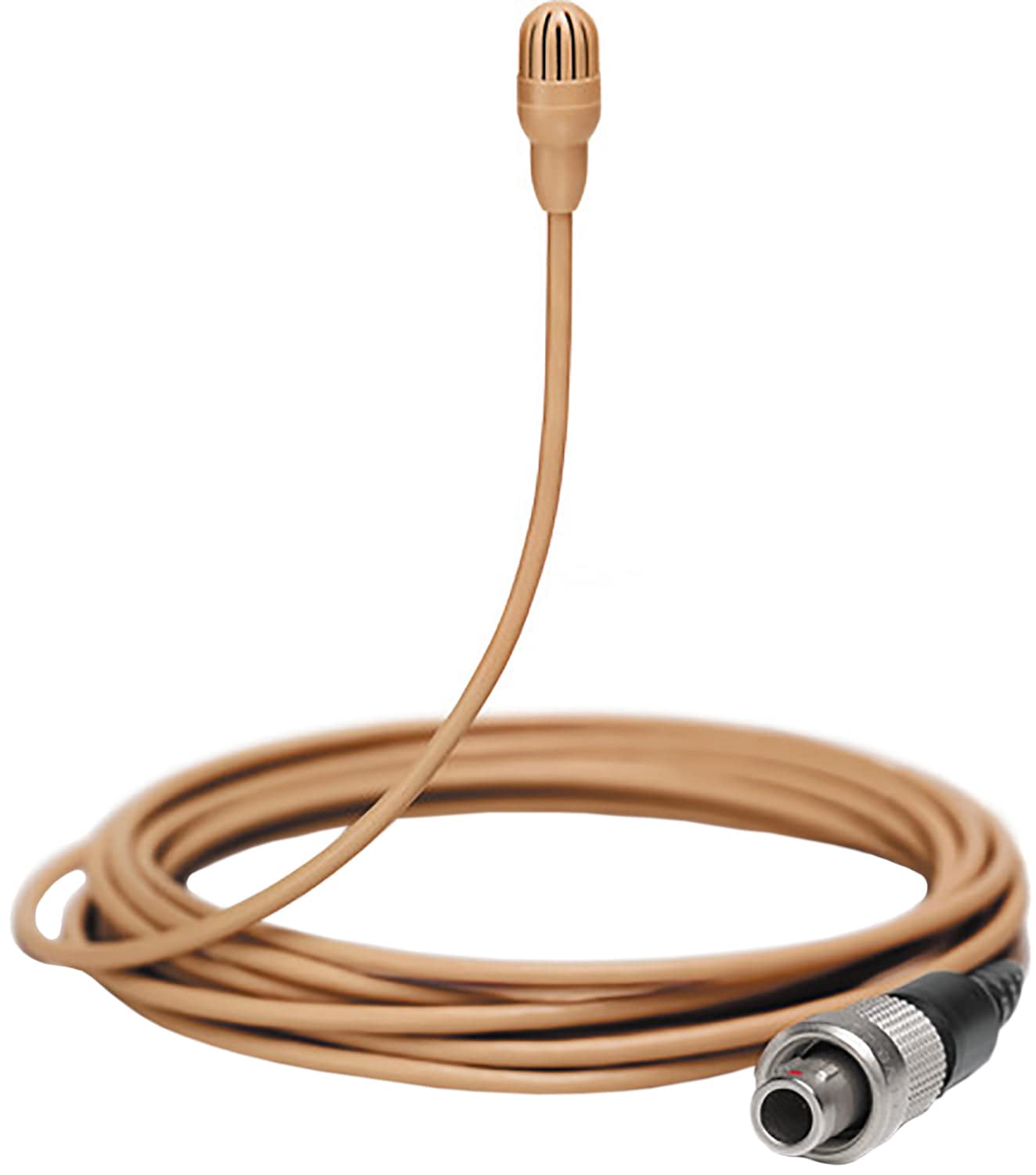

Shure TL45C/O-LEMO TwinPlex Subminiature Omnidirectional Lavalier Microphone - Cocoa
Expressively natural sound, low sensitivity, high max SPL, and interchangeable sweat-resistant frequency caps all make the TwinPlex™ TL45 the perfect companion for professional theater applications. The thin 1.1 mm diameter paintable cable is terminated with a professional LEMO connector and is easily concealed in a costume or wig.
Features:
- The TL45 is ideal for use in theater settings
- Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
- Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
- Best-in-class low self-noise and dynamic range for cleaner audio production
- Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic, nanoscopic coating
- Paintable 1.1 mm cable that is immune to memory effect and kinks
- A single medical-grade spiraling conductor in the cable delivers increased flexibility while built-in reinforcing fibers offer additional cable strength for longevity
- Sound signature: Natural
- Sensitivity: Low
- Colors: Cocoa
- Connectors: LEMO
- Accessories: Available separately
Specifications:
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV (5.62 mV) at 1 kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 μA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter: 1.1 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 13.5 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV (5.62 mV) at 1 kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 μA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter: 1.1 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 13.5 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
