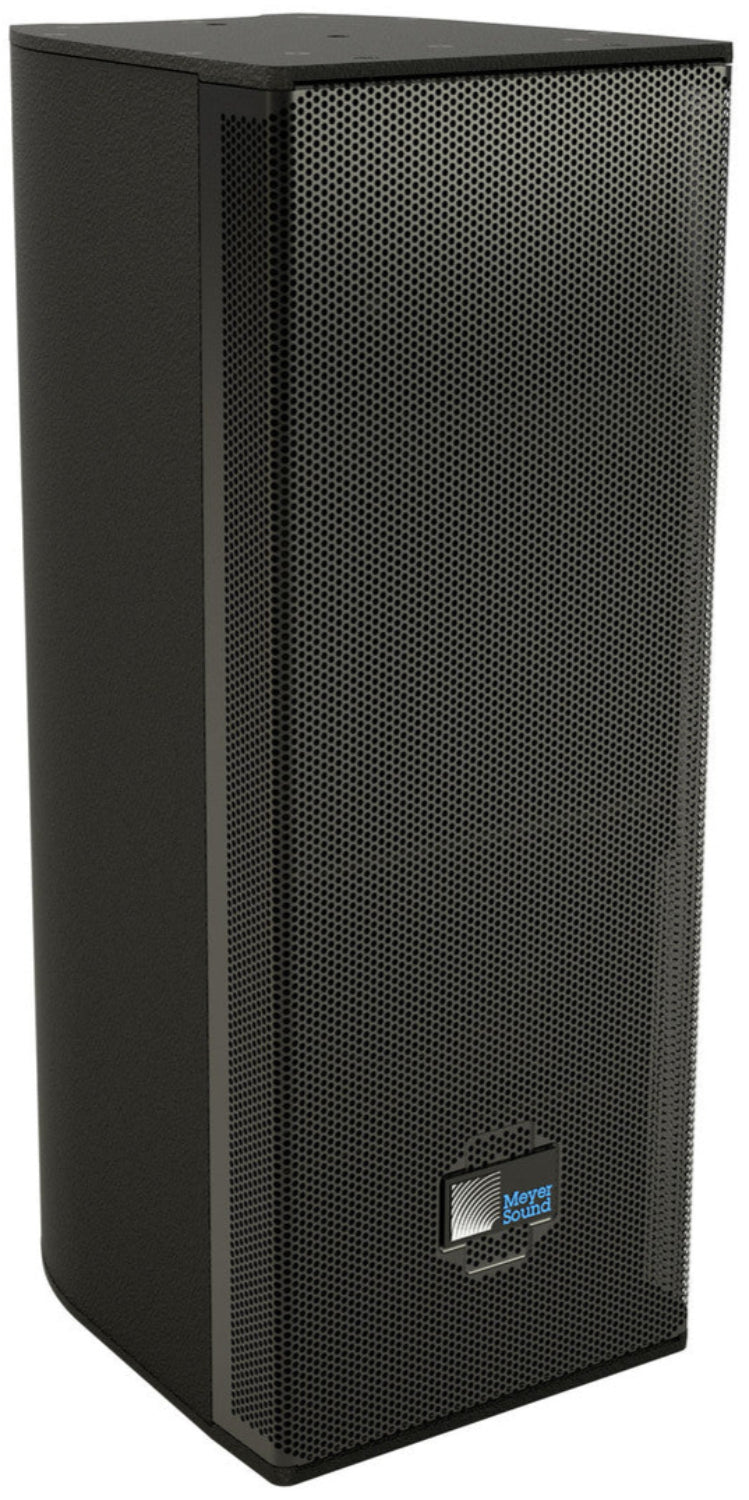

Meyer Sound ULTRA-X23 Compact Broad Coverage Loudspeaker

This item will only be sold in pairs.

Meyer Sound’s ULTRA-X20™ design extends the award-winning, state-of-the-art ULTRA-X40™ point source technology to a smaller version for size- and weight-critical applications. Features include:

• An innovative, highly efficient class-D amplifier that reproduces any
sound source with linearity over a wide dynamic range.

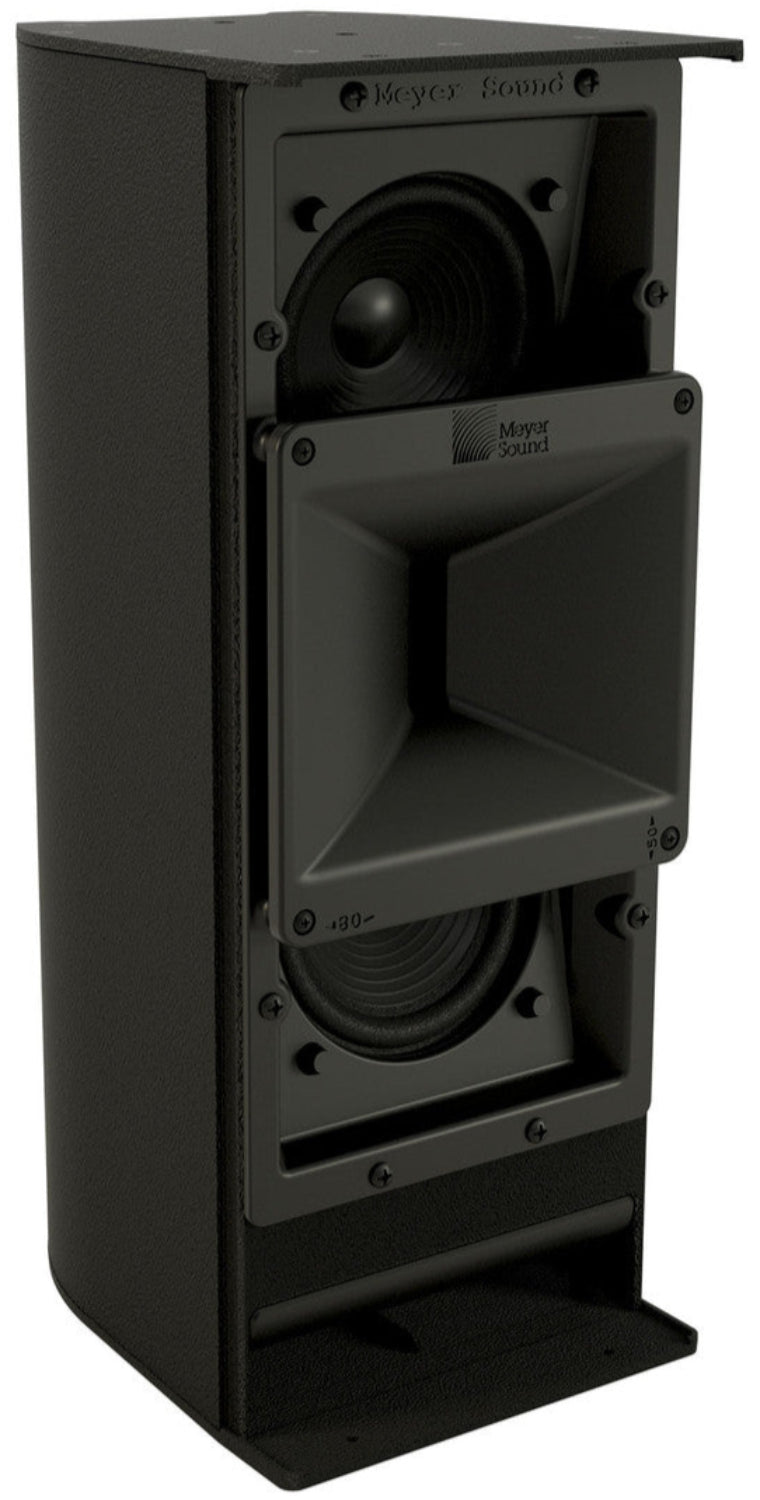

• A concentric driver configuration that has all the benefits of a coaxial
driver, yet none of the disadvantages. In addition, this configuration
supports directional control of frequencies down to 600 Hz.

• A rotatable, extremely well-behaved horn designed for very precise,
even coverage. This horn design, in conjunction with the concentric
driver configuration, delivers the same pattern regardless of
orientation.

The ULTRA-X20 loudspeaker provides high power output, low distortion,
and consistent polar response in a very compact, vented enclosure.

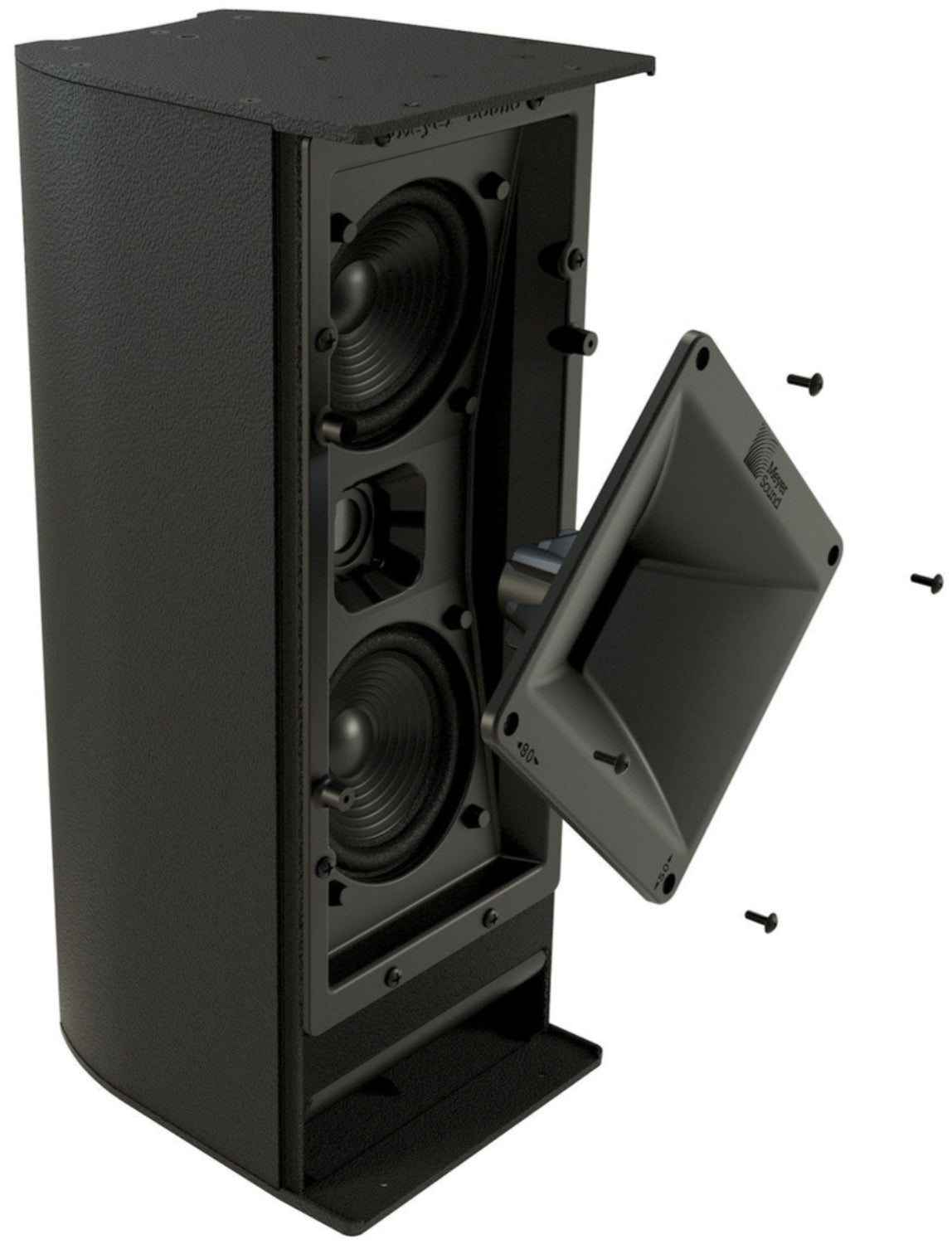

The loudspeaker features two 5-inch cone low-frequency drivers and
one 2-inch diaphragm compression driver coupled with a rotatable
110° x 50° constant-Q horn. A more controlled pattern is available on the
ULTRA-X22™ model, which is fitted with a rotatable 80° x 50° constant-Q
horn. A broader coverage version, the ULTRA-X23™, offers a 110° x 110°
constant-Q horn.

Because of its proprietary, high-frequency horn, the beamwidth remains
consistent within close tolerances in both the horizontal and vertical planes,
and across the horn’s operating frequency range. Uniformly predictable
polar behavior takes much of the guesswork out of system design and
assures optimal system performance.

A proprietary three-channel, class-D digital power amplifier powers the
ULTRA-X20 loudspeaker, which has a total peak power output of 860 watts.
Audio processing includes electronic crossover, correction filters for phase
and frequency response, and driver protection circuitry. Phase-corrected
electronics ensure flat acoustical amplitude and phase response, resulting
in exceptional impulse response and precise imaging.

The amplifier/processing package incorporates Meyer Sound’s
Intelligent AC™, which auto-selects the correct operating voltage,
suppresses high voltage transients, filters EMI and provides soft-start

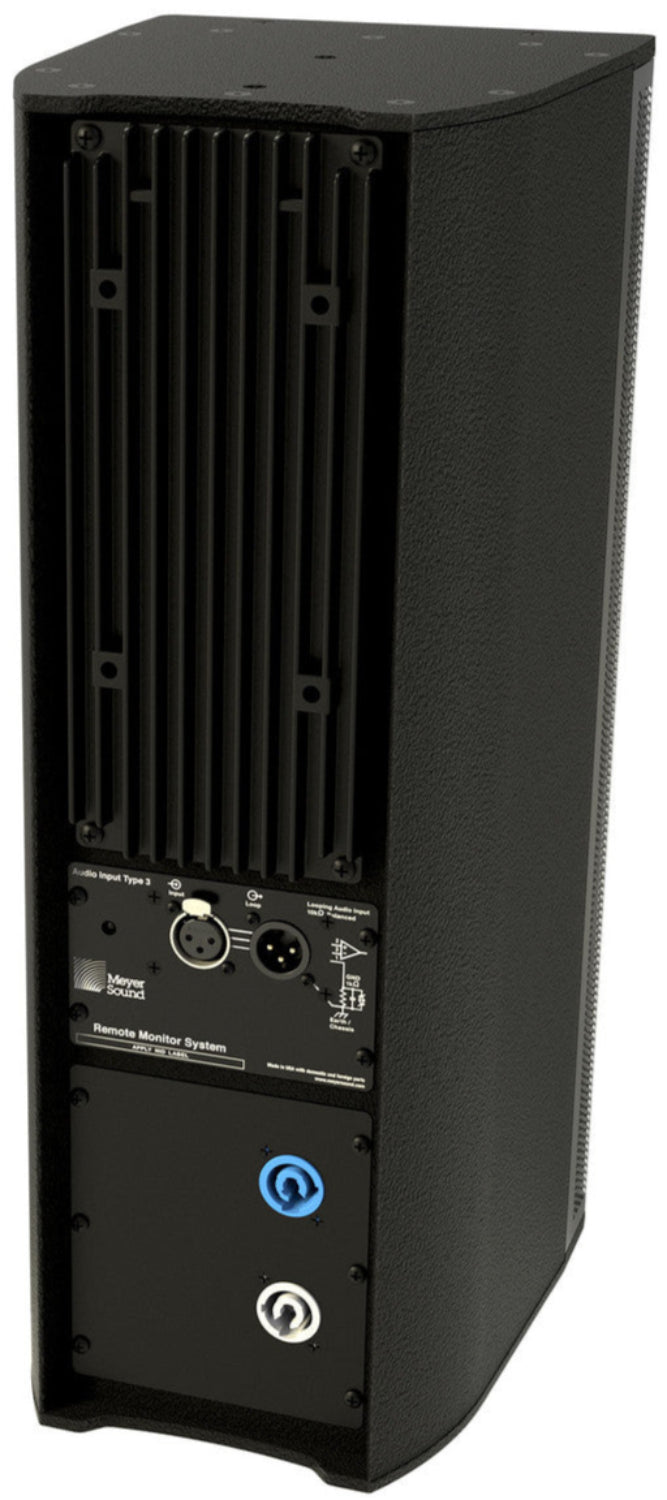

power-up. The ULTRA-X20 cabinet has audio XLR and PowerCON 20 input
and looping output connectors. The digital audio version provides a Milan
Certified format with an etherCON TOP connector and powerCON TRUE1
TOP input and looping output.

Remote monitoring is possible on the analog version via the optional
RMS remote monitoring system module, which in conjunction with the
optional RMServer™ hardware unit, provides comprehensive monitoring of
loudspeaker parameters from a host computer running Compass® Control
Software. The digital version provides integrated monitoring via Compass
Control Software.

Meyer Sound builds the slightly curved enclosure out of aluminum with
a slightly textured black finish. A powder-coated, round-perforated steel
grille provides protection to the front of the loudspeaker. The cabinet
weighs only 27 lbs (12.3 kg).

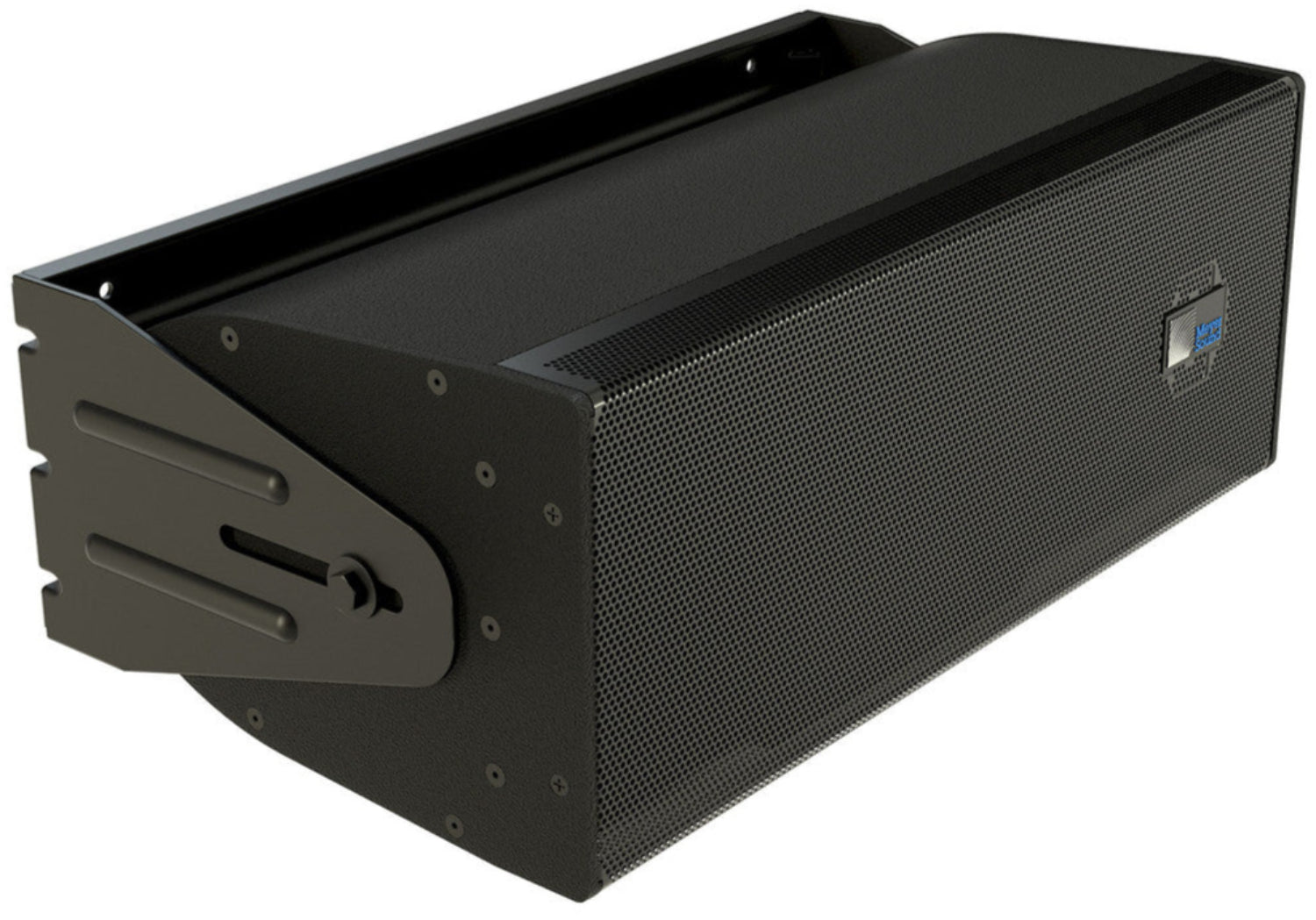

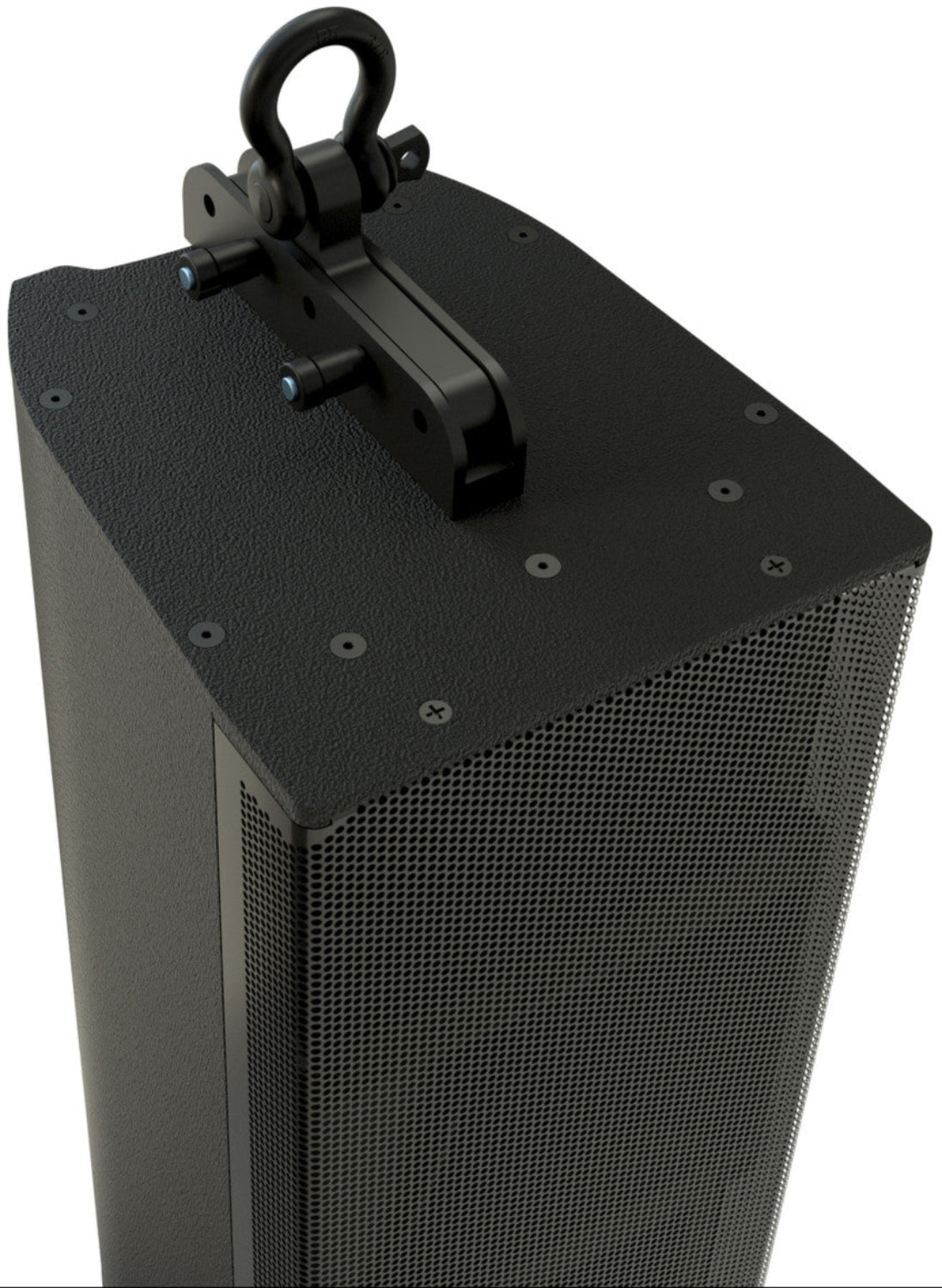

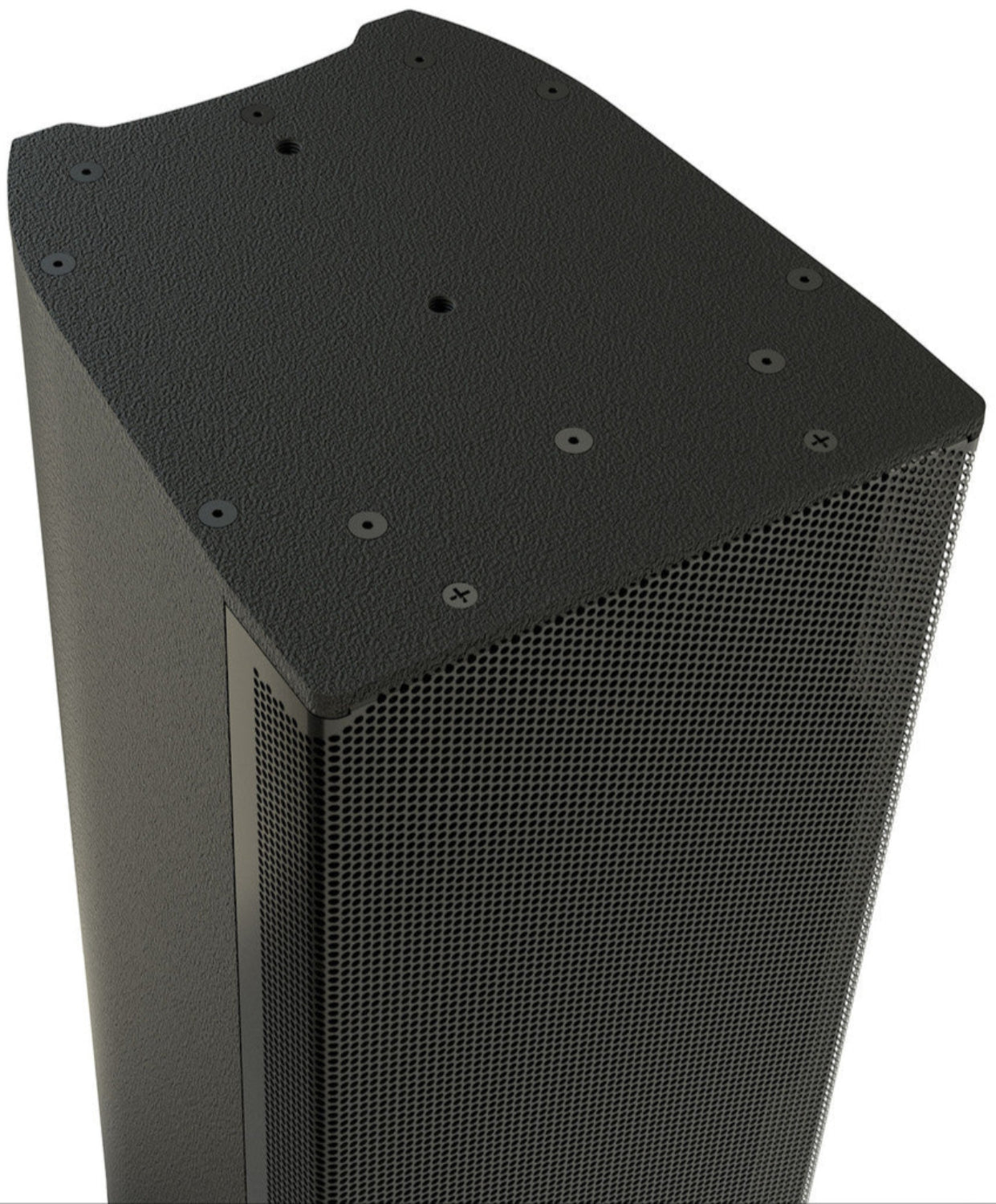

The ULTRA-X20 includes two integral M8 rigging points on each end to
enable a variety of configurations including those requiring pole mounting,
hanging individually from a single point, wall mounting or ceiling mounting.

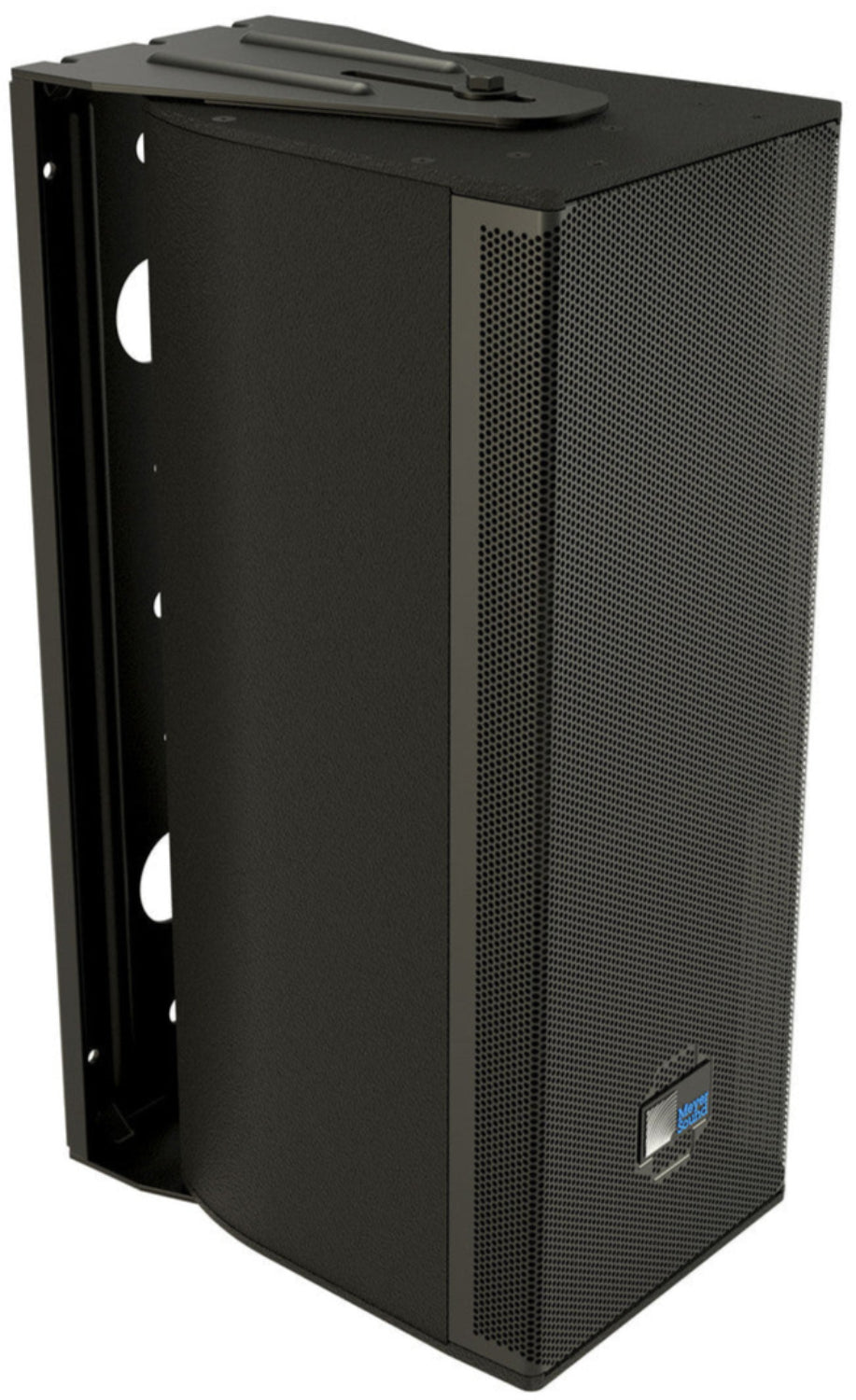

In addition, the ULTRA-X20 includes four M6 threaded holes with 5-inch
by 2.75-inch (127 mm by 70 mm) hole pattern on the rear for use with
third-party wall mounts.

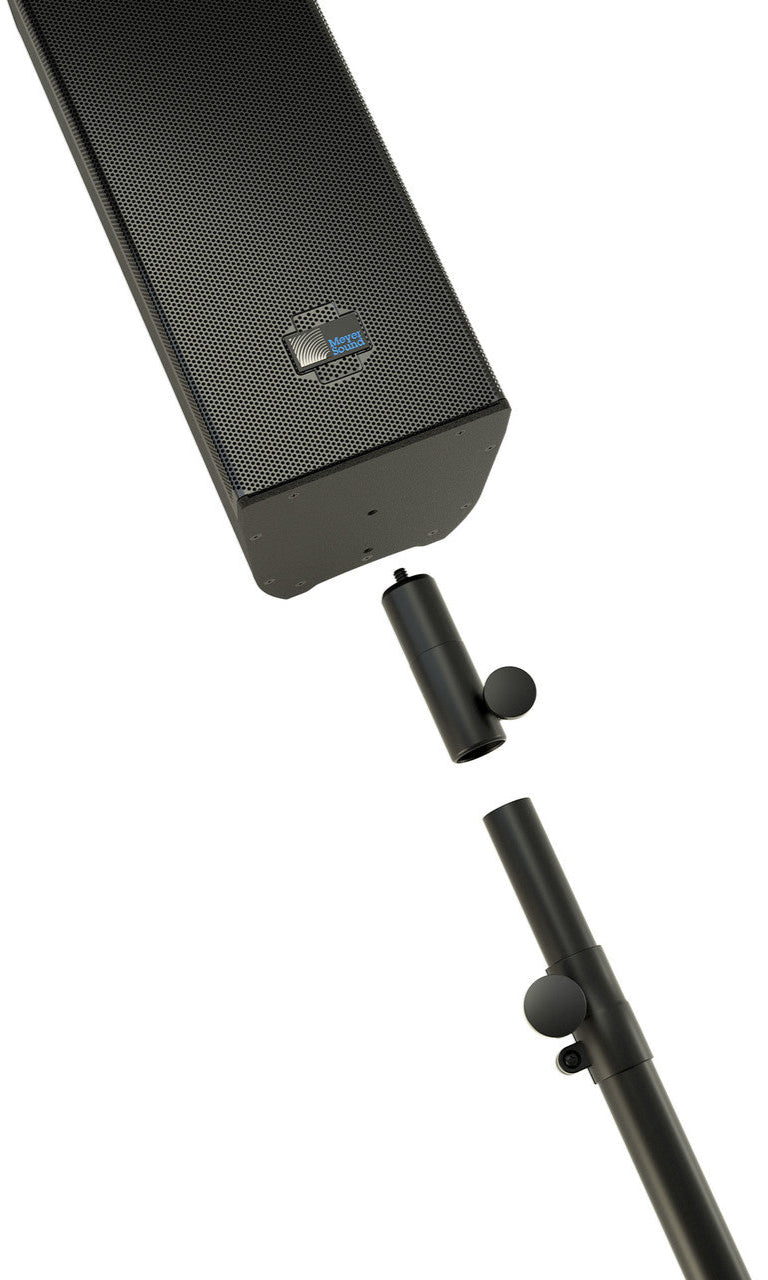

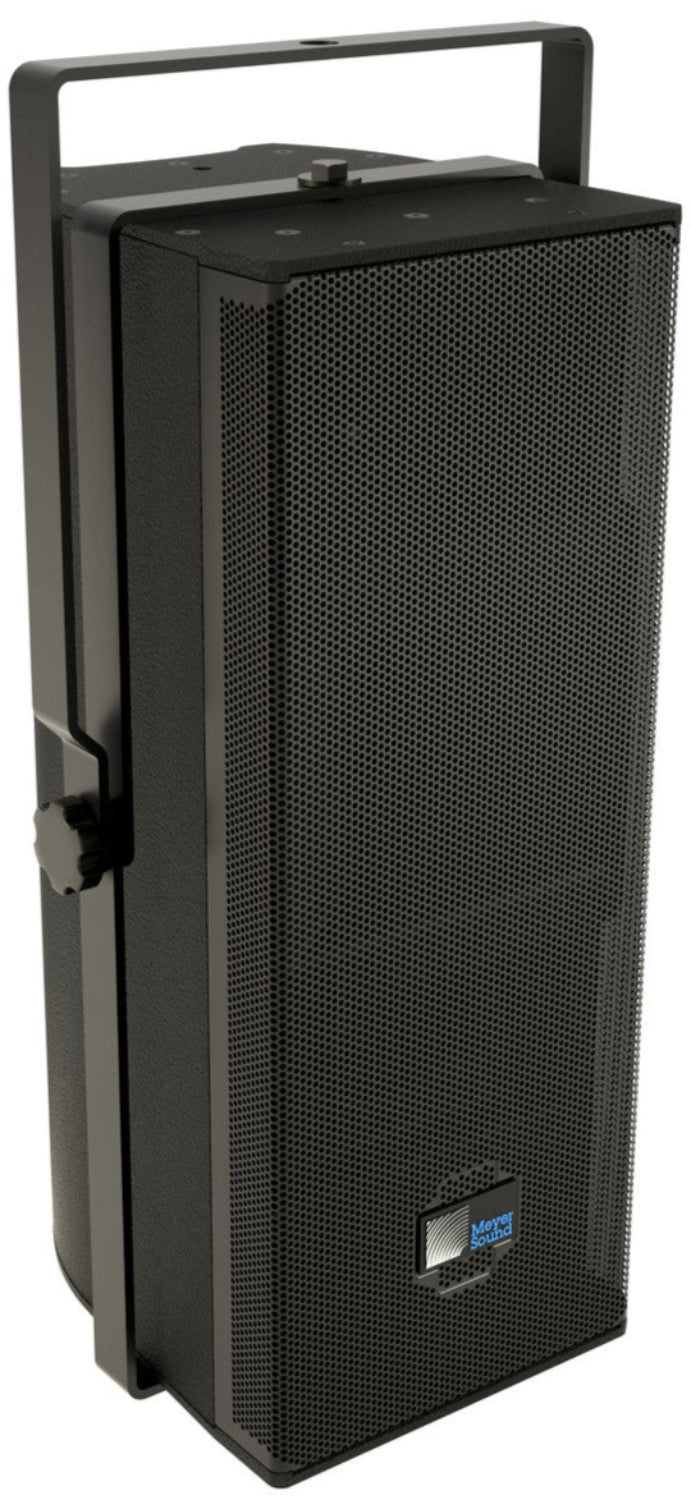

Optional rigging accessories include a 35 mm to M8 pole adapter, a
U-bracket, a yoke, and a pinnable link on a channel that allows the hanging
of one or two units from a single pick-up point. Other options include
weather protection and custom color finishes.

Specifications

Acoustical:

Operating Frequency Range: 0 Hz – 18 kHz

Frequency Response: 65 Hz – 17.5 kHz ± 4 dB

Phase Response: 95 Hz – 18 kHz ±45°

Linear Peak SPL:
128.5 dB with 20 dB crest factor (M-noise)
123.5 dB (Pink Noise)
125 dB (B-noise)

Coverage:

Rotatable horn: 80° x 50°
Crossover: 830 Hz

Transducers:

Low Frequency:
Two 5-inch cone drivers
6 Ω nominal impedance

High Frequency:
One 2-inch diaphragm compression driver connected to a rotatable horn
8 Ω nominal impedance

Audio Input:

Analog Audion Version:

Type:
Differential
Electronically Balanced

Maximum Common Mode Range: ±15 V DC clamped to earth for voltage transient protection

Connectors: XLR 3-pin female input with male loop output.

Input Impedance: 10 kΩ differential between pins 2 and 3

Wiring:

Pin 1:
Chassis/earth through 220 kΩ
1000 pF
15 V clamp network to provide virtual ground lift at audio frequencies

Pin 2: Signal +

Pin 3: Signal -

Case: Earth ground and chassis

Nominal Input Sensitivity: 0.0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music.

Input Level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V peak) into 600 oms to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.

Amplifier:

Type: Three-channel, Class-D
Total Output Power: 860 W peak
THD, IM, TIM: 0.02%
Cooling: Convection

AC Power:

Connectors:
powerCON 20 input with loop output;
powerCON TRUE1 TOP with loop output on digital and weather-protected units

Automatic Voltage Selection:
90–265 V AC
50–60 Hz

Safety Rated Voltage Range:
100–240 V AC
50–60 Hz

Turn-on and Turn-off Points:
90 V AC turn-on
no turn-off; internal fuse protection above 265 V AC

Current Draw:

Idle Current:
0.15 A rms (115 V AC)
0.13 A rms (230 V AC)
0.16 A rms (100 V AC)

Maximum Long-Term Continuous Current (>10 sec):
0.9 A rms (115 V AC)
0.5 A rms (230 V AC)
1.1 A rms (100 V AC)

Burst Current (<1 sec):
1.6 A rms (115 V AC)
0.8 A rms (230 V AC)
1.8 A rms (100 V AC)

Maximum Instantaneous Peak Current:
3.5 A peak (115 V AC)
1.8 A peak (230 V AC)
4.1 A peak (100 V AC)
Inrush Current: <20 A peak
