• 939-002154

COMPATIBILITY AND CERTIFICATIONS

• See www.logitech.com/support/logi-dock-flex-compatibility for the latest certification and compatibility updates.
• Logitech CollabOS platform
• Logitech Sync management platform

PORTS

• Front (User-Facing)
  • 2x USB-C (2x7.5w)
  • 1x USB-A (7.5w)

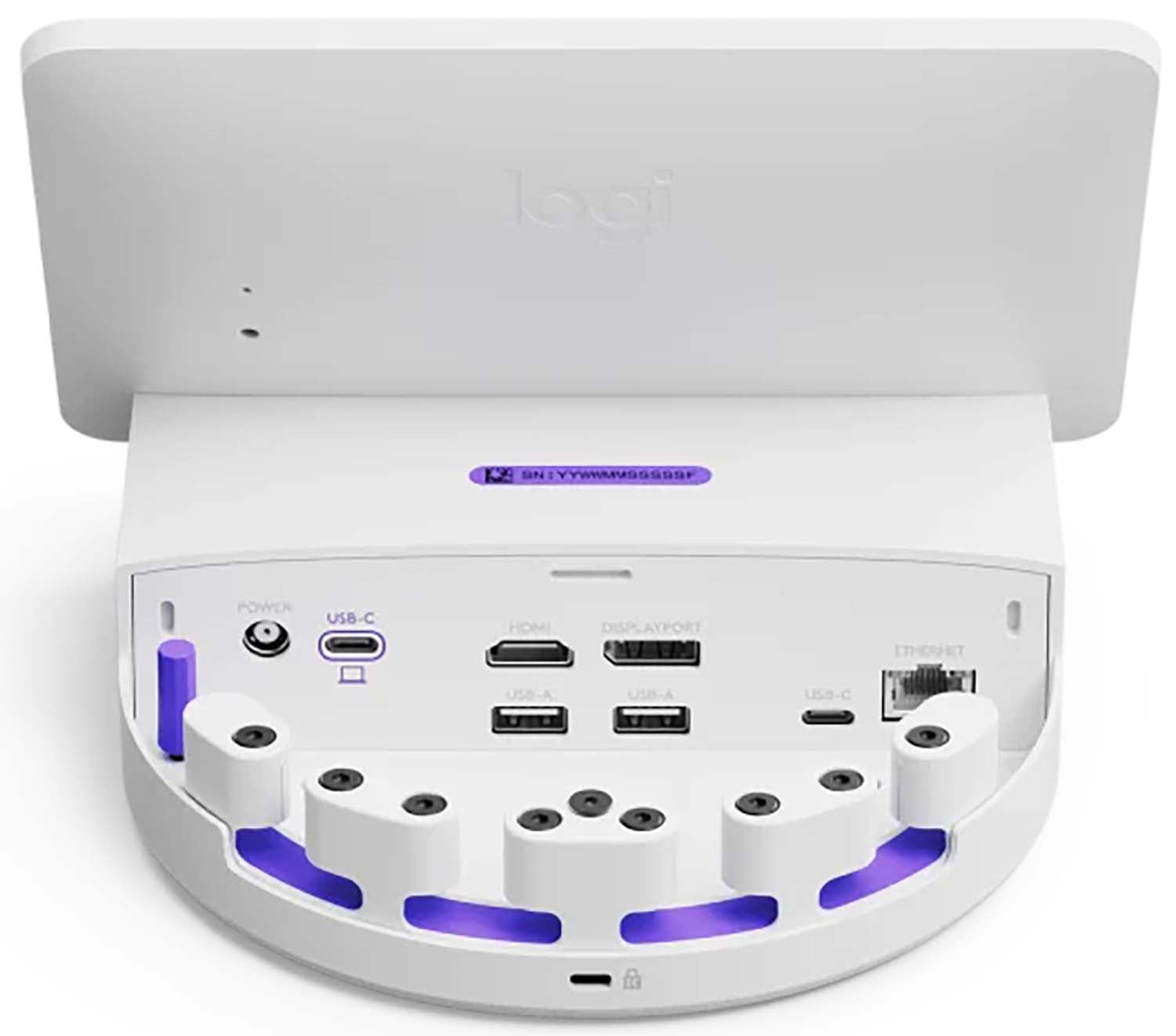

• Rear (IT-Managed)
  • 1x USB-C (7.5w)
  • 2x USB-A (2x7.5w)
  • 1 x HDMI v. 2.0 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)
  • 1 x DisplayPort 1.4 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)
  • 1x RJ45 Ethernet 10/100/1000
  • DC Power Connection
  • 1x USB-C laptop connection, up to 100 watt charging
  • See www.logitech.com/support/logi-dock-flex-compatibility for the latest certification and compatibility updates.

Screen

• Size: 203.2 mm diagonal
• IPS (In-Plane Switching)
• LCD Panel with LED Backlighting
• Resolution: 1280 x 800 resolution
• Touch: Capacitive, 5 points multi-touch
• Brightness: 300 nits
• Contrast: 800:1
• Anti Fingerprint: Oleophobic coating
• Viewing angle: 85 degrees (U/D/L/R)
• Position angle: 60 degrees

APPLIANCE PORTS AND INTERFACES

• Ethernet: 10/100 Mbps (shared via internal two port Ethernet switch)
• WiFi: 802.11a/b/g/n/ac
• Bluetooth 5.0 (inactive, reserved for future use)
• Ambient light sensor

General Specifications

• Managed docking station
• Advanced Cable Retention and Security
• Kensington Lock slot

Environmental

• Operating Temperature: 0 to 40°C
• Operating Humidity: 10 to 90%
• Stored Temperature: -40 to 70°C
• Stored Humidity: 0 to 95%

Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Key Protection: Arm TrustZone, RPMP
• Device Security: Kensington Lock

Sustainability

• Plastics: 36% certified post-consumer recycled plastic ¹Excluding accessories and packaging. Measured by weight.
• Low Carbon Aluminimum
• Paper Packaging: FSC™-certified
