LIGHTWARE MX-16x16DVI-Plus Matrix Switcher

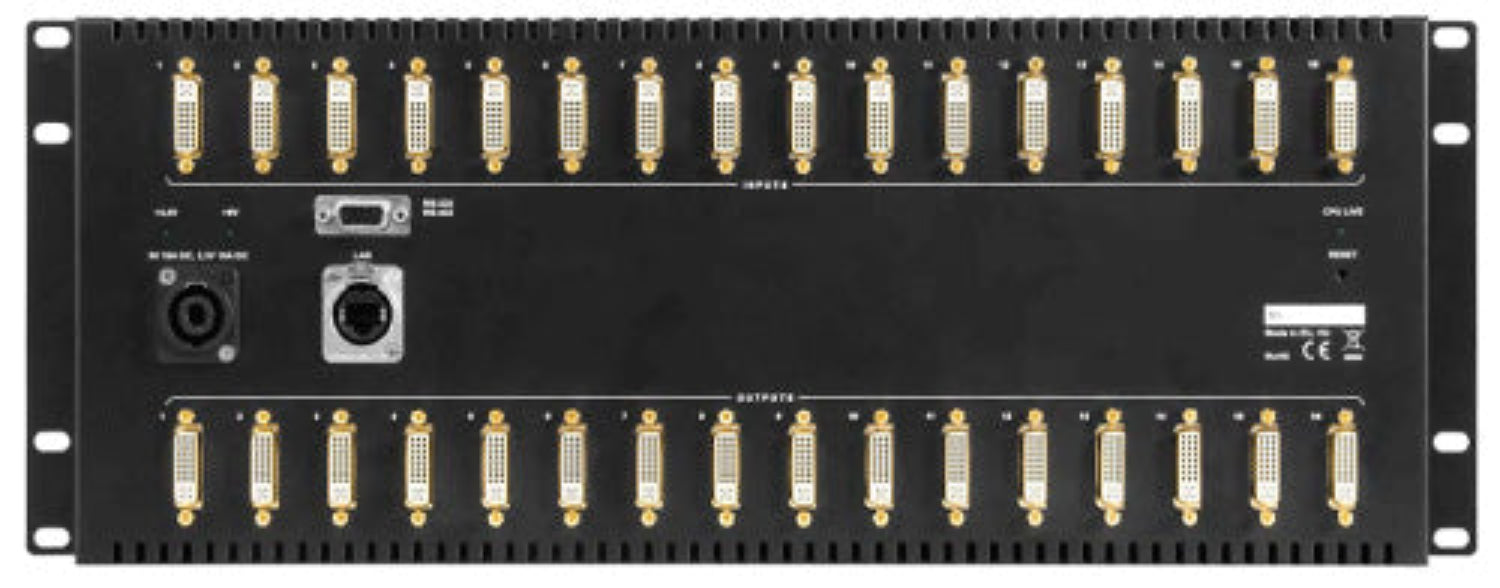

The 7 inch depth, 4 RU high body and low noise fan design makes it ideal for many space and noise sensitive applications. The frames incorporate Lightware's Advanced EDID Management function. The user can emulate any EDID on the switcher's inputs independently, read out and store any attached monitor's EDID in 100 internal memory locations, upload and download EDID files using Remote Control software. The crosspoint switcher can be controlled through a 9-pole D-sub connector via RS-232 or RS-422 protocol, and IP based Ethernet connection including web access through a Neutrik EtherCON connector which ensures a robust connection at all times.

Features

• No switching latency - zero frame delay
• Routing up to 16x16 DVI 1.0 signals
• Routing HDMI 1.3 signals (with embedded audio) without HDCP
• 1920 x 1200 or 2048 x 1080 maximal resolution
• Gold plated PCB boards and connectors
• Built-in website

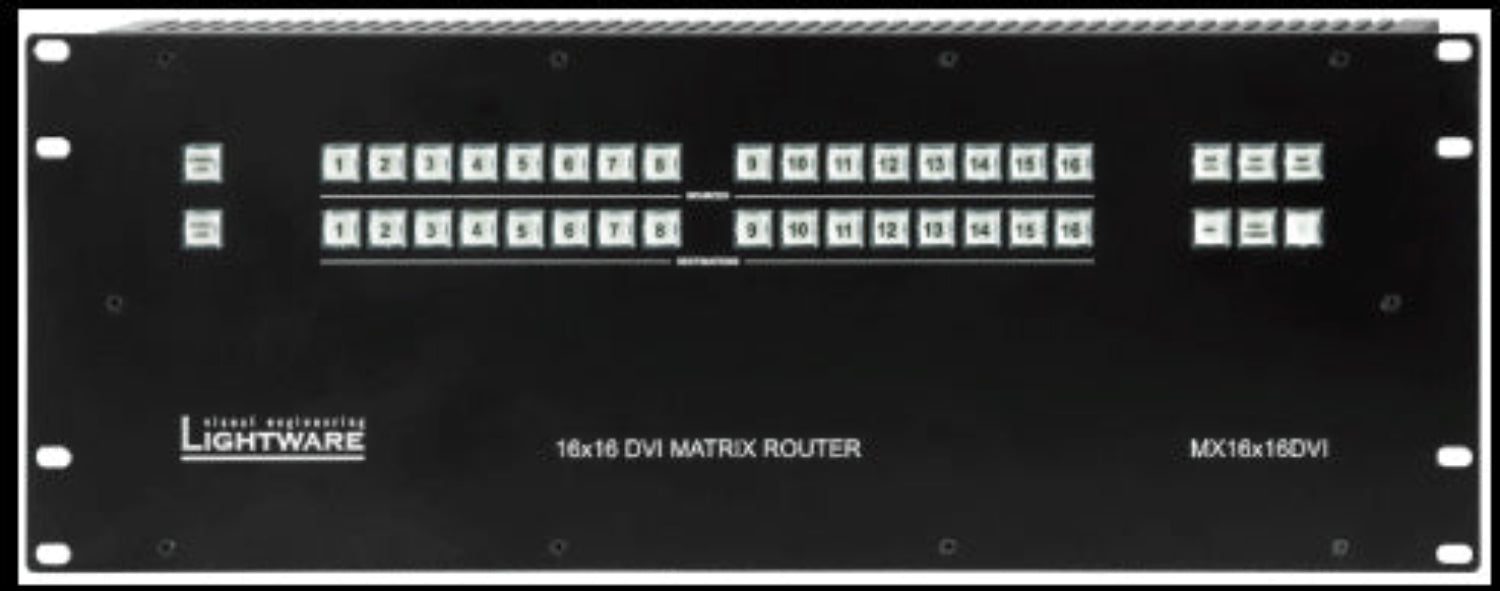

• Front panel buttons control
• Advanced EDID Management
• RS-232 or RS-422 and Ethernet control
• Vista Spyder and Barco Encore compatibility
• Full crosspoint configuration (save and reload) as preset (32 presets)
• Built-in power supply
