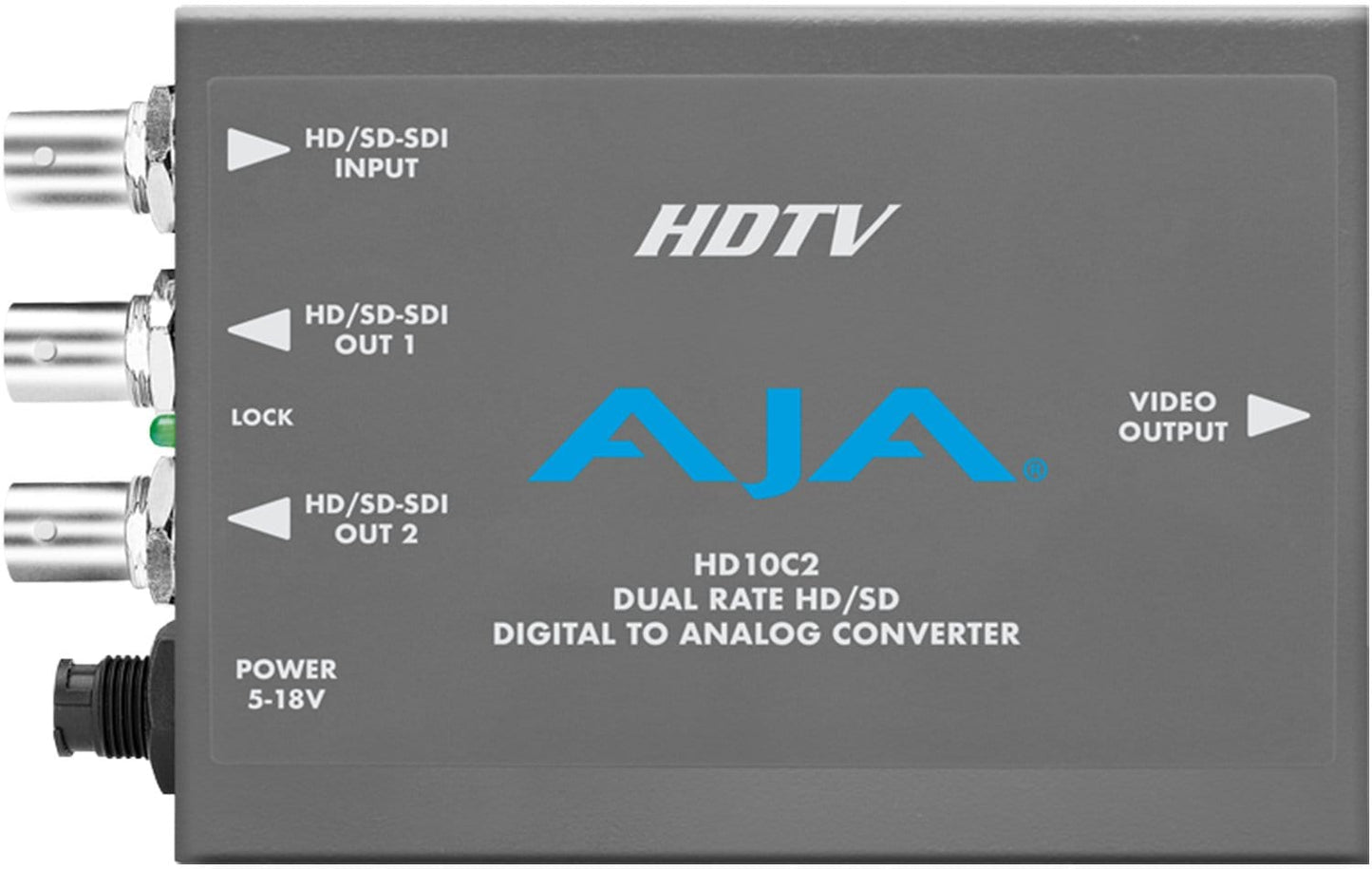

AJA HD10C2 Video HD SDI to Analog Converter
The HD10C2 is a high-quality 10-bit HD converter that’s “dual-rate”—and works with both HD-SDI and SD SDI inputs. For HD-SDI inputs, the HD10C2 outputs full bandwidth HD component or “VGA” style RGBHV video. For SD-SDI inputs, component or composite SD outputs are supported. When connected to a multi-format monitor like the Sony 20L5, the HD10C2 will automatically provide an image from almost any HD or SD input format. The HD10C2 also features 2 equalized HD/SD SDI outputs.
Features:
- High-Quality 10-bit Dual Rate HD/SD D/A Conversion
- Full Bandwidth HD Analog RGB or YPbPr Output (HD input)
- Component/Composite SD Output (SD input)
- 2 Equalized Loop-Thru HD-SDI/SDI Outputs
- 5 wire RGBHV VGA style HD output
- HD Sync Selectable Between Bi-level and Tri-Level
- 4:3 Safe Area Graticule (HD)
- Uses universal input +5V power supply AJA model DWP-U-R1 (included)
- External Dip Switch Configuration
Specifications:
- Formats:
- (HD) 1080i 50, 59.94, 60
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30 (displayed as Interlaced)
- (HD) 1035i 50, 50.94, 60
- (HD) 720p 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- Automatic Configuration
- Inputs:
- HD-SDI or SDI SMPTE 259/292/296, 10-bit, 1 x BNC
- Input Equalization: 125 meter 1694 cable
- Outputs:
- (HD) YPbPr, RGB (SMPTE-274)
- (SD) YPbPr (SMPTE/N10, Beta RGB, Y/C, NTSC/PAL)
- 13W3 wideband analog output connector (cable supplied)
- HD-SDI/SDI equalized loop through, 2 x BNC
- Sync:
- (HD) Tri-level or bi-level, H/V drive
- (SD) normal SD sync
- Frequency Response:
- (HD) Y +0, -.5db to 30 mHz, C +/- .25db to 13 mHz
- (SD) Y +/- .25db to 5.5 mHz, C +/- .25db to 2.5 mHz
- User Controls:
- External dipswitch
- YPbPr/RGB
- Component/Composite (SD)
- SD Pedestal
- SD Blanking
- HD 4:3 Graticule
- SD NTSC/NTSC-J
- Sync on Video on/off
- Size (w x d x h): 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
- Power: +5-18VDC regulated, 4 watts, power supply required, included with purchase
- Environment:
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
