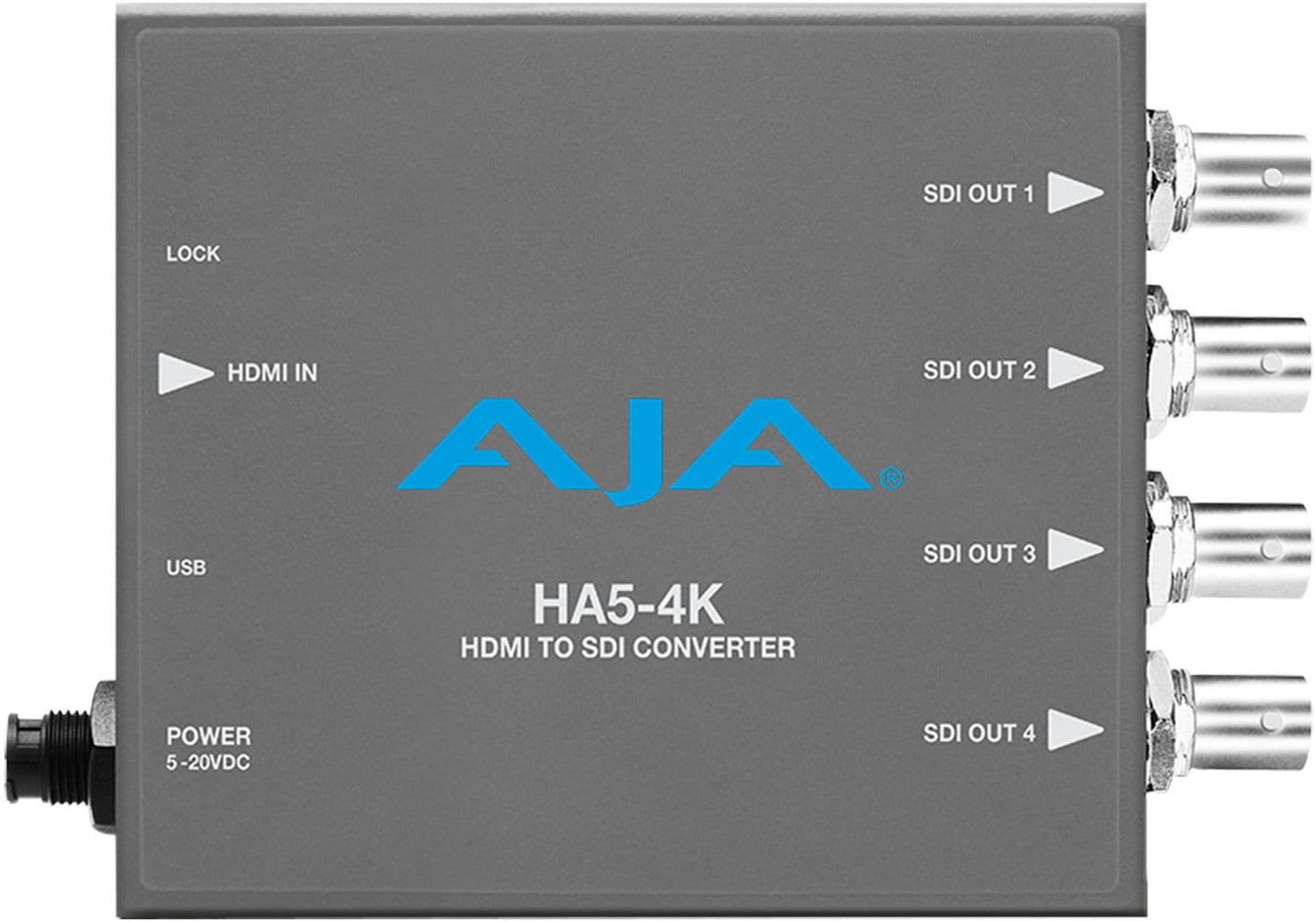

AJA HA54K Video Converter 4K HDMI to 4 4K 3G-SDI

AJA HA54K Video Converter 4K HDMI to 4 4K 3G-SDI

AJA’s HA5-4K Mini-Converter provides high-quality conversion of HDMI to 4K SDI with 4x 3G SDI outputs. HA5-4K allows conversion of HDMI video from DSLRs, mirrorless cameras, action cameras, or prosumer 4K video cameras to 4K SDI for use in professional workflows. HA5-4K is also capable of analyzing HDR info frame data coming in over HDMI when used with AJA Mini-Config software.

Features:

• Convert HDMI 2.0b to Quad-3G, 4K/UltraHD 60 fps at 4:4:4, 4:2:2, and 4:2:0
• Supports quadrant (square division) and 2SI (two sample interleave) 4K/UltraHD SDI mapping
• EDID Emulation
• 4x 3G-SDI outputs
• HD resolutions supported
• HDR Infoframe analysis with AJA Mini-Config
• Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
• Embedded audio pass-through of E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC) immersive sound
• Configure via USB port and supplied AJA Mini-Config software on PC/Mac
• Uses 5-20 VDC power (DWP-U-R1 universal power supply included)

Specifications:

• Video Formats:
  • (4K) 4096 x 2160p
  • (UltraHD) 3840 x 2160p
  • (2K) 2048 x 1080p
  • (HD) 1920 x 1080p
  • (HD) 1920 x 1080i
  • (HD) 1280 x 720p
  • (SD) 720 x 576p
  • (SD) 720 x 576i
  • (SD) 720 x 480p
  • (SD) 720 x 480i
• Video Input Digital:
  • 1x HDMI Type A connector, HDMI v2.0
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
  • HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0a
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 720 x 576p 50
  • (SD) 720 x 576i 25
  • (SD) 720 x 480p 59.94
  • (SD) 720 x 480i 29.97
• HDCP Decryption:
  • Not supported. By definition, SDI outputs are unencrypted.
• Video Output Digital:
  • 4x 3G-SDI BNC, SMPTE-259/292/424
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 10-bit
  • Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
  • 4x 3 Gb SDI (Level A or B-Dual Link)
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
  • 4x 1.5 Gb SDI
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 3 Gb SDI (Level B-Dual Stream)
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B-Dual Link)
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p** 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94
• Audio Input Digital: HDMI embedded audio, 24-bit, 8-Channel
• Audio Output Digital: SDI embedded audio, 24-bit, 8-Channel
• User Interface: USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows
• Size (w x d x h): 5.76" x 4.02" x 0.90" (146.31 × 102.11 × 22.86 mm)
• Weight: 0.6 lbs. (0.3 kg)
• Power:
  • 5-20VDC regulated, 10 watts, power supply required, included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input
• Environment:
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
